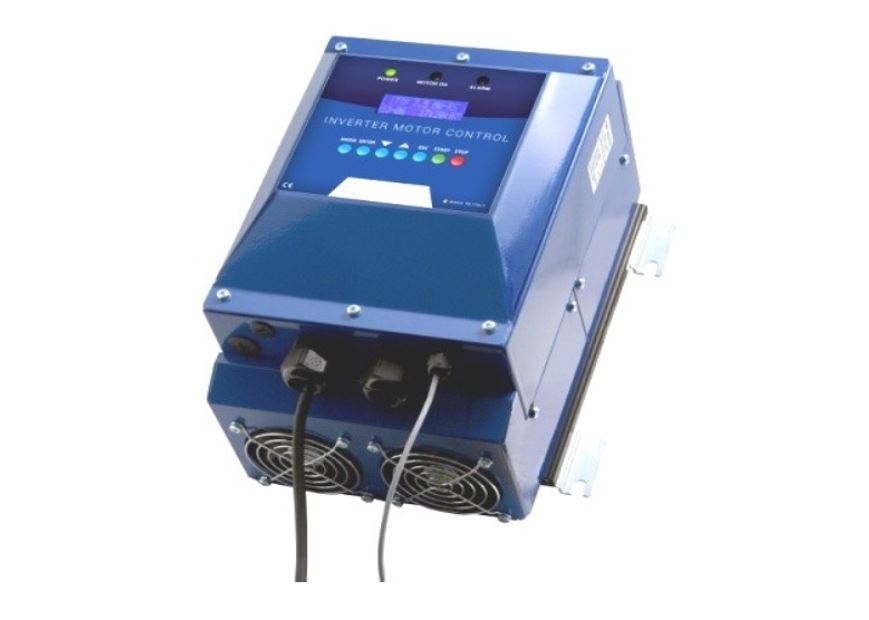

Industrial Range Constant Pressure Inverter 7.5kW 3 Phase

CALL US: +44(0)1473 462046
Part Number
CI1C-CLFCP750-1C
Brand
Geoquip Water Solutions
+

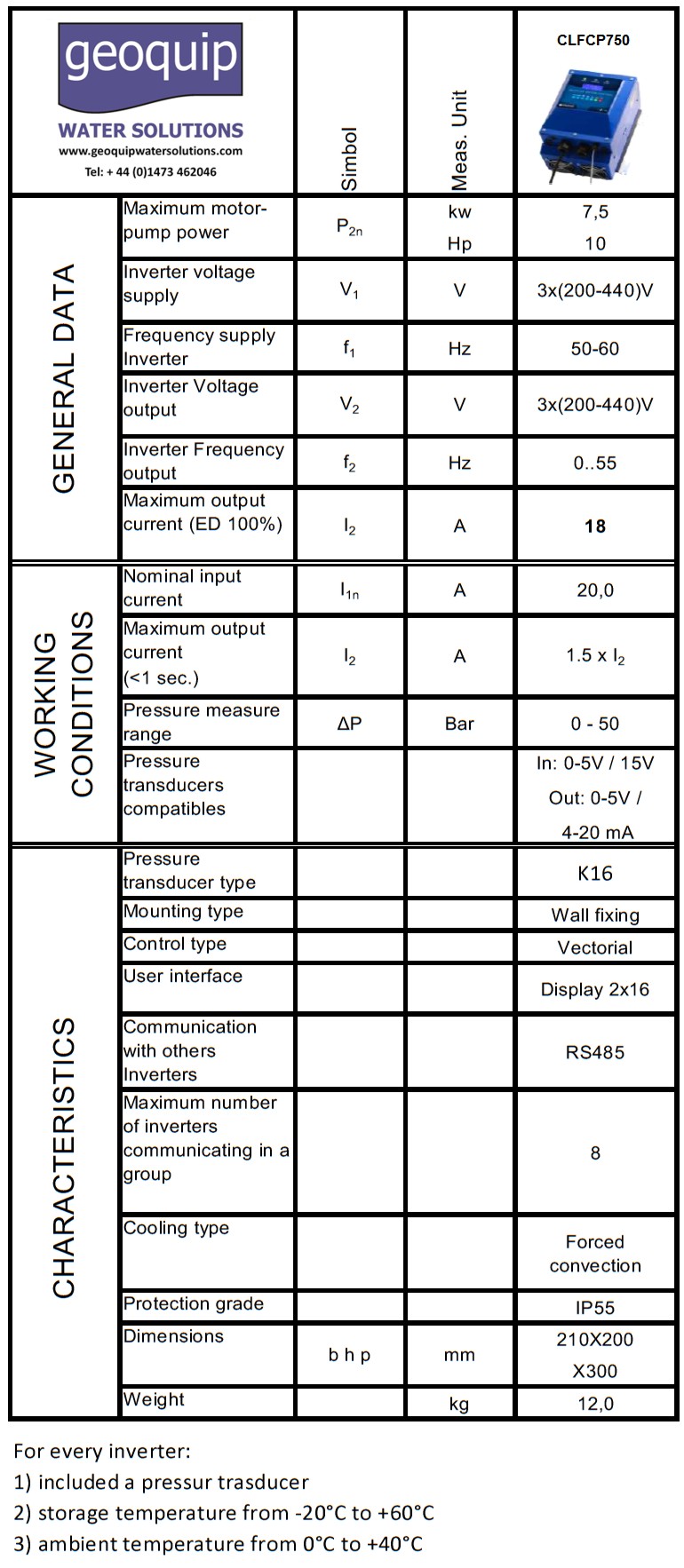

Key Specifications

  • three phase input and three phase output 3x(200-440)V
  • Maximum motor-pump power 7.5kW
  • Maximum output current 18A
  • Output frequency from 0 to 55 Hz
  • Input frequency from 50 to 60 Hz
  • Pressure measure range from 0 to 50 bar
  • Communication with others inverters by RS485
Information

These inverters are used with a centrifugal pump driven by a single phase induction motor and a pressure transducer, which is provided & already connected to the inverter, that detects the pressure of the pumped system. These replace all traditional systems such as pressure switch or flow switch and large pressure vessels which are no longer necessary.

Soft starts and stops guarantee a low current absorption which extends the motor life, provides quieter working and reduces water hammer. The logic control unit protects the system from the no flow and dry-running conditions or other dangerous electrical or mechanical conditions.
