Max Flow 3.0m3/hr F Type

Max Flow 3.0m3/hr F Type
Zoom  Zoom
Our Price:  CALL US: +44(0)1473 462046(Exc. 20% VAT)
+
Pump:

Part Number:  FP4B005
Pump Size:  4" Pump
Max Flow:  3.0m3/hr
Max Head:  360m


  4" Floating Impeller Submersible Borehole Pump
Max flow 3.0m3/hr    Max head 369 m

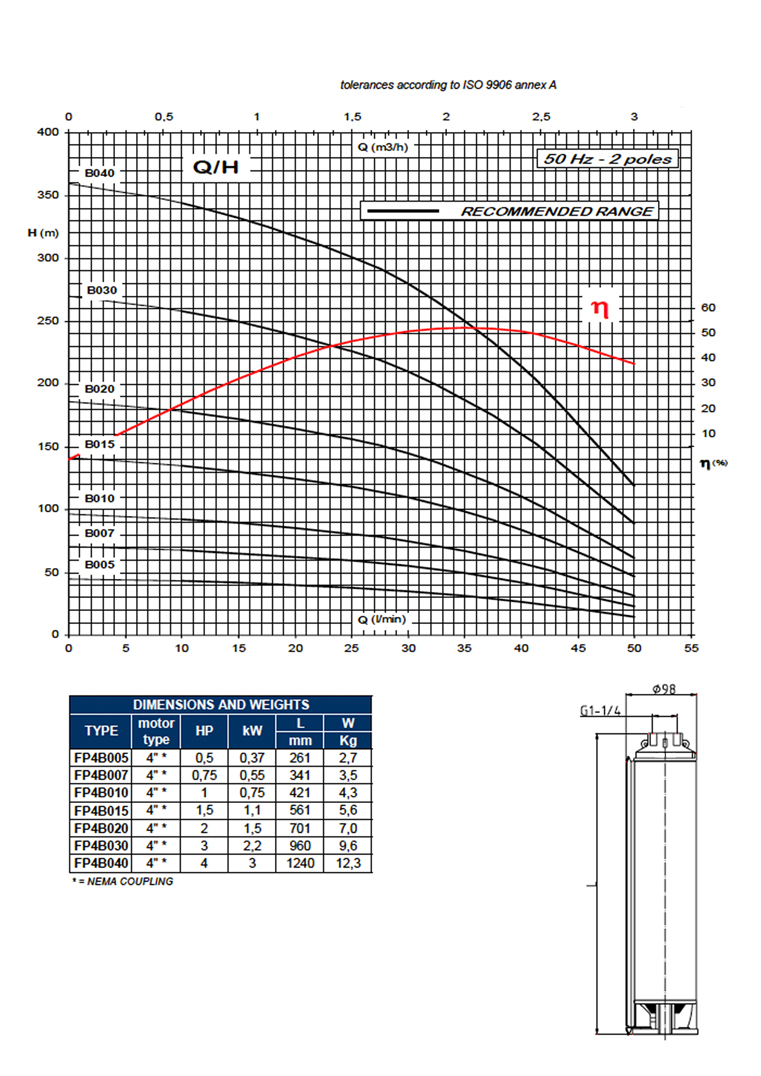

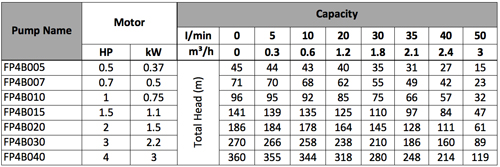

Performance Table

Applications
Domestic and Industrial water supply, Fire-fighting systems, Pressurising water systems, Irrigation, Process Plants

Materials
AISI 304 stainless steel for top outlet and bottom support, external jacket, diffuser casing, screen and cable guard
AISI 420 stainless steel for shaft
AISI 316L/304 stainless steel for coupling
Impellers, diffusers and bushes are fibre glass reinforced PA66 .

Operating data
Max. water temperature 35'C
Max. sand content: 185g/m3
Max startings per hour: 15
Min. recommended head of water above pump suction: 1m
