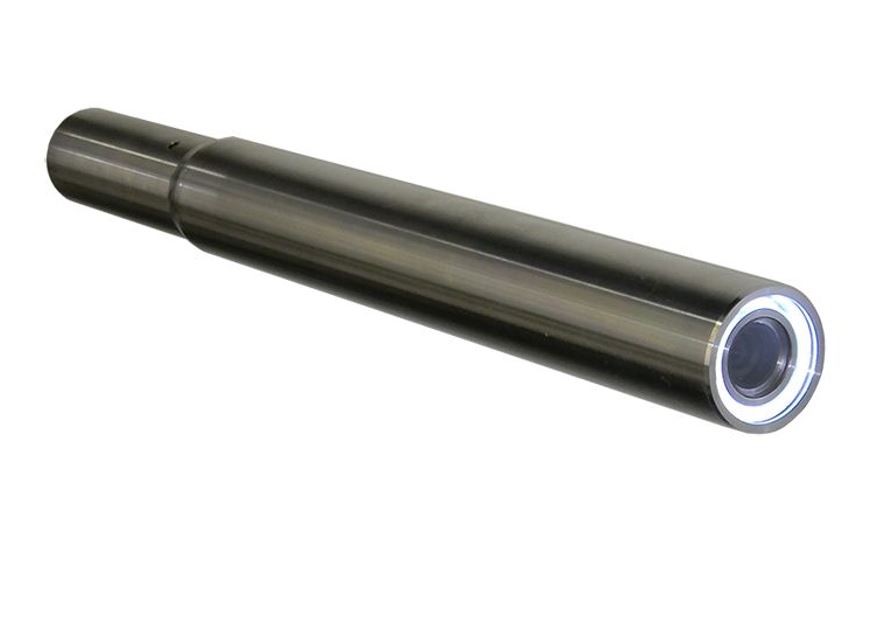

The SC-166 downhole camera is designed for water wells, boreholes and verical shafts for 2" to 10" (5cm to 25cm) well diameters. The SC-166 well camera system comes equipped with a protective carry case provided for storage, adjustable centering bands, and a cable head protector.
The SC-166 will work with all R-CAM 1000 and R-CAM 1300 systems. Simply disconnect the excisting camera and utilize the SC-166 for smaller diameter holes or monitor wells. The robust 304 stainless steel housing is designed for rugged applications. The SC-166 can be sold as an accessory camera to existing systems, or as a cost effective packaged solution.
- Camera Diameter: 1.66" (4.22cm) O.D.
- Overall Camera Length: 16.5" (42cm) Housing: Stainless Steel
- Down View ONLY
- Lens: BK-7 glass
- Power supply: Portable 12VDC battery pack and charger
- Total Camera Weight: 9 Ibs (4.1kg) P
- Pressure Rating: Pressure tested and waterproof to500 psi
- Scanning System: Downhole greater than or equal to 330 TVL (both NTSC and PAL)
- Operating Temperature: 0° to 50°C (32° to 122°F) Recorder: Records onto a 12 VDC DVDR (please specify NTSC or PAL at time of order)
- LED lighting: High intensity, long life, shock proof LED lighting
When applied to R-CAM system;
- Depth Counter: On-screen depth display measured in feet and tenths, or meters.
- Monitor: 7" LCD colour monitor with sunscreen viewing hood
- winch, Reel, Motor and Cart: 12VDC electric powered, variable speed reel for raising and lowering camera in well. All parts are mounted on a small, two-wheeled cart with extendable 36" boom.
INSTRUCTIONS WHEN RETURNING CAMERAS OR SYSTEMS FOR SERVICE / REPAIR
Please read and complete the information below so we can review your returns enquiry.
Please provide as much information about the faults encountered and the events that lead up to them so that our Technician can make the repair evaluation. If no fault description is provided or there is insufficient information then delays may be incurred with the work.
It is important that the fault description is enclosed even if we have been previously informed.
Note: Be sure to save any videos before sending your equipment to Geoquip. Any data may be lost during the service procedure, we are not responsible for any loss of data.
GOODS MUST BE APPROPRIATELY PACKED. ON RECEIPT THEY WOULD BE CHECKED FOR DAMAGE.
| Goods from UK | Goods from EU / Overseas |
| Return collection (if required) Geoquip can arrange for the collection of the equipment. A charge in accordance with our standard carriage charges would be added to the repair invoice. |
If you send goods from outside the European Union a Proforma
invoice must accompany the goods.
Required information on invoice. - Type of instrument
- Serial number
- The text “Goods for repair—temporary importation to UK”
- Suitable value of goods (see below)
The following information should be included on the commercial invoice when any camera components or systems are returned for repair. Return and Repair to Manufacturer CPC Code - 21 00 004 Commodity code: 90158020 Value for Insurance Purposes Only - Use a value of £20.00 / €20.00 / US$20.00 per item. Each delivery is charged by fees such as: - Terminal fee
- Customs declaration
- Transport from the port to Geoquip Service location
- Forwarder’s administration at cost
Please Note that these ALL FEES incurred will be invoiced at cost
+ 10%
|
|
Min 1 HOUR “Troubleshooting & Handling” fee will be charged to all service orders.
Hourly technician fee available on request (Hourly rate subject to change without notice)
|
|
Return address: Geoquip Water Solutions Ltd,
Unit 7 Sovereign Centre,
Farthing Road Industrial Estate,
Ipswich, Suffolk,
IP1 5AP, UK
Tel: +44(0)1473 462046
|
PLEASE COMPLETE ALL THE FIELDS BELOW SO WE HAVE ALL THE RELEVENT INFORMATION TO REVIEW YOUR RETURNS ENQUIRY, THANK YOU.
