SALE

Acoustic Alarm Box IP54 - FLASH SALE

£10.00
Part Number
CB1A-25335-AB
+

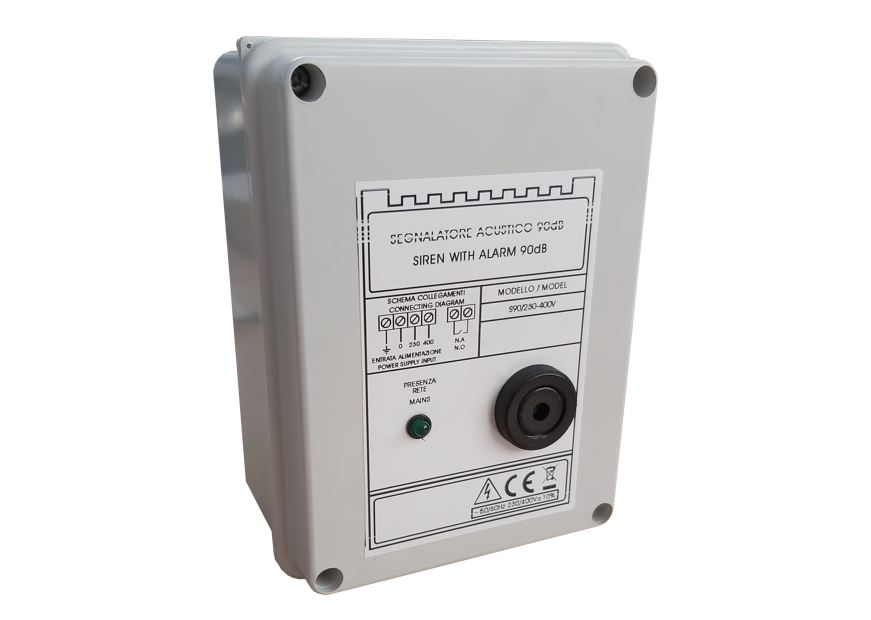

Acoustic Alarm Box protected to IP54.

2 versions available;

  • 24V
  • 230-400V

*Offer while stocks last, subject to reduced warranty period, terms apply.

FLASH SALE

Information

Acoustic Alarm Box protected to IP54 - FLASH SALE.

2 versions available;

  • 24V
  • 230-400V

General Characteristics

  • Electronic acoustic;
  • Power supply 24V... CB1A-25335-AB
  • Power supply ~ 50/60Hz 230/400V ± 10%... CB1A-25336-AB
  • Very low voltage inputs for alarm contacts (NO);
  • Main pilot light;
  • Sound pressure 90dB;
  • Board protection fuse;
  • Thermoplastic box;
  • Output with cable holder
  • Protected to IP54

Operating Conditions

  • Ambient temperature -5 to +40ºC;
  • Relative moisture 50% with a max temperature of 40ºC.

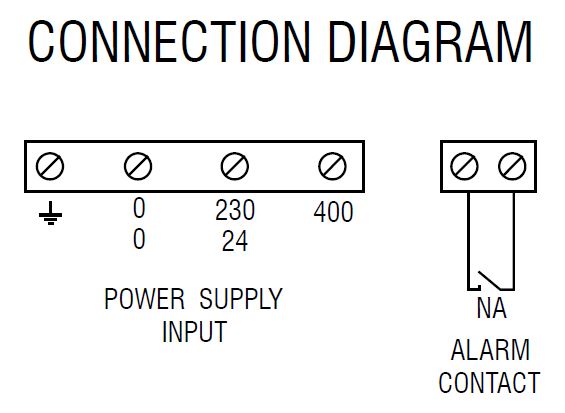

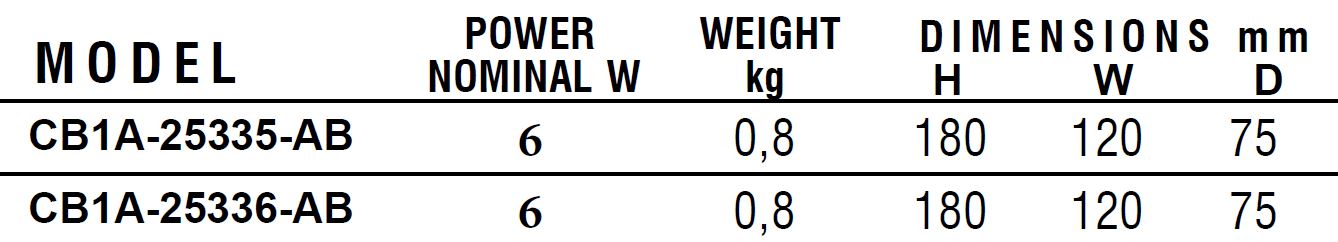

For dimensions and connection diagram see technical tab.

Technical



ENQUIRIES
Quote Required?
Please state part number and specifications where applicable.
*
*
*
*
*
*
