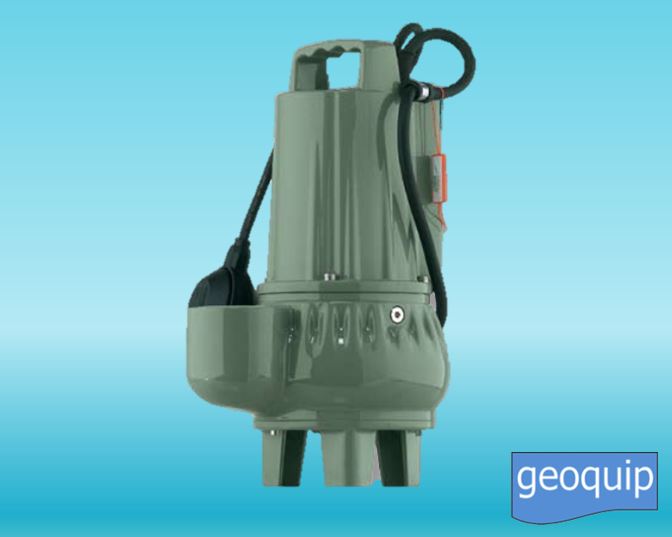

Patrol Submersible Drainer Pump

Recommended for domestic use, for draining flooded areas such as cellars and for emptying tanks and reservoirs

RANGE OF PERFORMANCE

Flow rate up to 1600 l/min (96 m3/h) Head up to 24 m

LIMITS OF USE

• Depth up to 10m
• Liquid temperature up to + 40°C
• Passage of solid bodies max Ø 50 mm for
• PATROL 15-20-30/50 P Passage of solid bodies max Ø 70 mm for
• PATROL 30/70 P For continuous duty: minimum immersion 420 mm from pump base

STANDARD FEATURES:

PATROL M (single-phase)

• Float switch.
• 10 metres “H07 RN-F” submersible power cable with Schuko plug.
• PATROL (three-phase) 10 metres “H07 RN-F” neoprene power cable

Control panels and Starters on application – Single Phase units will require a panel mounted capacitor.

PATROL SERIES PUMPS ARE MADE OF EXCEPTIONALLY ROBUST HEAVY GAUGE CAST IRON, ABRASION RESISTANT AND LONG-LASTING, WITH A SINGLE-CHANNEL IMPELLER WHICH CAN HANDLE LIQUIDS WITH SUSPENDED SOL - IDS AND SHORT FIBRES. THEY ARE I DEAL FOR SEWAGE, WASTE AND GROUND WATER, EVEN WITH SOLIDS OR MUD, AND ARE THEREFORE RECOMMENDED FOR BUILDING OR INDUSTRIAL EFFLUENT AND DRAINAGE OF LARGE AREAS SUCH AS CAR PARKS.

*Clearance stock – subject to reduced warranty period. Terms apply.
