BE 80 Electric Submersible Pump 80dc For Contaminated Sites
BE 80 Electric Submersible Pump 80dc For Contaminated Sites

BE 80 Electric Submersible Pump 80dc For Contaminated Sites

CALL US: +44(0)1473 462046
Brand
OFT
+
OFT Pumps

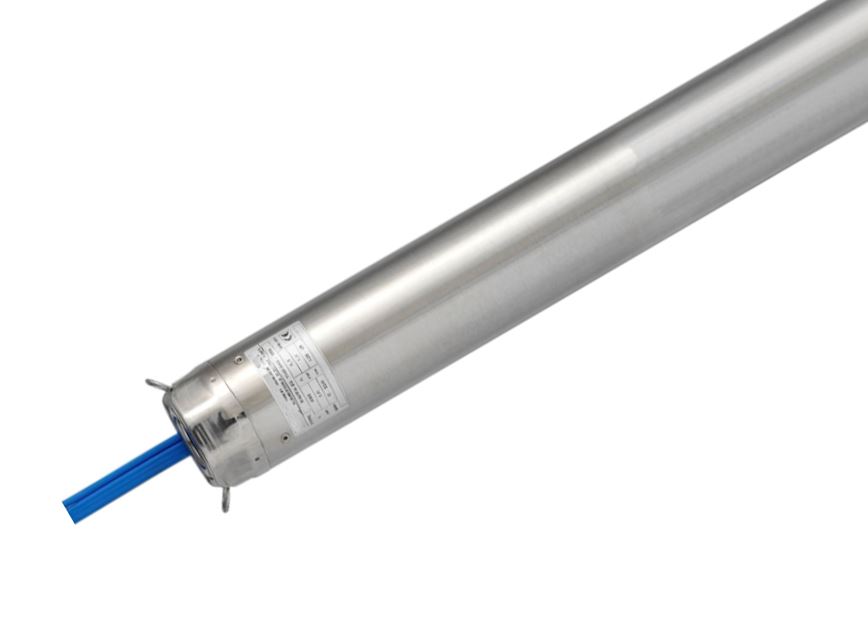

   4" Submersible Well Pumps all stainless steel construction
Max Flow 13.2 m3/hr    Max Head 185m
Information

Drainage of high temperature liquid from groundwater, extraction of leachate even contaminated from wells in landfills, raising of wastewater from industrial processes, hydraulic barriers. The pumps can not be installed in potentially explosive atmospheres.

Features

  • Multistage centrifugal electric submersible pumps characterized by floating impellers system that allows the pumping of leachate and charged liquid with small solid bodies.
  • External pump case, delivery port, suction port, shaft and other components in AISI 304 stainless steel.
  • Impellers and diffusers in special technopolymer.
  • The check valve made of stainless steel is installed in the delivery head.
  • Viton seals.
  • Electric pumps produced directly with the meters of SK 4G1,5 electric cable required without electrical junctions.
  • Available in AISI 316 version.

Motor

  • 2 poles asynchronous motor, 50 Hz, 2850 rpm.
  • Class F insulation.
  • IP68 protection.
  • Working voltage: single-phase 230 V, three-phase 400 V.
  • Electric motor cooled by non-toxic, non-polluting liquid.
  • Motor protected by thermal switches resistant to temperatures of the pumped liquid up to 80 °C.

Working Conditions

  • The pump can not operate in dry conditions.
  • Pump body always completely submerged.
  • Temperature of pumped liquid: min 0 °C - max 80 °C.
  • Frost free location.
  • Vertical operating position (horizontal on request).
  • Maximum immersion depth: 20 m.
  • Maximum number of starts per hour: 20
  • Related Products

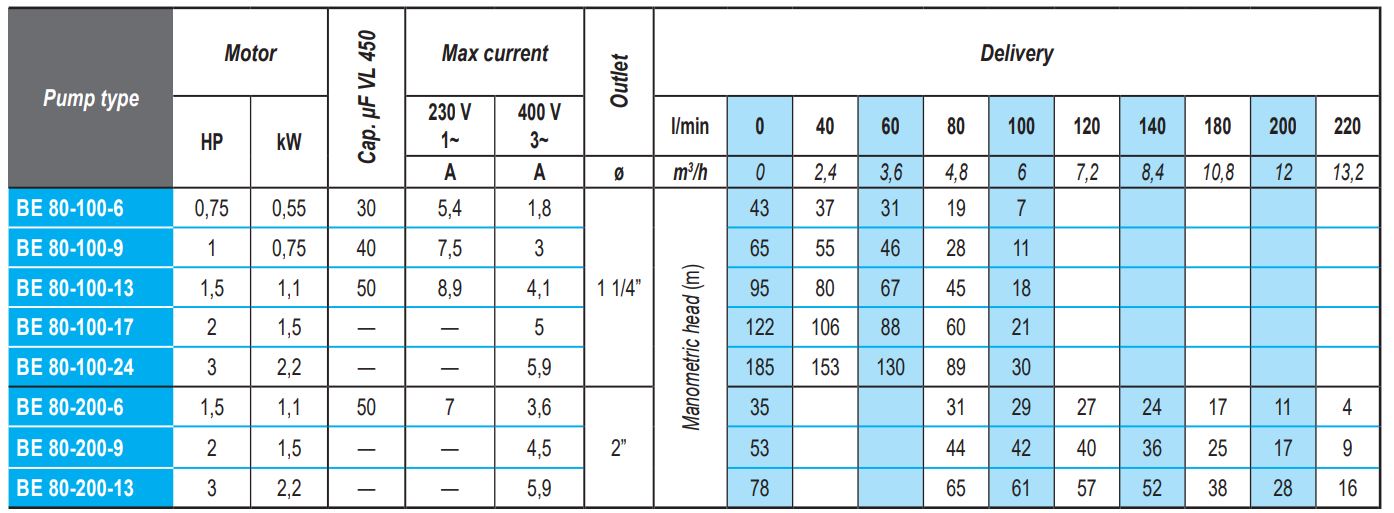

BE 80 Conaminated Pumps Technical
