ID OMEGA EX Hydrocarbon Pump - MaxFlow 10.8m3hr
ID OMEGA EX Hydrocarbon Pump - MaxFlow 10.8m3hr

ID OMEGA EX Hydrocarbon Pump - MaxFlow 10.8m3hr

CALL US: +44(0)1473 462046
Part Number
IDOMEGAEX11-1p
Brand
OFT
+

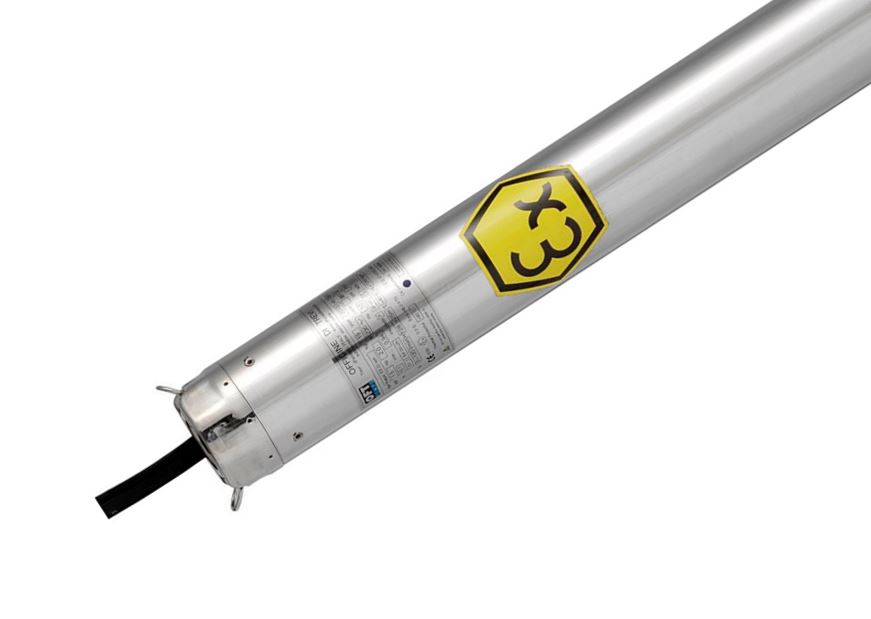

OFT Pumps     ATEX Logo      ID OMEGA EX ATEX Rated 4" Borehole Submersible Pumps with thermoplastic internals and Floating Impellers
Max Flow 10.8 m3/hr    Max Head 130 m

Information

Pumping of liquids and extraction of leachate in landfill, drainage of fluids contaminated by hydrocarbons and groundwater.

The ATEX pumps in conformity with 2014/34/UE Directive can be installed in potentially explosive atmospheres according to the marking explained in the technical details.

Features

  • Multistage centrifugal electric submersible pumps for 4” wells.
  • External pump case, delivery port, suction port, shaft and other components in AISI 316 stainless steel.
  • Impellers and diffusers in special technopolymer.
  • The check valve made of AISI 316 stainless steel is installed inside the delivery head.
  • Temperature of pumped liquid: max +40 °C.
  • Special and mechanical seal, it is particularly robust and reliable with high resistance to chemical aggression.

Motor

  • 2 poles asynchronous motor, 50 Hz, 2850 rpm.
  • Class F insulation.
  • IP68 protection.
  • Working voltage: single-phase 230 V, three-phase 400 V.
  • Oil filled electric motor.

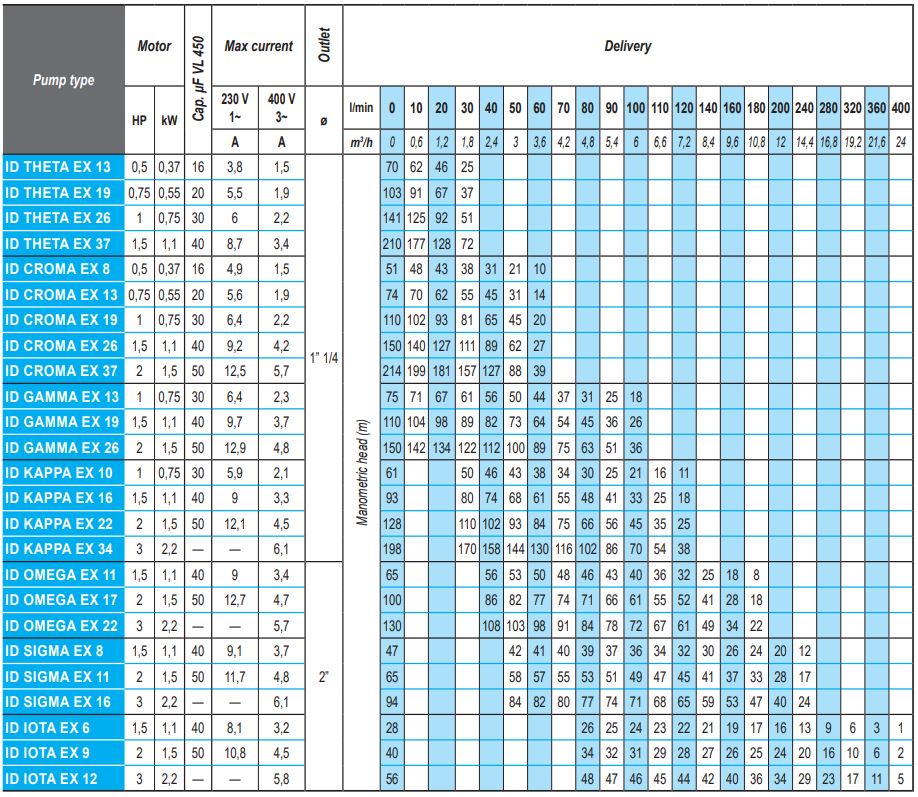

Performance Table

Technical

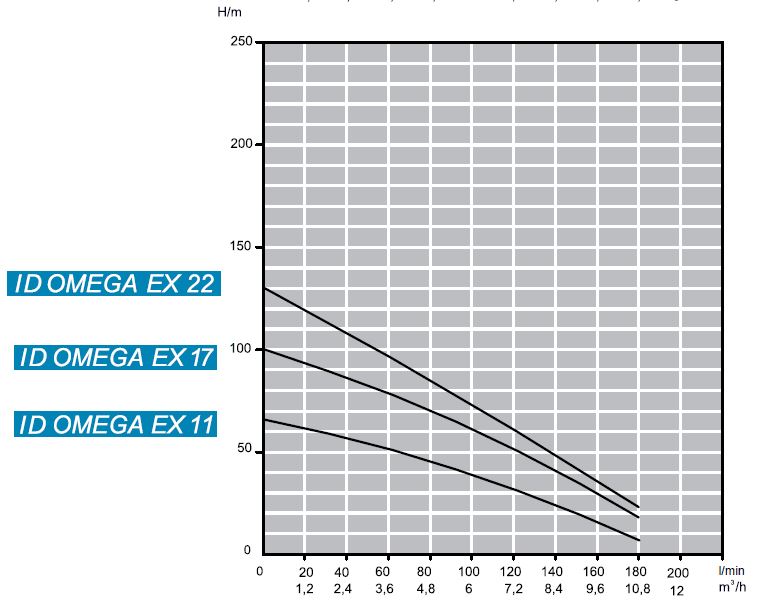

Performance Curves

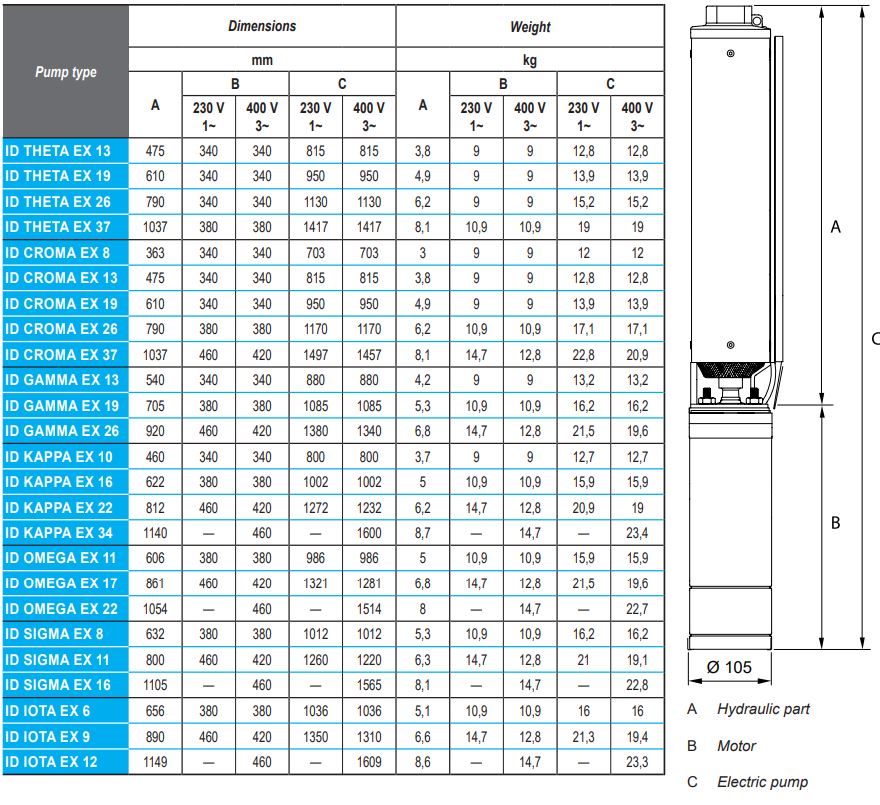

Dimensions and Weights

Downloads & Videos
