Max Flow 15m3/hr P Type

Max Flow 15m3/hr P Type
Zoom  Zoom
Our Price:  CALL US: +44(0)1473 462046(Exc. 20% VAT)

Part Number:  AP6B5
Pump Size:  6" Pump
Max Flow:  15m3/hr
Max Head:  729m

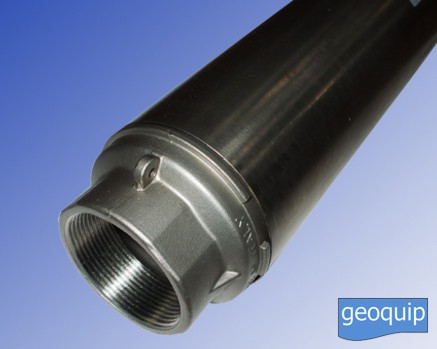

  6" Borehole Submersible Pumps - Plastic Internals
Max Flow 15m3/hr    Max Head 729 m

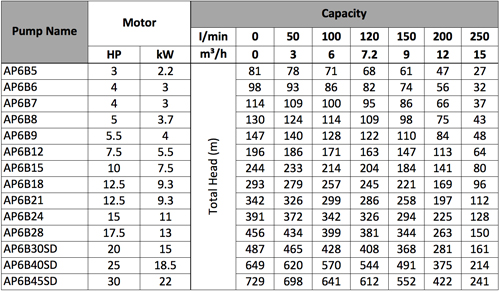

Performance Table


Domestic and Industrial water supply
Fire-fighting systems
Pressurising water system
Shower and running irrigation
Several plants


AISI 304 stainless steel for top and bottom
AISI 420 stainless steel for shaft
AISI 430F stainless steel for coupling
AISI 304 stainless steel for external jacket
Diffuser casing, screen and cable guard
PA66 fiber glass reinforced for bushes
Noryl for impellers and diffusers

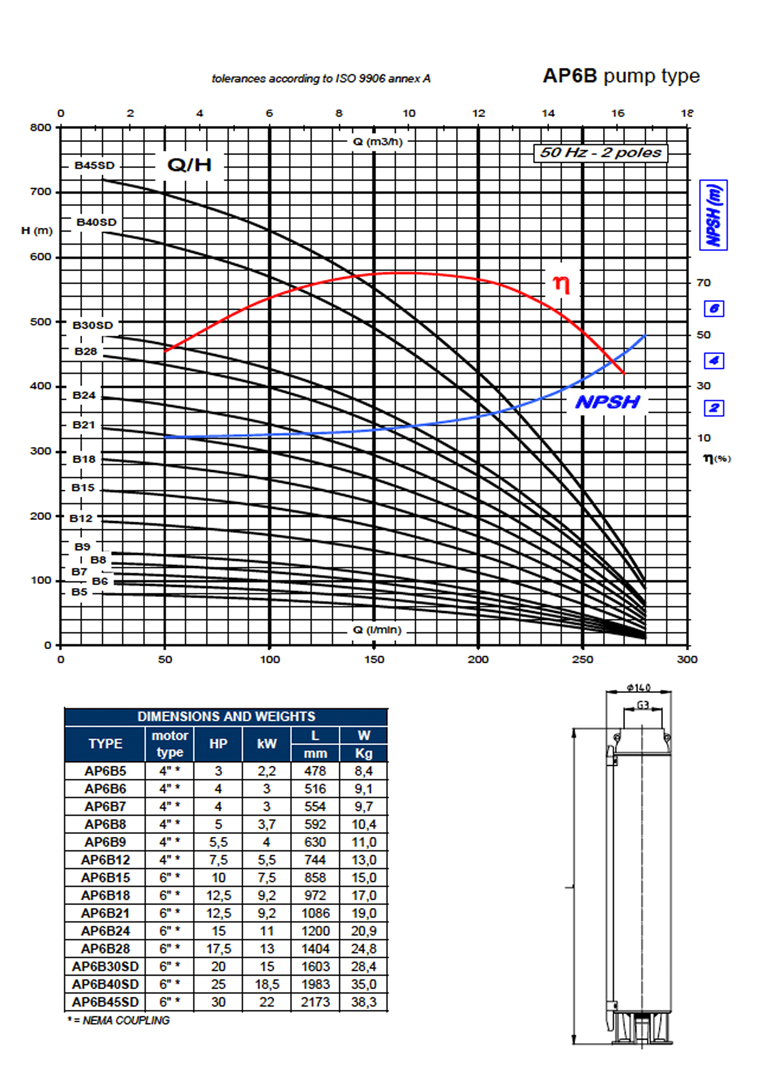

Operating data

Capacity up to 66m3/h
Head up to 730m
Power up to 43kW
Max. water temperature 30dc
max. sand content: 60g/m3
Direction of rotation: CCW facing delivery side
Min. recommended head of water above pump suction: 1m
