Electromechanical Pressure Switch FSG FYG

Electromechanical Pressure Switch FSG FYG
  Zoom
 Electromechanical Pressure Switch FSG FYGElectromechanical Pressure Switch FSG FYG
Our Price:  £9.43(Exc. 20% VAT)
+


Part Number:  ES1B-852120-C
Brand:  Electromechanical Pressure Switch

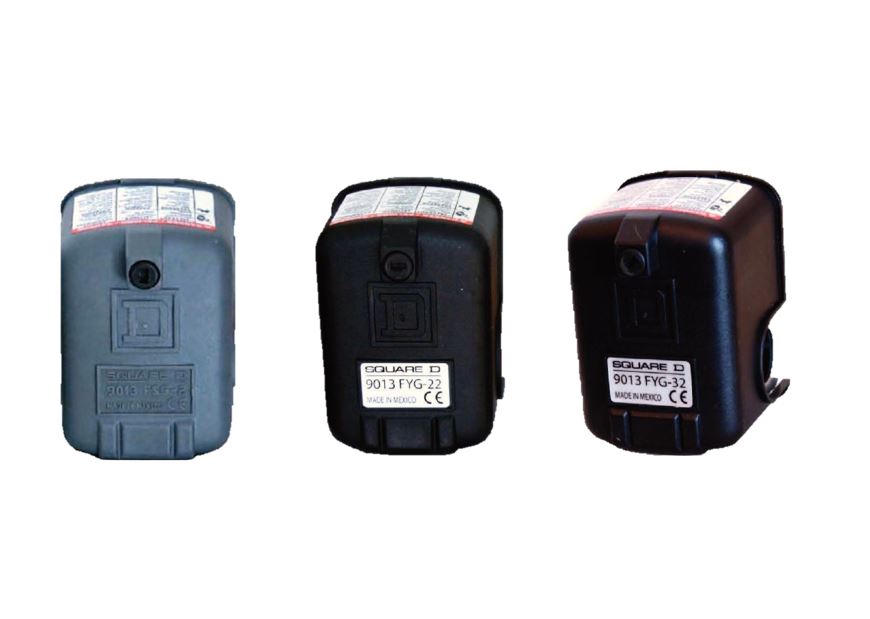

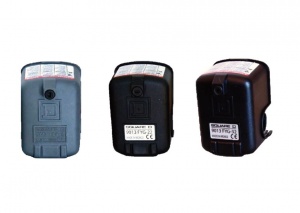

Electromechanical pressure switches types; PS2, FSG and FYG Square D for power circuits. They are used to control pressure  of water up to 10.5 bar.

Electromechanical pressure switches types; PS2, FSG and FYG Square D for power circuits. They are used to control the pressure of water, up to 10.5 bar.

The FSG and FYG Square D models come with adjustable differential, for regulation between 2 thresholds.

Units available;

FSG 2

FYG 22

FYG 32

Rated current: 10 A at 250 V AC conforming to EN 60730-1

Pressure sensor size: 7 bar

IP degree of protection: IP20 conforming to EN/IEC 60529

Product weight: 0.34 kg

Also available an alternative model, PS2 pressure switch units;

PS2 (1.5 to 5.5 bar)

PS2 (2.4 to 10.5 bar)

Please see technical tab for more information or contact us direct.

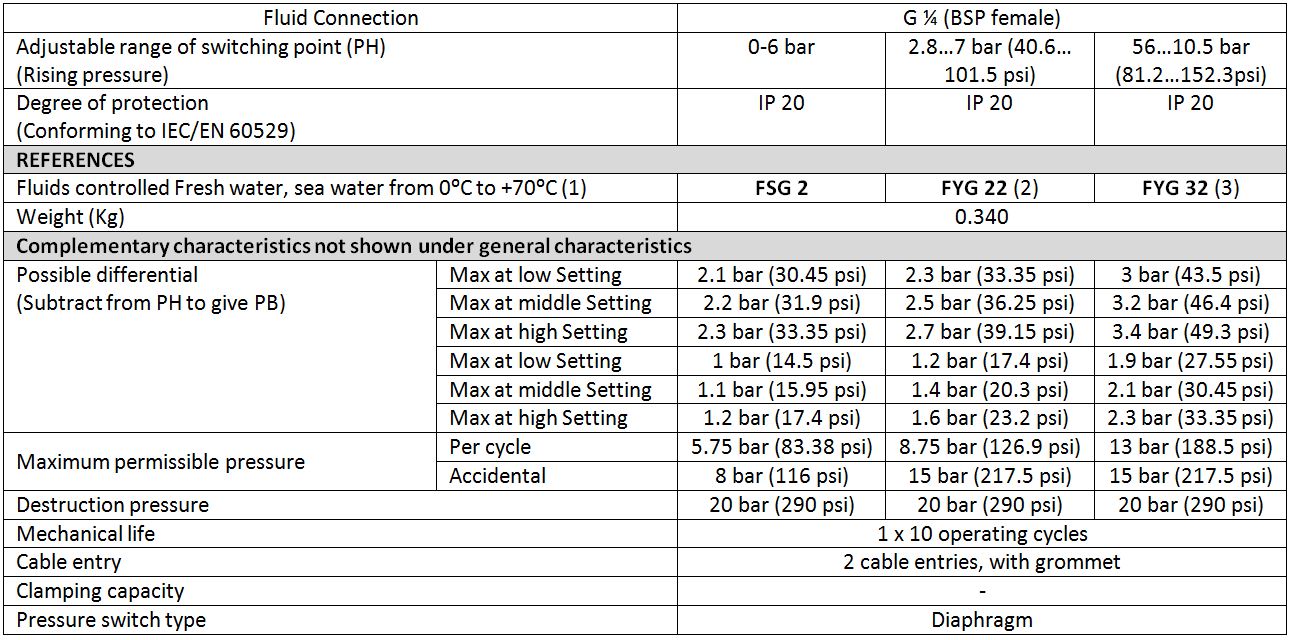

electromechanical pressure switch table

1) Component materials pf units in contact with the fluid.

Pressure switches with adjustable differential (types FSG and FYG)

When setting the pressure switch, adjust the switching point on rising pressure (PH) first and then the switching point on failing pressure (PB).

Switching point on failing pressure

The switching point on rising pressure (PH) is set by adjusting screw-nut 1

Switching point on failing pressure

The switching point on failing pressure (PB) is set by adjusting screw-nut 2

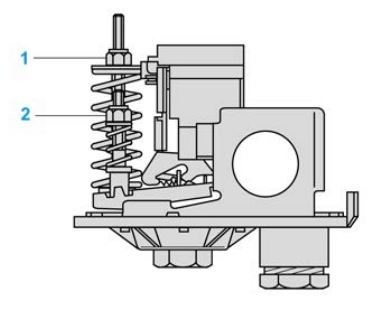

  Adjustable pressure switch

Curves

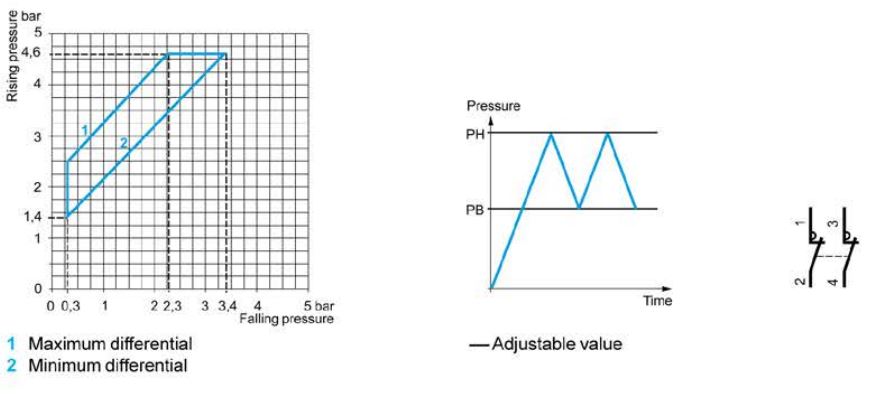

FSG 2 curves

FSG 2 curves

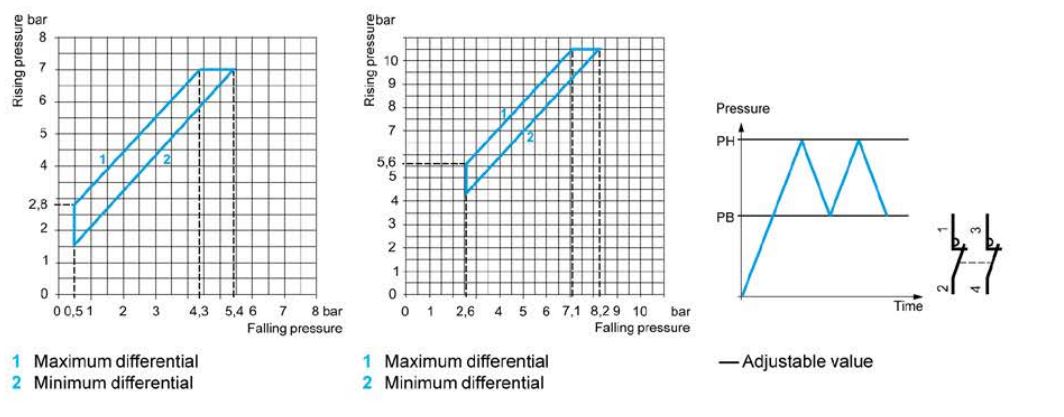

FYG 22 and FYG 32 Curves

FYG 22 and FYG 32 Curves

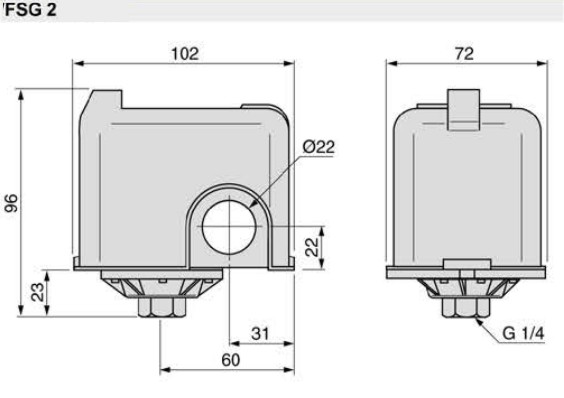

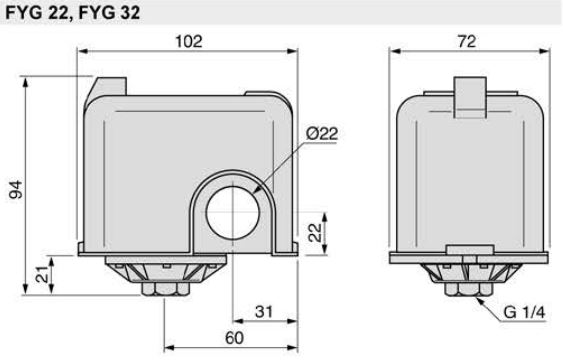

Dimensions

Dimensions   Dimensions
