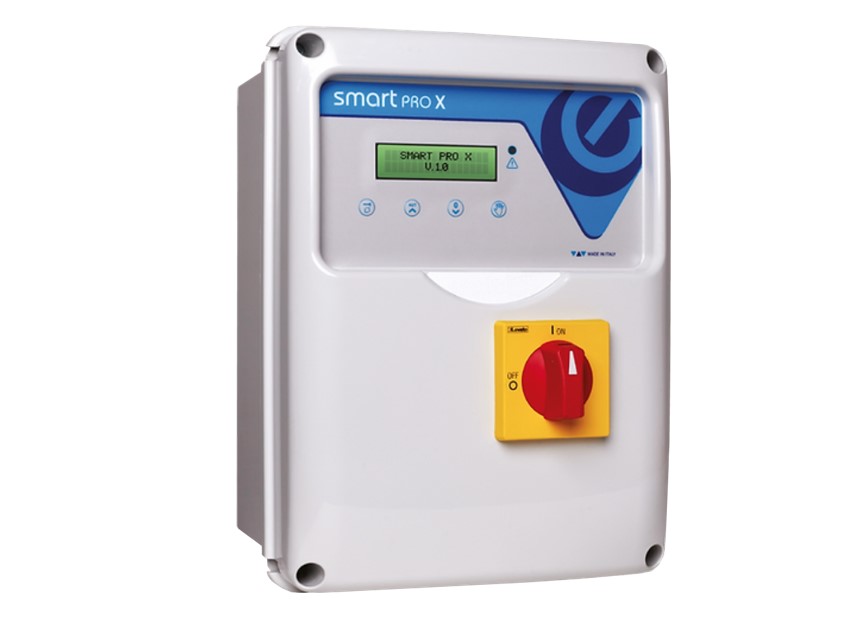

Smart PRO X Electronic Control Panel

CALL US: +44(0)1473 462046
Part Number
11015XNB
Brand
Elentek
+

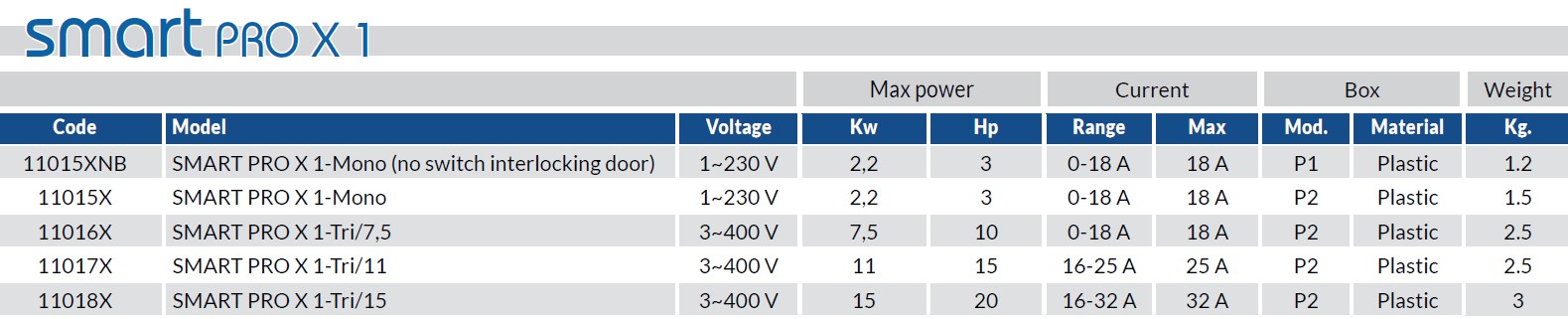

SMART PRO X 1 Electronic Control Panel

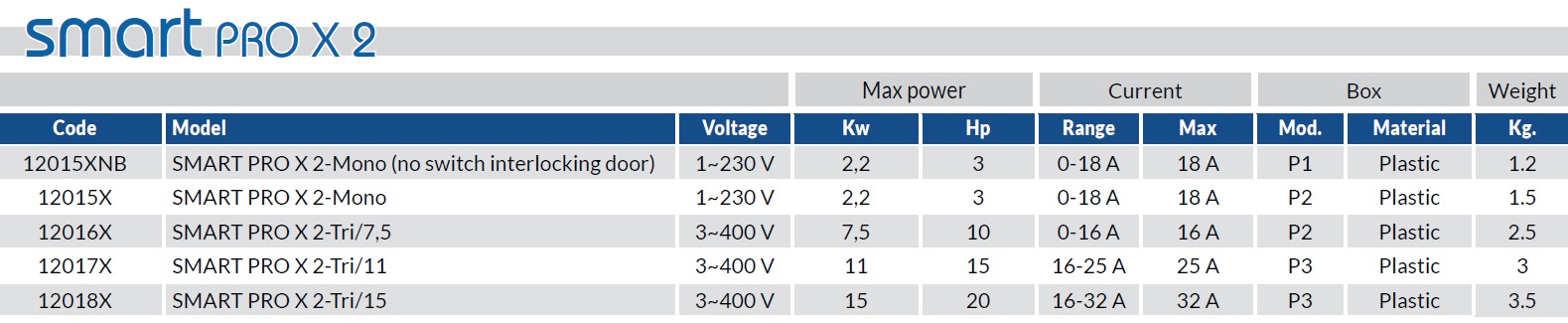

SMART PRO X 2 Electronic Control Panel

Please contact us if you would like any technical advice or price and availability information.

Elentek
Information
SMART PRO X the practical display to check the working and operation data of the motors connected distinguishes SMART PRO X. Thanks to the new expansion modules system and the connections, the panel can be used for a wide range of applications and increases the potential of the system. Compact, very easy to install and program also by App, it facilitates the replacement of old and obsolete panels installed.
  • The display makes it even easier and faster
  • Maximum Control - Integrating the most complete system protections
Applications
  • Pressurisation
  • Filling
  • Emptying
  • Drainage

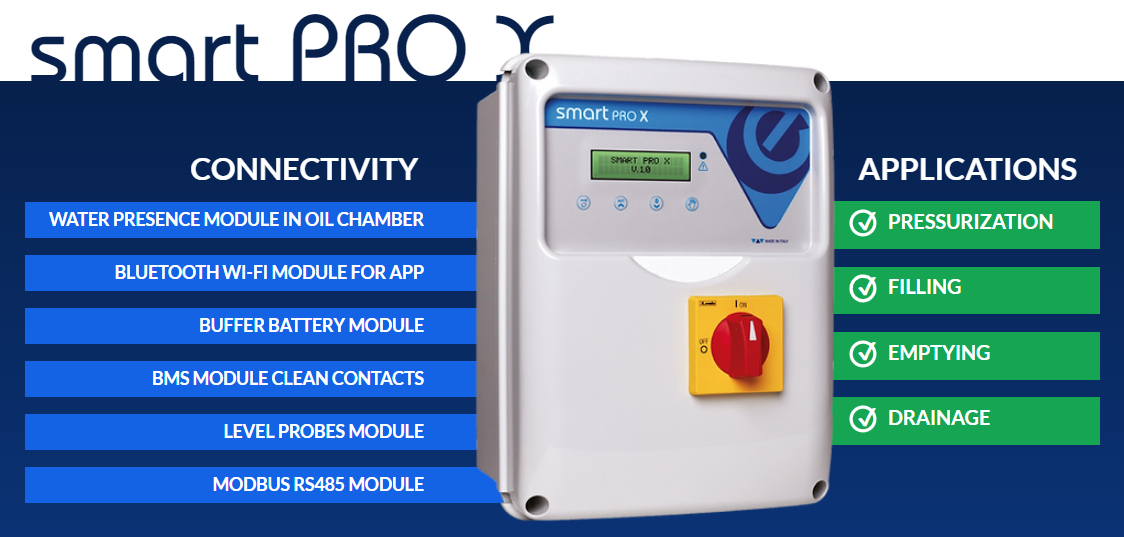

Connectivity

  • BMS Free voltage contacts module
  • Bluetooth WI-FI module for App
  • Water in oil chamber module
  • Buffer battery module

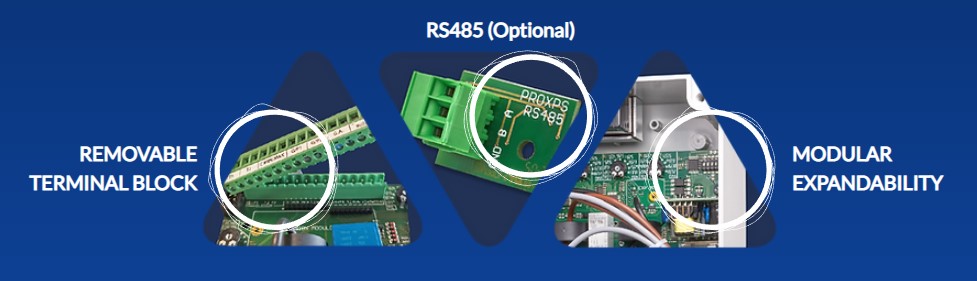

  • RS485 modbus module (optional)
  • Level probes module
  • Removable terminals
  • Modular Expandability

Technical

Functions

  • LCD display to show voltage, current, working hours, number of starts, motor status and alarms
  • AUTOMATIC - 0 (standby) – MANUAL pushbuttons (fixed or pulse)
  • Language settings (Italian, English, French, Spanish, German)
  • Anti-seize autotest (can be disabled)
  • Dry running protection with: level probes/ floats/pressure switches
  • Up to 4 control inputs: floats/pressure switches
  • Clicson inputs with automatic reset (can be disabled)
  • Input reversal (from normally open to normally closed)
  • Start/stop float switch function (can be disabled)
  • Selectable amperometric protection delay
  • Automatic reset due to minimum current alarm (can be disabled)
  • Activation delay from mains return(can be disabled)
  • Manual pushbutton operation (fixed or pulse)
  • Provision for run capacitors, single-phase version (not included)

Versions

  • Power supply 1phase 100-240Vac 50/60Hz
  • Power supply 3phase 310-450Vac 50/60Hz

Controls

  • Electronic control of minimum and maximum voltage
  • Electronic control of maximum current with assisted calibration
  • Electronic control of minimum current (dry running) with assisted calibration
  • Failure or incorrect phase sequence control on power supply input (can be disabled)

Alarms

  • Alarms reported: voltage status, levels, motor overload, minimum motor current, clicson motor
  • General alarm output contacts

Protections

  • Auxiliary and motor protection fuses
  • Isolator (except for NB code)
  • Box in ABS, IP55

Additional Functions SMART PRO X 2

  • Duty/standby (can be disabled)
  • Immediate motor changeover in case of a fault

Technical
