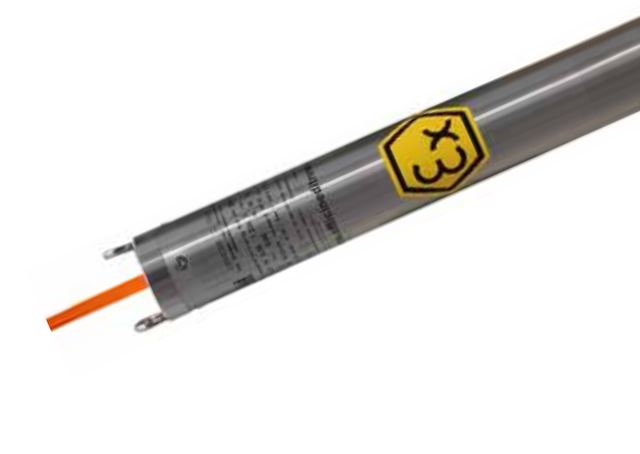

316 TREINCH EX ATEX Pump Max Flow 3.3m3/hr

316 TREINCH EX ATEX Pump Max Flow 3.3m3/hr
  Zoom
 316 TREINCH EX ATEX Pump Max Flow 3.3m3/hr316 TREINCH EX ATEX Pump Max Flow 3.3m3/hr
Our Price:  CALL US: +44(0)1473 462046(Exc. 20% VAT)
+


Part Number:  316 Treinch EX 25-20 1P
Brand:  OFT

OFT Pumps     OFT Pumps      ATEX 3" Borehole Submersible Pumps (316 Treinch Ex)
Max Flow 3.3 m3/hr    Max Head 87 m

Pumping of liquids in landfills, drainage of liquids from piezometric wells, sampling of fluids in contaminated sites and groundwater.

The ATEX pumps in conformity with 2014/34/EU Directive can be installed in potentially explosive atmospheres according to the marking explained in the technical details.

FEATURES

• Multistage centrifugal electric submersible pumps for 3” wells.
• External pump case, delivery port, suction port, shaft and other components in AISI 316 stainless steel.
• Impellers and diffusers in special technopolymer.
• Temperature of pumped liquid: max +40 °C.
• Available the version with Maxifilter 90 or with Slope Riser.

MOTOR

• 2 poles asynchronous motor, 50 Hz, 2850 rpm.
• Class F insulation.
• IP68 protection.
• Working voltage: single-phase 230 V, three-phase 400 V.

ACCESSORIES

• Control panel.
• Intrinsically safe module with ATEX supply circuit.
• ATEX electronic level transmitter.
• TPE-E 4G1,5 composed cable

Quote Required?
Please state part number and specifications where applicable.
 *
 *
 *
 *
 *
 *
