Max Flow 5.4m3/hr F Type

Max Flow 5.4m3/hr F Type
Our Price:  CALL US: +44(0)1473 462046(Exc. 20% VAT)

Part Number:  FP4E005
Brand:  Felsom
Pump Size:  4" Pump
Max Flow:  5.4m3/hr
Max Head:  303m

  4" Floating Impeller Submersible Borehole Pump
Max flow 5.4m3/hr    Max head 303 m

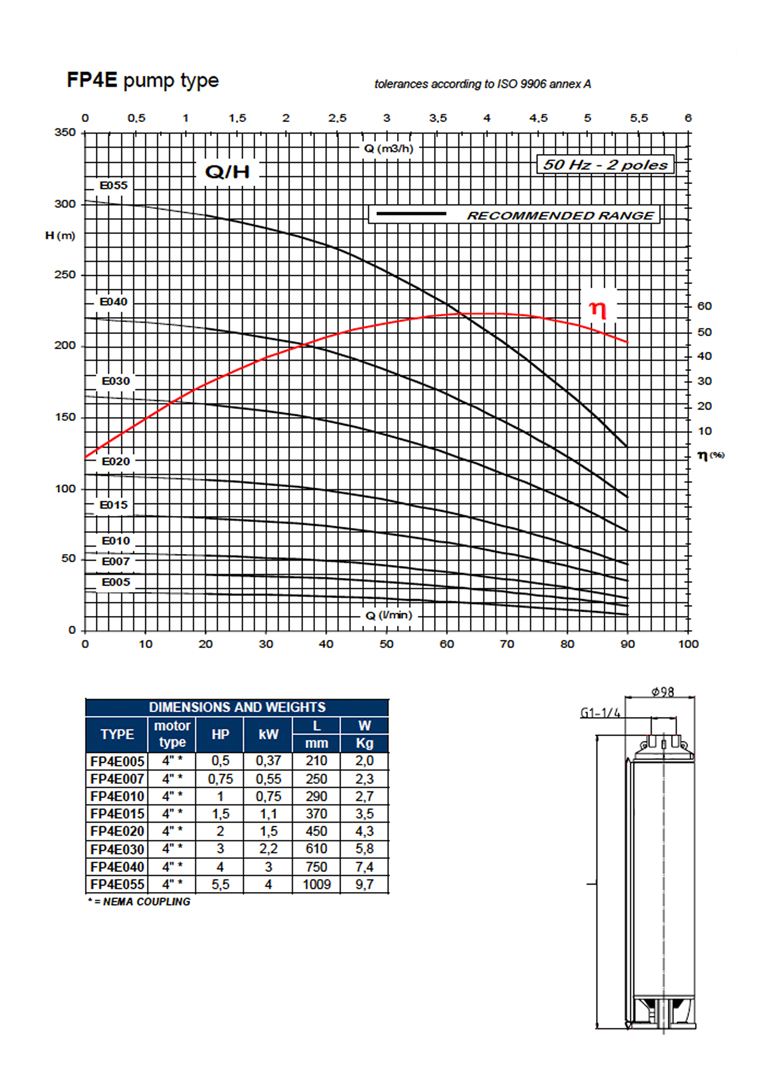

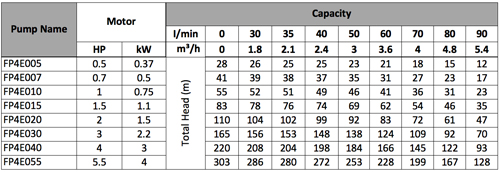

Performance Table

Domestic and Industrial water supply, Fire-fighting systems, Pressurising water systems, Irrigation, Process Plants

AISI 304 stainless steel for top outlet and bottom support, external jacket, diffuser casing, screen and cable guard
AISI 420 stainless steel for shaft
AISI 316L/304 stainless steel for coupling
Impellers, diffusers and bushes are fibre glass reinforced PA66 .

Operating data
Max. water temperature 35'C
Max. sand content: 185g/m3
Max startings per hour: 15
Min. recommended head of water above pump suction: 1m

Please state part number and specifications where applicable.
