4VSF 4 - 4" Submersible Pump E-tech Franklin Electric

4VSF 4 - 4'' Submersible Pump E-tech Franklin Electric
  Zoom
Our Price:  CALL US: +44(0)1473 462046(Exc. 20% VAT)
+


Part Number:  4VSF4/4
Brand:  Franklin Electric E-tech
Pump Size:  4" Pump
Series:  4VSF 4

Franklin Electric E-tech


E-Tech 4VSF Series 4" Submersible Well Pumps

4VSF 4

Outer Case: Stainless Steel, Diffusers: Techolopolymer, Impeller: Polycarbonate
Max Flow 7.2m3/hr   Max Head 680m

NOTE: Motors are sold separately, please see our range of motors here.

4VSF 4 Series 4" Submersible borehole pumps Outer Case: Stainless Steel, Diffusers: Techolopolymer, Impeller: Polycarbonate Max Flow  7.2m3/hr   Max Head 680m

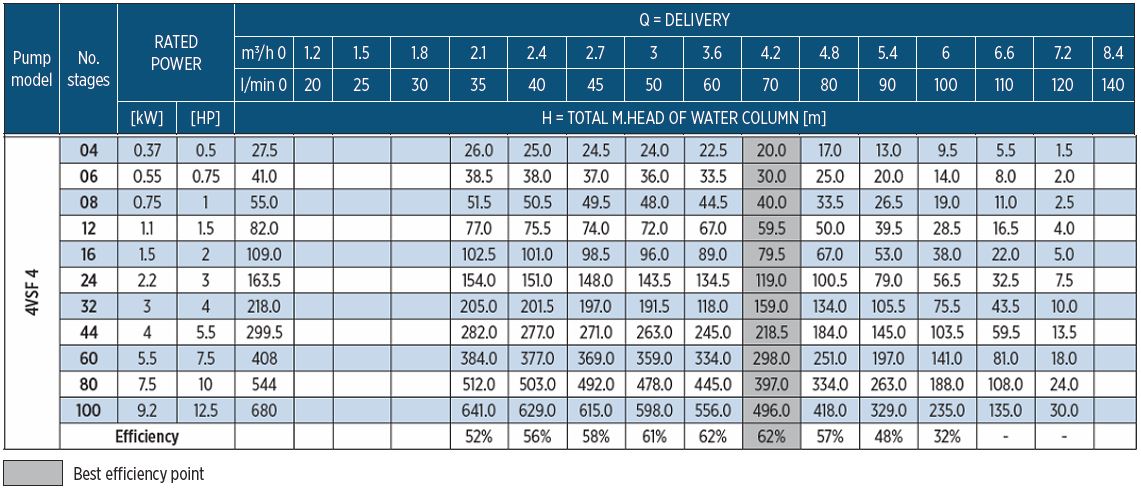

Performance Tables

TABLE OF HYDRAULIC PERFORMANCES AT 50Hz

Applications

  • Municipal water works, fountains and waste water
  • Water distribution and pressure boosting
  • Irrigation and sprinkler systems, water treatment plants, filtration and reverse osmosis
  • Industrial cooling and processing
  • Mining industry, drainage and dewatering
  • Fire-fighting equipment
  • Water supply to and from tanks, reservoir and wells
  • Lifting and distribution of a wide range of liquids
  • Autoclave and cistern charge and discharge
  • Turf and landscape
  • Residential and farm wells and drainage
  • General industry

FEATURES

  • Compact, reliable and suited to operate in horizontal position
  • 4": Built-in check valve to protect the pump against water hammer risk (for model 4VSF15 please contact Franklin Electric)
  • Floating impellers to grant a better performance and longer life for the pump against abrasion
  • Pumped liquid: chemically and mechanically non aggressive

GENERAL PUMP SPECIFICATION

  • Rotation: counter clockwise when looking into the discharge
  • Pump can work continuously in vertical or horizontal position
  • Motor adapter in compliance with NEMA standard

SPECIFICATIONS

  • Flow: up to 27 m³/h at 50 Hz
  • Head: up to 641 m at 50 Hz
  • Pumped liquid: chemically and mechanically non aggressive
  • Max water temperature: 45 °C
  • Maximum allowable amount of sand: 250 g/m³
  • Maximum pump diameter (including cable guard): 98 mm
  • Outlet diameter: 1" ¼ for VSF 1-2-3-4, 2" for VSF 6-8-12-15
  • Motor support: supplied for connection to 4" motor
  • Rotation: counter clockwise when looking into the discharge
  • Pump can work continuously in vertical or horizontal position


Please state part number and specifications where applicable.
 *
 *
 *
 *
 *
 *
