QA50 Control Panel
  Zoom
This item is unavailable for purchase

Smart Evo 1 Electronic Control PanelSmart Evo 1 Electronic Control Panel

Part Number:  CS1A-23313-AE
Brand:  Maniero



Legacy product

Alternative panels;

Smart EVO 1

Please contact us if you would like to discuss our alternative products.

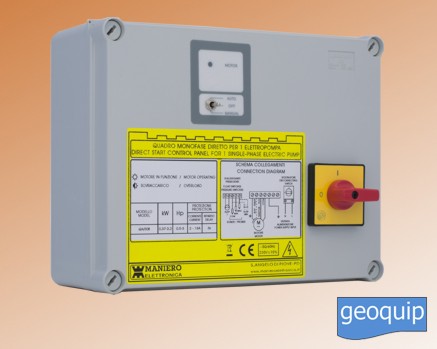

QA50 (QA50B QA/50) single phase electronic control panel for one electric pump (or motor), with direct start.  Available in 230v and 110v single phase.

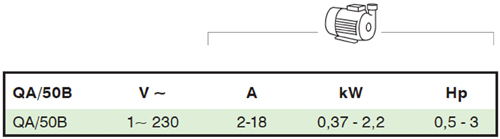

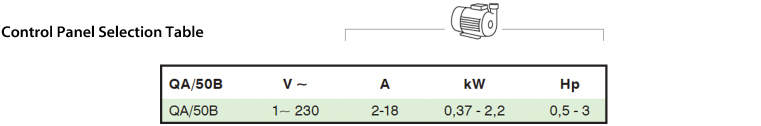

QA50 control panel Table



QA/50B Electronic control panel with probe inputs, equipped with adjustable electronic protection against motor overload.

It is suitable for surface pumps, submerged pumps and motors in general, with power range between 0,37 kW and 2,2 kW (please download the data sheet to learn more about all the available sizes and features). It can be used for emptying (drainage), filling or pressurization.

Electric control panel with thermoplastic case and IP50 protection degree, extendable to IP55.

Inputs and outputs

  • Inputs for N. 3 probes, or N. 1 float or pressure switch enabling stop level (minimum or maximum);
  • N. 1 input for float or pressure switch;

Functions

  • Command with selector and LEDs;
  • Emptying or filling mode switch;
  • Main disconnecting switch with door lock;

Protections

  • Adjustable electronic protection against motor-overload;
  • Motor protection fuses;
  • Very low voltage inputs;

KCC – Running capacitor predisposition 12,5/16/20/25/30/35/40/45/50/60/70/75/80 μF;

Optional features

MIC24 – Interface module control for 24Vac command input;
IP55 – IP55 protection degree;

QA50, QA50B, QA/50 QA/50B

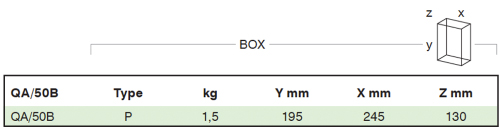

Dimensions & Weights

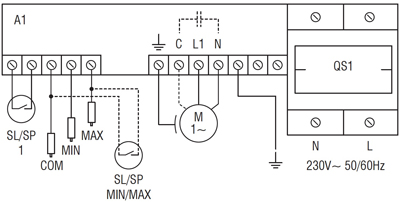

Circuit Diagrams

QA50

Electrical Data
