Smart Evo 1 Electronic Control Panel

Smart Evo 1 Electronic Control Panel
  Zoom
 Smart Evo 1 Electronic Control PanelSmart Evo 1 Electronic Control Panel
Our Price:  CALL US: +44(0)1473 462046(Exc. 20% VAT)
+
Panels:

Part Number:  01015
Brand:  Elentek

Elentek



Please contact us if you would like any technical advice or price and availability information.

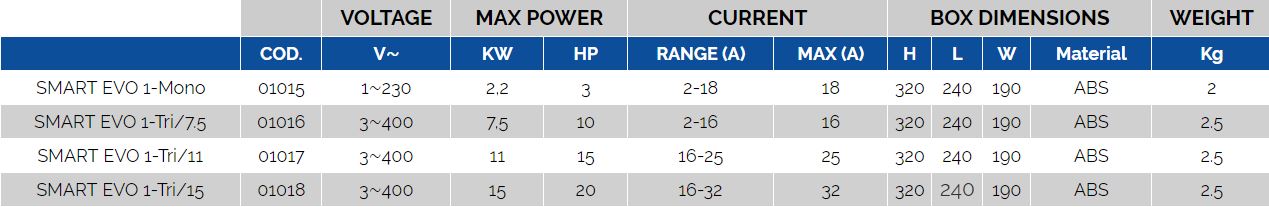

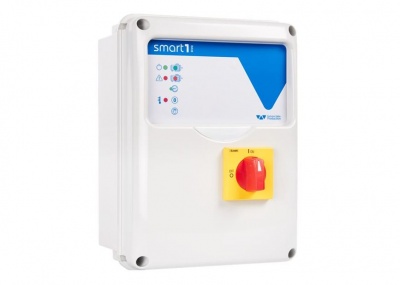

The most complete control panel for sewage and pumping systems ever!

Born from the need to combine in a single product the functions of panels for clean water (emptying, filling, pressurization, etc) and sewage pump panels (emptying and sewage water) and to offer always more function, safety and control, SMART EVO raises the standard without extra cost!

The control panels SMART EVO are made in an original Elentek thermoplastic ABS design box, watertight, selfextinguishing, IP55.

Each panel has LED lights signaling voltage presence, thermal protection and motor running, a main switch interlocking door, push buttons for manual or automatic operation, level relay for probes volt free alarm contacts.

The users and external controls such as float switches and pressure switches are to be connected on the terminals of the main electronic board.

  • Power supply 1phase 100-240Vac 50/60Hz (SMART EVO-Mono);
  • Power supply 3phase 310-450Vac 50/60Hz (SMART EVO-Tri);
  • Input for 3 single-pole probes (COM-MIN-MAX);
  • Input G.A. normally open for alarm activation;
  • Push-buttons for selecting operation
  • AUTOMATIC-0-MANUAL(temporary);
  • DIP-SWITCH selectors for:
    • enabling level alarm from probes;
    • thermal cut-out activation delay 5/10 seconds;
    • alarm output settings;
    • alarm reset enable from motor clicson;
    • filling/emptying mode;
    • enabling start/stop float function;
    • delay of electronic board activation on power mains return.
  • Green led: power ON / failure or incorrect phase sequence;
  • Red led: level alarm from probes or GA input;
  • Electronic control of max current due to overload, with assisted calibration;
  • Electronic control of minimum current due to dry run, with assisted calibration;
  • Automatic reset due to minimum current alarm;
  • Timer for delay of motor enabling on power mains return;
  • Protection of auxiliary circuits and motor with fuses;
  • Cumulative alarm output with voltage-free contacts (COM-NO-NC resistive load - 5A / 250V);
  • Cumulative alarm output, live (12Vcc / 100mA);
  • Door lock general disconnect switch;
  • Provision for run capacitors, single phase version (not included);
  • Box in ABS, IP55;
  • Ambient temperature: -5/+40 °C;
  • Relative humidity 50% at 40 °C (condensate free).
  • G/P1 normally open input;
  • T1 input for motor clicson;
  • Green led: automatic mode enabled;
  • Green led: motor active;
  • Red led: motor overload alarm/minimum current alarm;
  • Red led: motor clicson activation alarm

General Features

  • Power supply 1phase 100-240Vac 50/60Hz (SMART EVO-Mono);
  • Power supply 3phase 310-450Vac 50/60Hz (SMART EVO-Tri);
  • Input for 3 single-pole probes (COM-MIN-MAX);
  • Input G.A. normally open for alarm activation;
  • Push-buttons for selecting operation
  • AUTOMATIC-0-MANUAL(temporary);
  • DIP-SWITCH selectors for:
    • enabling level alarm from probes;
    • thermal cut-out activation delay 5/10 seconds;
    • alarm output settings;
    • alarm reset enable from motor clicson;
    • filling/emptying mode;
    • enabling start/stop float function;
    • delay of electronic board activation on power mains return.
  • Green led: power ON / failure or incorrect phase sequence;
  • Red led: level alarm from probes or GA input;
  • Electronic control of max current due to overload, with assisted calibration;
  • Electronic control of minimum current due to dry run, with assisted calibration;
  • Automatic reset due to minimum current alarm;
  • Timer for delay of motor enabling on power mains return;
  • Protection of auxiliary circuits and motor with fuses;
  • Cumulative alarm output with voltage-free contacts (COM-NO-NC resistive load - 5A / 250V);
  • Cumulative alarm output, live (12Vcc / 100mA);
  • Door lock general disconnect switch;
  • Provision for run capacitors, single phase version (not included);
  • Box in ABS, IP55;
  • Ambient temperature: -5/+40 °C;
  • Relative humidity 50% at 40 °C (condensate free).
  • G/P1 normally open input;
  • T1 input for motor clicson;
  • Green led: automatic mode enabled;
  • Green led: motor active;
  • Red led: motor overload alarm/minimum current alarm;
  • Red led: motor clicson activation alarm
Quote Required?
Do you have a question about this product?
Please state part number and specifications where applicable.
Email address: *
Phone number: *
Your name: *
Company name: *
Country: *
City: *
Would you like to sign up to our newsletters?
You will receive emails on our latest news, products and services, please see our privacy policy for more information.
 *
Please add the two numbers

Related Products
Scout Electronic Control PanelSKU: ScoutPanel

Scout Electronic Control panel is easy to use, intuitive and it’s a Wireless panel that transforms a standard pumping system into a smart system using yours smartphone for remote control via Wi-Fi.


£114.00

Smart Evo 2 Electronic Control Panel
Smart Evo 2 Electronic Control PanelSKU: SmartEvo2

Smart EVO 2 Electronic control panel for 2 pumps, ideal for booster sets or for drainage pumps on sewage water lifting stations.


CALL US: +44(0)1473 462046

Drytek Electronic Control Panel
Drytek Electronic Control PanelSKU: Drytek

Control panel with LCD for 1 single-phase and three-phase motor with power factor control to prevent the pump from dry running. Ensuring the protection of submerged pumps without probes.


£187.00

HELP Electronic Control Panel
HELP Electronic Control PanelSKU: HELPControlPanel

The back-up sump pumps systems HELP are anti black-out systems for single-phase loads. They are mainly used to control and supply sump pumps in blackout conditions.


CALL US: +44(0)1473 462046
