QTDE Control Panel - 400v
  Zoom
This item is unavailable for purchase

Smart Evo 1 Electronic Control PanelSmart Evo 1 Electronic Control Panel

Part Number:  QTDE10/1A-T 400v
Brand:  Maniero



Discontinued product

Alternative panels;

Smart EVO 1

Please contact us if you would like to discuss our alternative products.

QTDE three phase electromechanical control panel for one up to three electric pumps (or motors), with direct start.

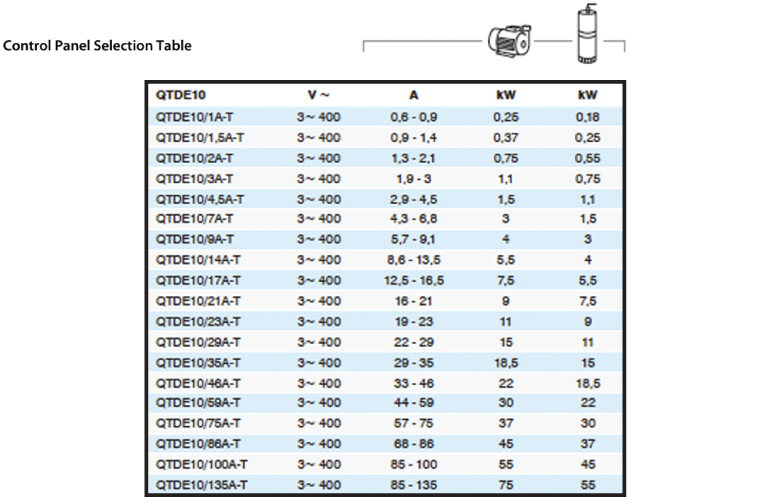

Control Panel Selection Table

Control Panel Selection Table

Control Panel Selection Table

Electromechanical control panel with thermal protection against motor overload, contactor for motor start and selectable self hold (excludable by selector).

It is suitable for surface pumps, submerged pumps (without probes) and motors in general, with power range between 0,18 kW and 75 kW (please download the data sheet to learn more about all the available sizes and features). It can be used for emptying (drainage), filling or pressurization.

Electric control panel with thermoplastic or metallic case (according to the model size) and IP55 protection degree.

Inputs and outputs

  • N. 2 (QTDE10) or 3 (QTDE20) or 4 (QTDE30) inputs for floats or pressure switches;

Functions

  • Command with selector and LEDs ø 22mm;
  • Main disconnecting switch with door lock;

Protections

  • Thermal relay protection against motor overload;
  • Auxiliary circuit and motor protection fuses;
  • 24Vac auxiliary contacts from safety transformer;
  • Very low voltage inputs;

QTDE10 optional features

MCL – Electronic module for level control with 3 probes (probes not included);
SVA – Voltmeter + Voltmeter switch + Ammeter;
ALC24 – N.O. alarm output + 24Vac output;
CO – Run hour meter;
RCSFA – Voltage control module, phases presence and phases sequence;
PMA – Start/stop button in MANUAL mode;
SMF – Multifunction device (V, A, W, phase sequence);
TRAA – Power start on-delay timer;

QTDE20 and QTDE30  optional features

SCB – Pumps start exchanger;
SVA – Voltmeter + Voltmeter switch + N. 2 (QTDE20) or N. 3 (QTDE30) Ammeters

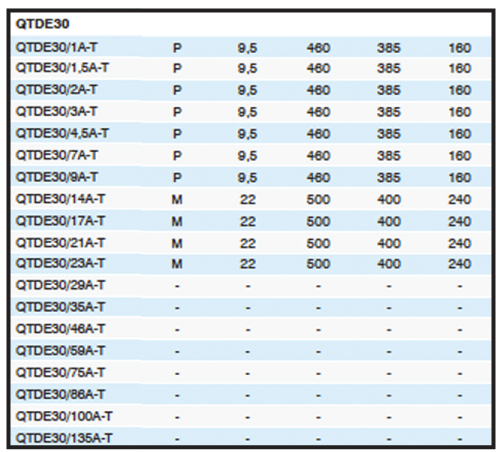

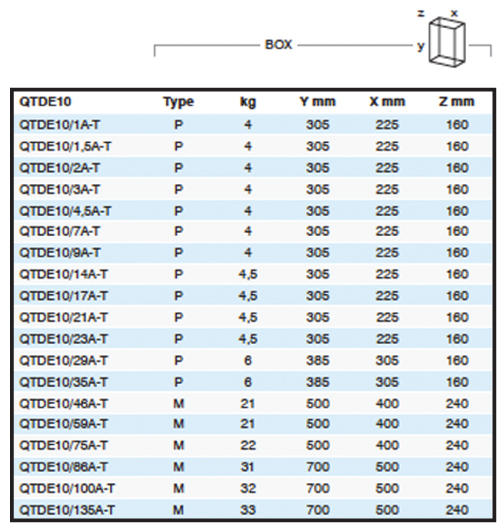

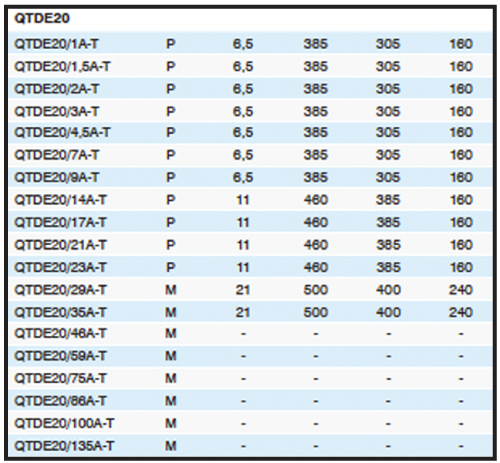

Dimensions & Weights

Dimensions & Weights

  Dimensions & Weights

 Dimensions & Weights

Circuit Diagrams

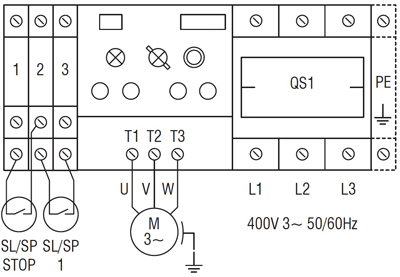

QTDE10

Circuit Diagrams

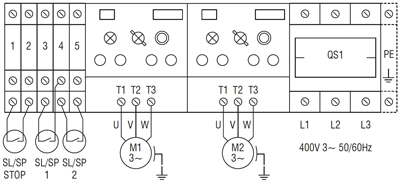

QTDE20

Circuit Diagrams

QTDE30

Circuit Diagrams

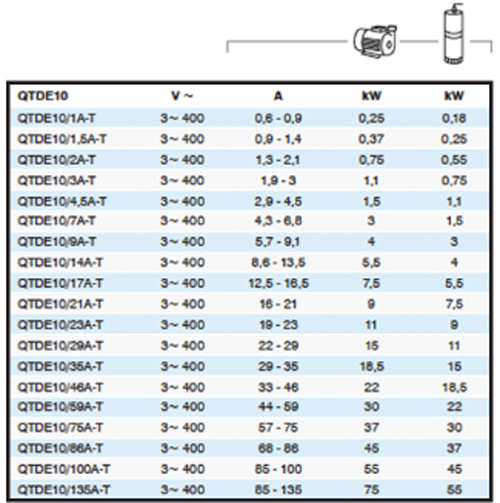

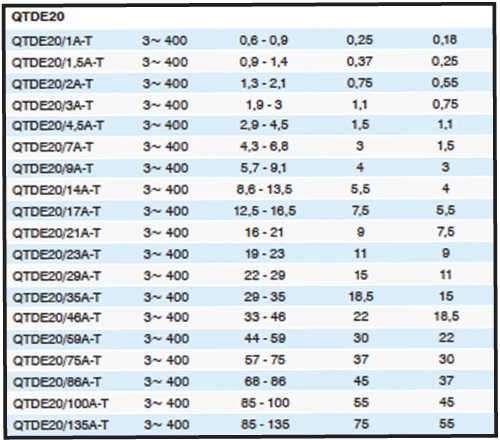

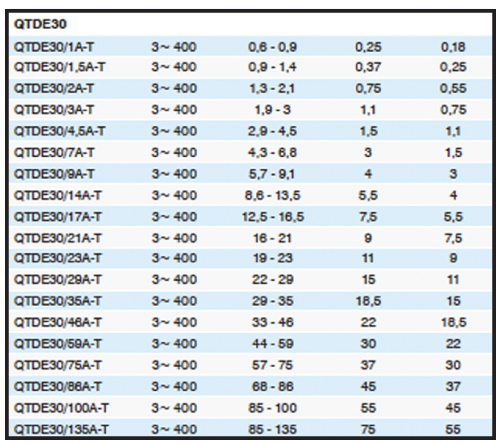

Electrical Data

Electrical Data

 Electrical Data

 Electrical Data
