EM 3 Vertical Close Coupled Multistage Pump E-tech Franklin Electric

EM 3 Vertical Close Coupled Multistage Pump E-tech Franklin Electric
  Zoom
Our Price:  £369.00(Exc. 20% VAT)
+


Part Number:  EM3/2
Brand:  Franklin Electric E-tech

Franklin Electric E-tech

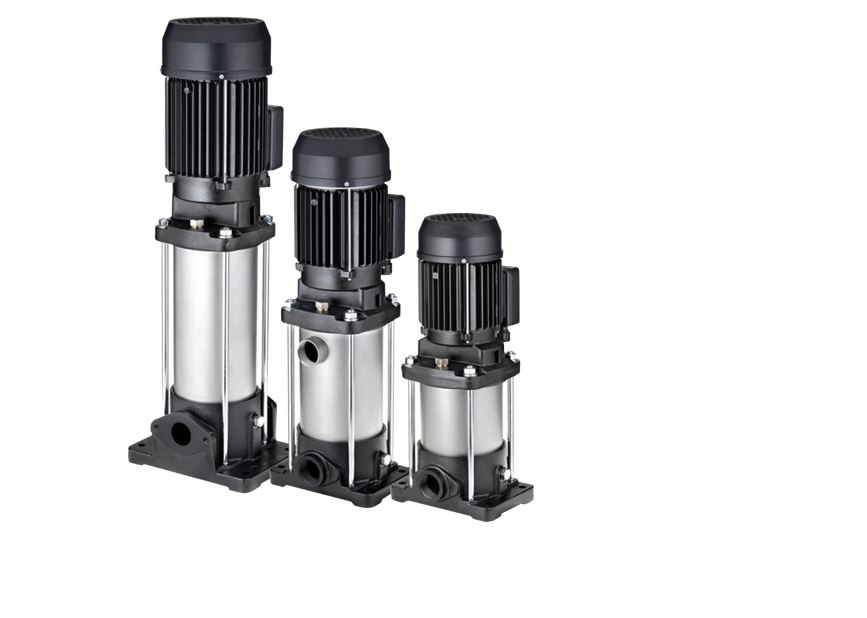

The EM 3 vertical close-coupled multi-stage pump is designed to meet your pressure boosting needs. The compact, robust design ensures high performance in a wide variety of applications. The EM Series is offered in three flow rates and different power sizes in 1-phase or 3-phase to make sure you have the right pump to fit your application.

The EM 3 vertical close-coupled multi-stage pump is designed to meet your pressure boosting needs. The compact, robust design ensures high performance in a wide variety of applications. The EM Series is offered in three flow rates and different power sizes in 1-phase or 3-phase to make sure you have the right pump to fit your application.

Features

  • Compact close-coupled design, robust and rust resistant / Superior efficiency and performances
  • Floating neck ring in PPS
  • Heavy duty oversize motor shaft
  • Impellers and diffusers are made of stainless steel in order to achieve durability
  • Easy maintenance
  • Strong and leak-proof motor rolling bearing fitted in the motor braket
  • Pumping of clear non-loaded fluids
  • Mechanical seal: Carbon/ceramic/EPDM

Pump Specifications

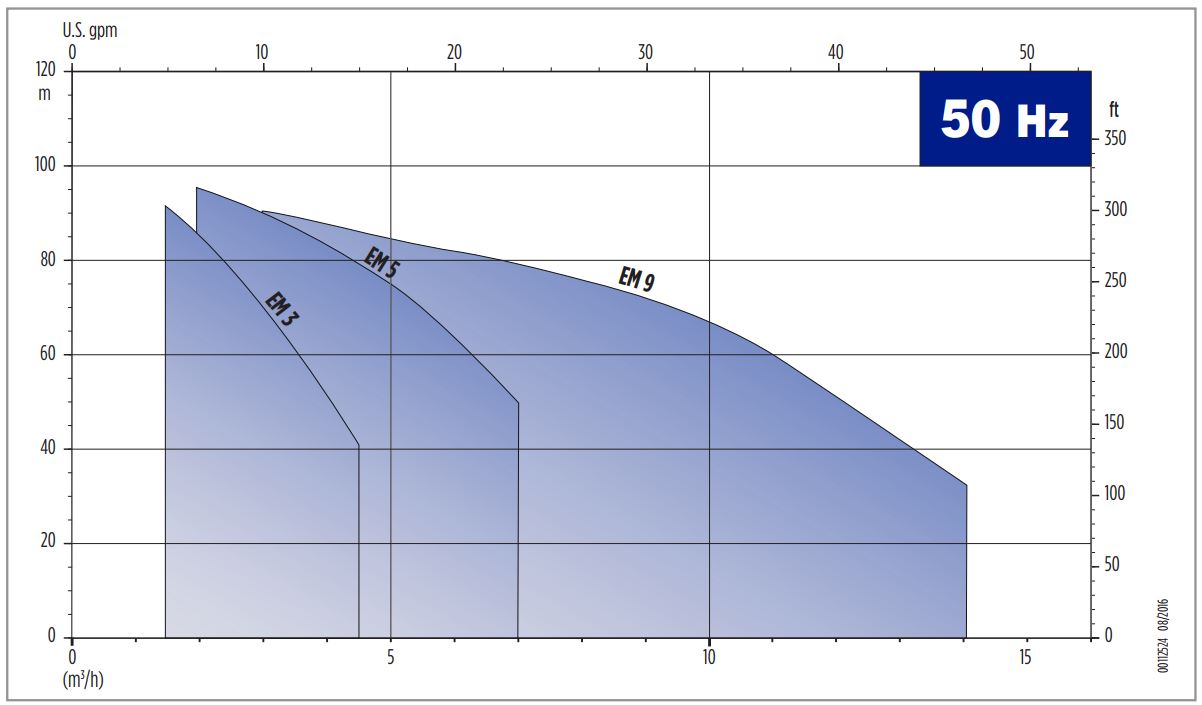

  • Capacities up to 14m³/h
  • Heads up to 104m
  • Discharge and Suction port: Threaded or Oval connections
  • Maximum working pressure 12 Bar
  • Direction of rotation: clockwise looking at the pump from the top down
  • Maximum ambient temperature 40°C
  • Liquid temperature range
  • Minimum: -15°C
  • Maximum: +90°C for domestic use (uses covered by CEI EN standard 60335-2-41); +110°C only for industrial use (uses other than those covered by CEI EN standard 60335-2-41)
  • The hydraulic characteristics are guaranteed, according to ISO standard 9906:2012, grade 3B

Motor Specifications

  • Single-phase or Three-phase IE3 motors
  • Asynchronous, TEFC (Totally Enclosed, Fan-Cooled)
  • 2 pole
  • IP55 protection motor
  • Insulation class F

Applications

  • Small domestic / industrial systems
  • Domestic water supply
  • Water distribution / pressure boosting
  • Irrigation / gardening
  • Sprinklers / Fire sprinklers/ Domestic fire sprinklers
  • Rainwater recovery
  • wash down unit
  • Cooling and chilling / heating and conditioning systems

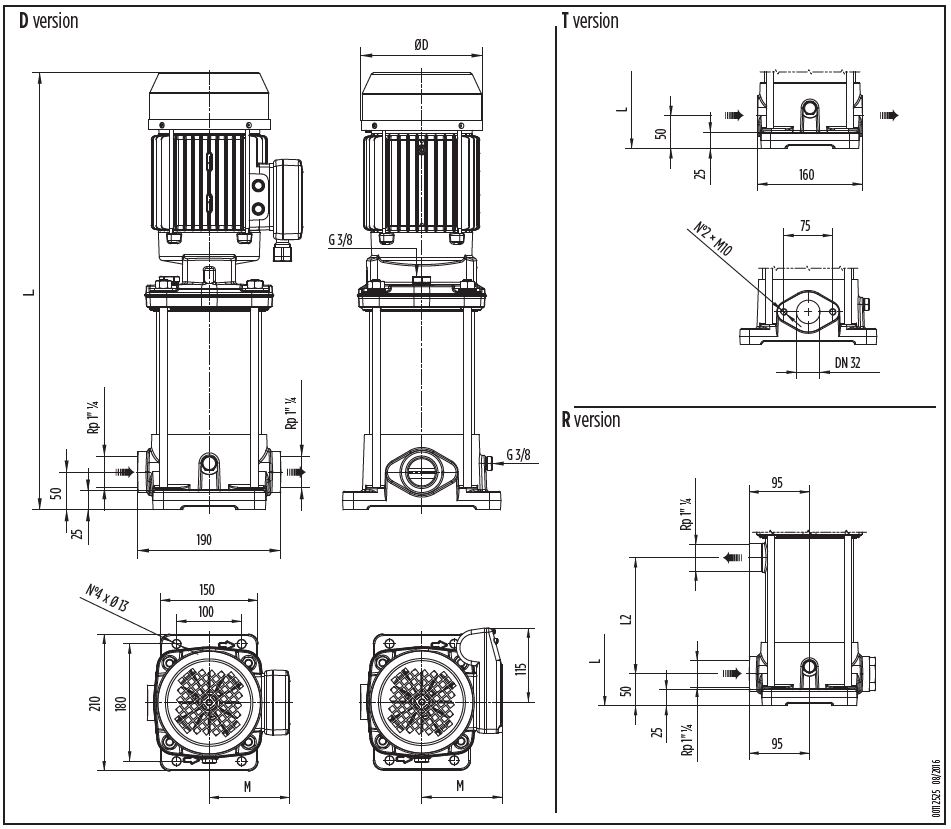

Version

D = In-line threaded


Product and technical Sheets

  Click here to download


Please state part number and specifications where applicable.
 *
 *
 *
 *
 *
 *
