ES 3 - 5" Submersible Pump 50Hz E-tech Franklin Electric

ES 3 - 5'' Submersible Pump 50Hz E-tech Franklin Electric
  Zoom
Our Price:  £365.00(Exc. 20% VAT)
+


Part Number:  ES3/3
Brand:  Franklin Electric E-tech
Pump Size:  5" pump
Max Flow:  4.5m3/h
Max Head:  88m
Series:  ES 3

Franklin Electric E-tech

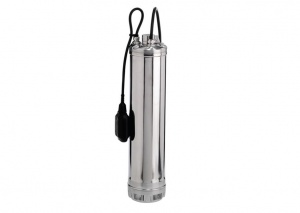

Franklin Electric E-tech Stainless Steel Close-Coupled Multistage Submersible Pump Full Stainless Steel Pump.

Franklin Electric E-tech Stainless Steel Close-Coupled Multistage Submersible Pump Full Stainless Steel Pump

Applications

  • Water distribution
  • Rainwater recovery
  • Irrigation / Gardening / Sprinklers
  • Dewatering
  • Wash down unit
  • Other various installations

Features

  • Easy installation: the single phase version have internal capacitor and thermic motor-protection thus is not necessary to connect the pump to a control panel
  • Compact close-coupled design, robust and rust resistant
  • Double mechanical seal separated by an oil* chamber for maximum motor protection. *In compliance with FDA - Food, Drug Administration - and the annex to G.U. no. 104 of 20/04/73 for oils in contact with food stuffs
  • Plug-in type power cable and level control (floater) for easy replacement
  • Heavy duty over size motor shaft
  • Stainless steel water proof capsule to protect the motor
  • Motor cooling is guaranteed by the pumped liquid

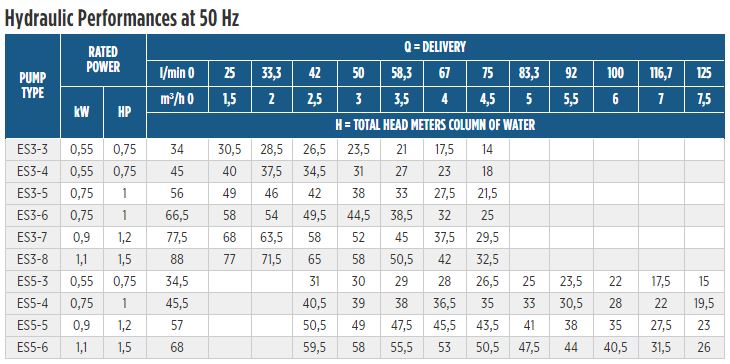

Specifications

  • Capacities: up to 7,5 m³/h at 50Hz / 9 m³/h at 60Hz
  • Heads: up to 88 m at 50Hz / 80,5 m at 60Hz
  • Discharge outlet 1¼” Rp or NPT
  • Maximum immersion depth: 20 m
  • Maximum allowable amount of sand 50 gr/m³
  • Maximum solids size up to 2 mm
  • Liquid temperature range -5° C to 40° C
  • Continuous operation either in vertical or horizontal position
  • 20 m of power cable type H07RN F is supplied with the standard version

Please see the 'downloads tab' to see full technical details.
