Max Flow 2.7m3/hr Type P

Max Flow 2.7m3/hr Type P
  Zoom
Our Price:  CALL US: +44(0)1473 462046(Exc. 20% VAT)
+

OP3 inch Pump MotorOP3 inch Pump Motor

Part Number:  T3-15-1p
Brand:  Subline
Pump Size:  3" Pump

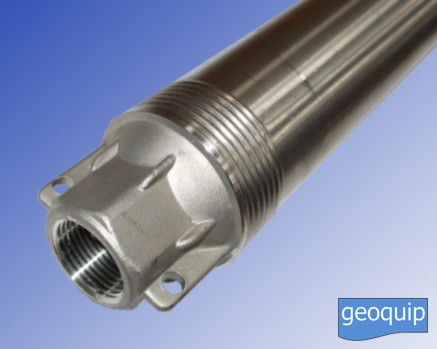

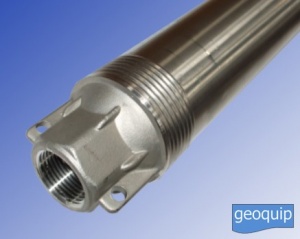

3" Borehole Submersible Pump

Stainless Steel 304 with Technopolymer Internals
Max Flow 2.7m3/hr

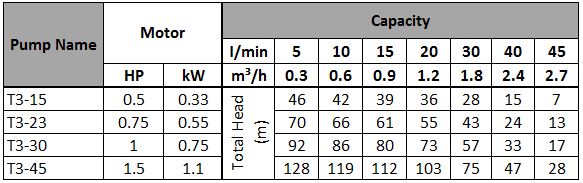

Performance Tables

Description
Submersible multistage centrifugal pumps for 3” wells, particularly suitable for water rising and distribution installations.

Applications
Water plants and systems for residential and industrial use, for continuous or intermittent duty operation. Pressurizing system. Irrigation plants.

Design features
Motor coupling flage and discharge head are made in stainless steel.
Incorporated non-return check valve.
Impellers and diffusers in Noryl and diffusers in self-lubricating Polyacetal.
Shell, pump shaft, coupling, cable shield, suction screen and all screws are in stainless steel.
Max ø pump 74 mm.

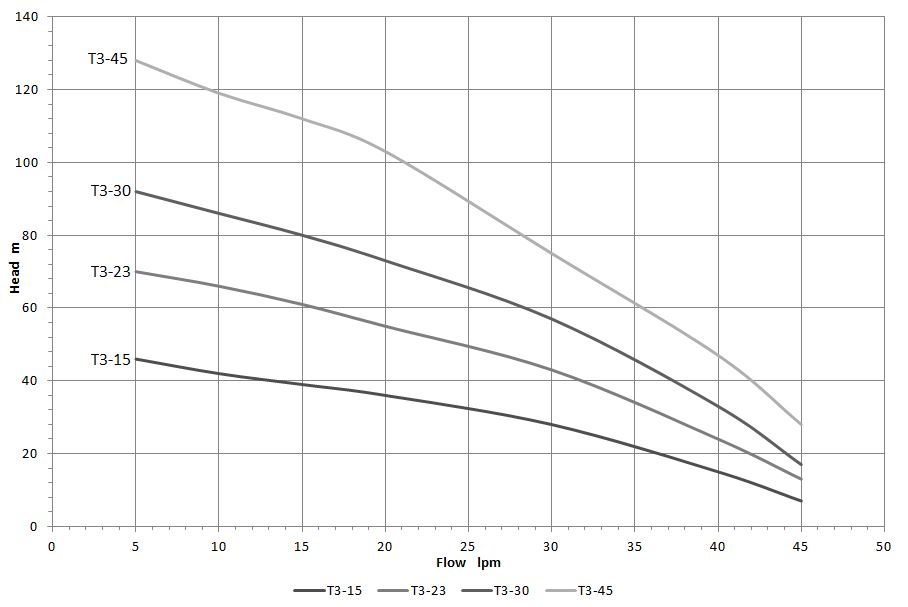

Performance Curves

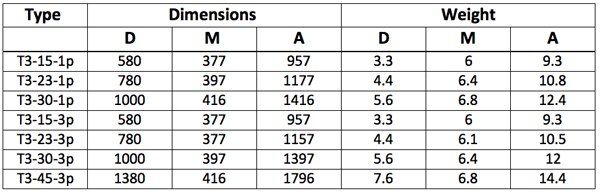

Dimensions and Weights

Ø = 1"




Please state part number and specifications where applicable.
 *
 *
 *
 *
 *
 *

You will receive emails on our latest news, products and services, please see our privacy policy for more information.
 *
Please add the two numbers

Related Products

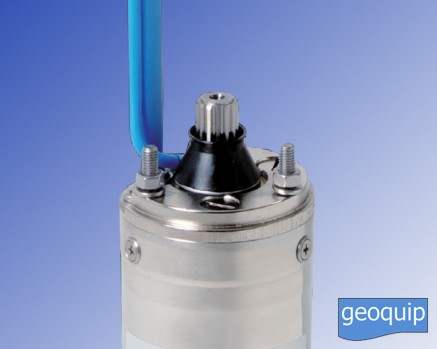

OP3 inch Pump Motor
