VS 97 - 8" Submersible Pump E-tech Franklin Electric

£3,157.00
Part Number
VS97/2 / ETH11970120
Brand
Franklin Electric E-tech
Series Max Flow
120m3/h
Series Max Head
504m
Series
VS 97
+

E-Tech VS Series 8" Submersible Well Pumps with stainless steel externals

VS97

Max Flow 120m3/hr   Max Head 504m

NOTE: Motors are sold separately, please see our range of motors here.

Franklin Electric E-tech
Information

Features

  • Stainless steel components for durability and robustness, guaranteeing longevity and trouble-free operation. Many design technical features make this pump range very compact and extremely reliable, to ensure applications in the most complex and severe conditions
  • External stainless steel sleeve to improve stiffness and assure permanent alignment of all the components
  • Motor adapter and discharge head may be removed without disturbing the impeller / diffuser stack
  • Built-in check valve and over size pump shaft
  • Easy maintenance without the need of special tools

Specifications

  • Flow: up to 120 m³/h at 50 Hz
  • Head: up to 500m (50 bar) at 50 Hz
  • Maximum allowable amount of sand 100 g/m³
  • Water temperature:
  • Minimum: -5 °C
  • Maximum: +60 °C for all versions
  • Rotation: counter clockwise when looking into the discharge
  • Pump can work continuously in vertical or horizontal position
  • Motor adapter in compliance with NEMA standard
  • Motors: see section Submersible Motors

Available on request

  • Pump material:
  • 316 Stainless steel (N) version (DIN/EN 1.4401)
  • 904L (R) version (DIN/EN 1.4539)
  • See specified material variant in materials/fluids compatibility table on page 50 in the Product Catalog
  • Double cable guard
  • Discharge head:
  • Rp 4” for I and N versions
  • Rp 6” for R version

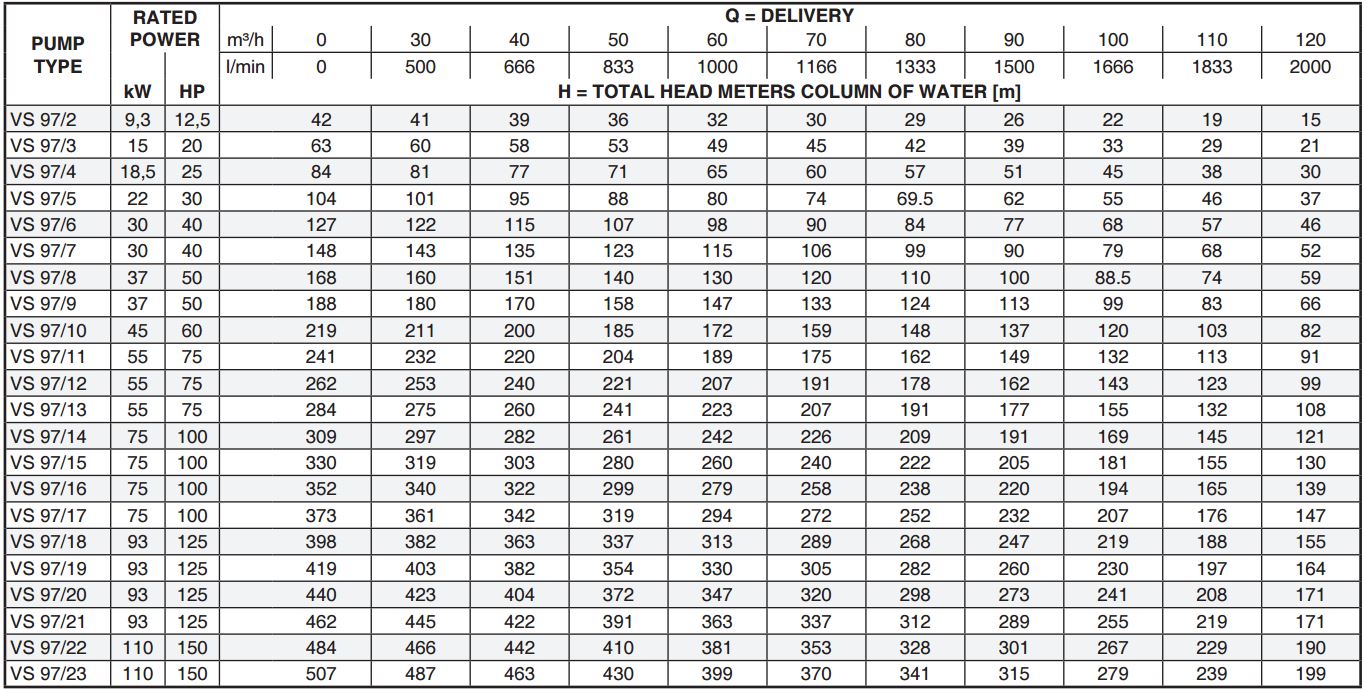

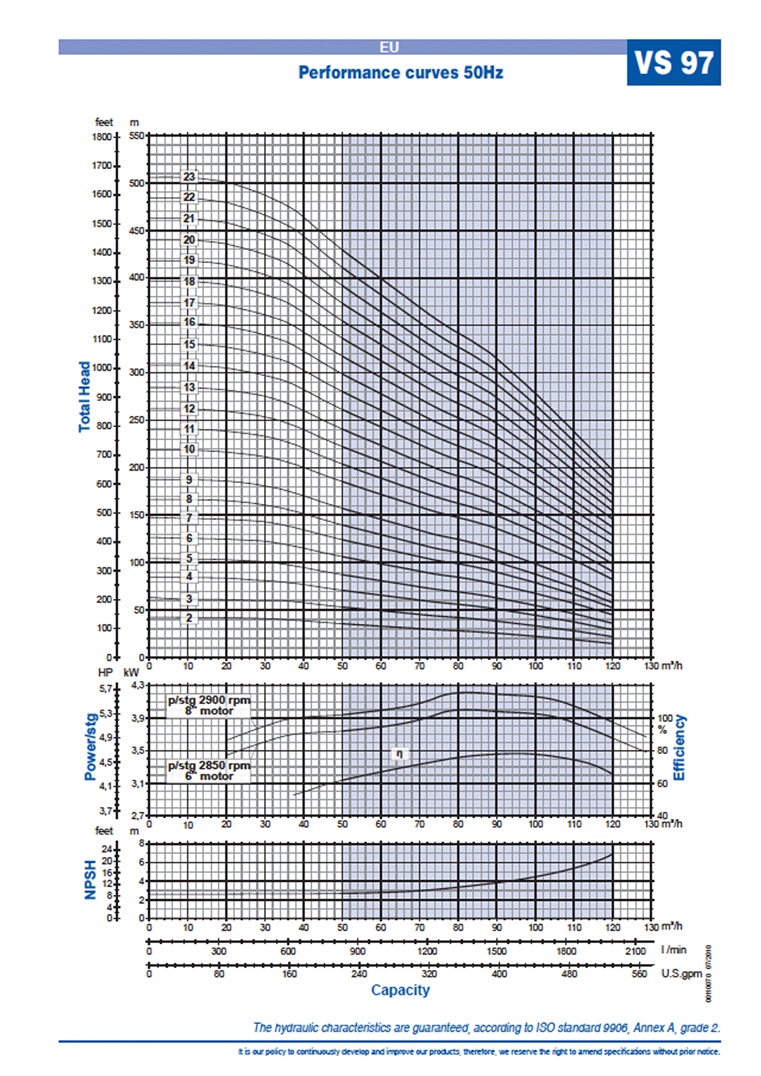

Performance Tables

Applications

  • Municipal water works
  • Water distribution and pressure boosting
  • Irrigation and sprinkler systems, water treatment plants, filtration and reverse osmosis
  • Industrial cooling and processing
  • Mining industry, drainage and dewatering
  • Fountains
  • Fire-fighting equipment

FEATURES

  • Stainless steel components for durability and robustness, to increase run-time and trouble-free operation. Many design technical features make this pump range very compact and extremely reliable
  • Three-dimensional twisted blades of the impeller and the diffuser design to enhance efficiency and to reduce energy consumption
  • External stainless steel sleeve to improve stiffness and assure permanent alignment of all the components
  • Motor adapter and discharge head may be removed without disturbing the impeller/diffuser stack
  • Built in check valve and over size pump shaft
  • Very compact and extremely reliable to resist to the most complex and severe conditions
  • Easy maintenance without the need of special tools

SPECIFICATIONS

  • Capacities up to 150m3/h at 60Hz
  • 50 Bar (500 m) at 60Hz
  • Maximum allowable amount of sand 100 gr/m3
  • Water temperature range: from -5ºC to 60ºC
  • Rotation: counter clockwise when looking into the discharge
  • Motor adapter in compliance with NEMA standard
  • Pump can work continuously ion vertical or horizontal position
  • Motors: See our motors section

AVAILABLE OPTIONS

  • 316 stainless steel (N) version (DIN/EN 1.4401)
  • Double cable guard
  • NPT 4" outlet adapter
  • NPT 5" outlet adapter

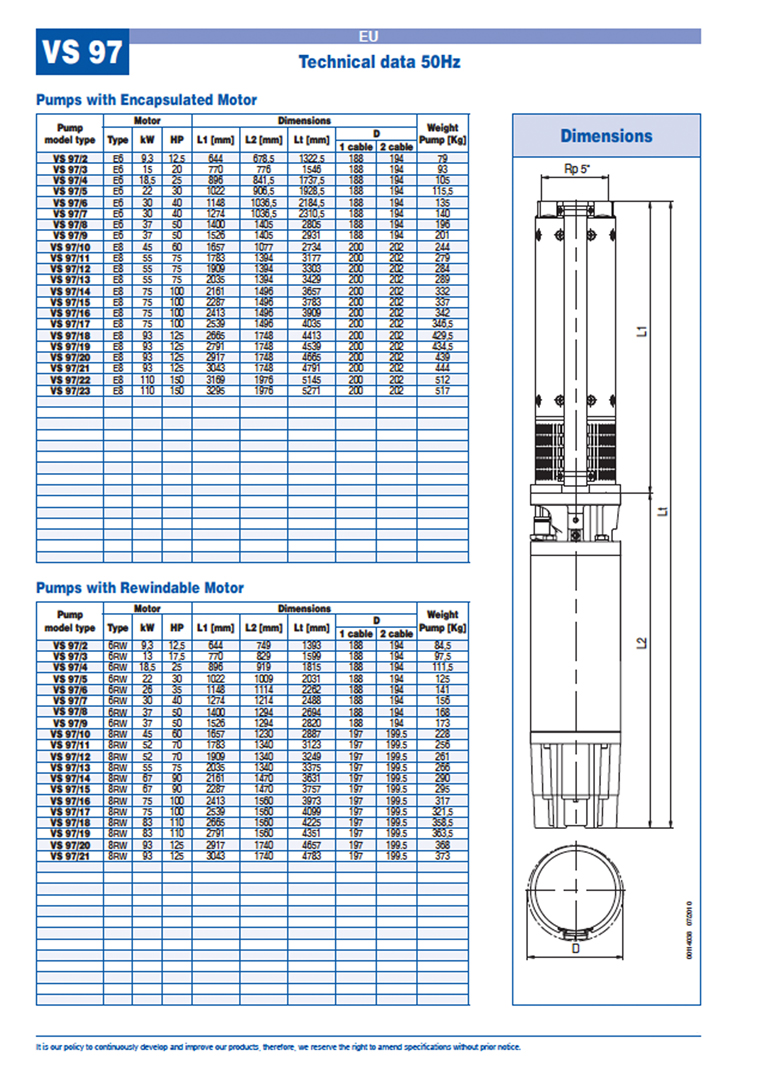

Technical
