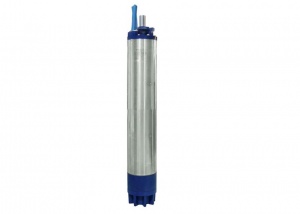

These 12-inch rewindable motors, manufactured in ISO 9001 certified facilities, are built for dependable operation in 12-inch diameter or larger water wells.


These 12-inch rewindable motors, manufactured in ISO 9001 certified facilities, are built for dependable operation in 12-inch diameter or larger water wells. It is fitted with water lubricated radial and thrust bearings for maintenance-free operation. The motor is filled with a special FES93 fluid, providing frost protection down to -15 ºC storage temperture.

A special diaphragm ensures pressure compensation inside the motor.

The Sand fighter® SiC seal system is standard. For applications in aggressive media, motors made of 316SS are available.

Product Advantages

  • Easy to assemble with 12" double flange
  • Cable material according to drinking water regulations (VDE / ACS / KTW approved)
  • Sand fighter® SiC seal system for high performance in sand
  • High efficiency electrical design for low operation cost
  • All motors prefilled and 100% tested
  • Max. storage temperature -15 °C - + 60 °C
  • Design for retrofitable PT100 sensor
  • Non contaminating FES 93 filled design

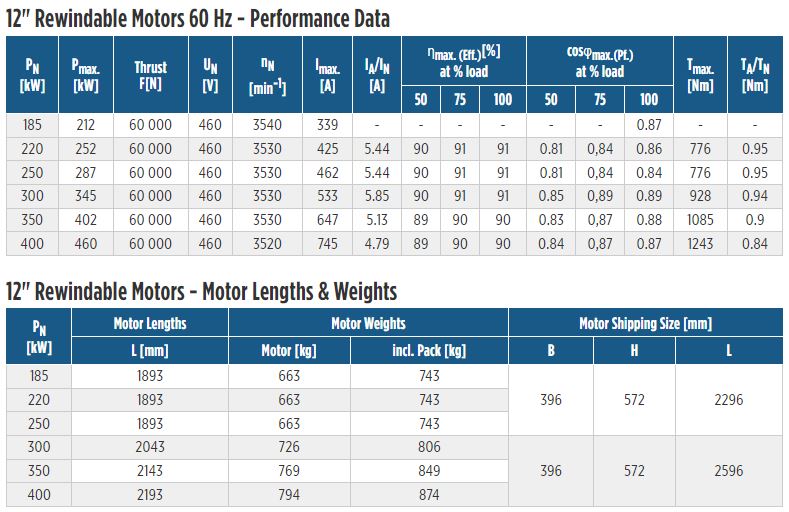

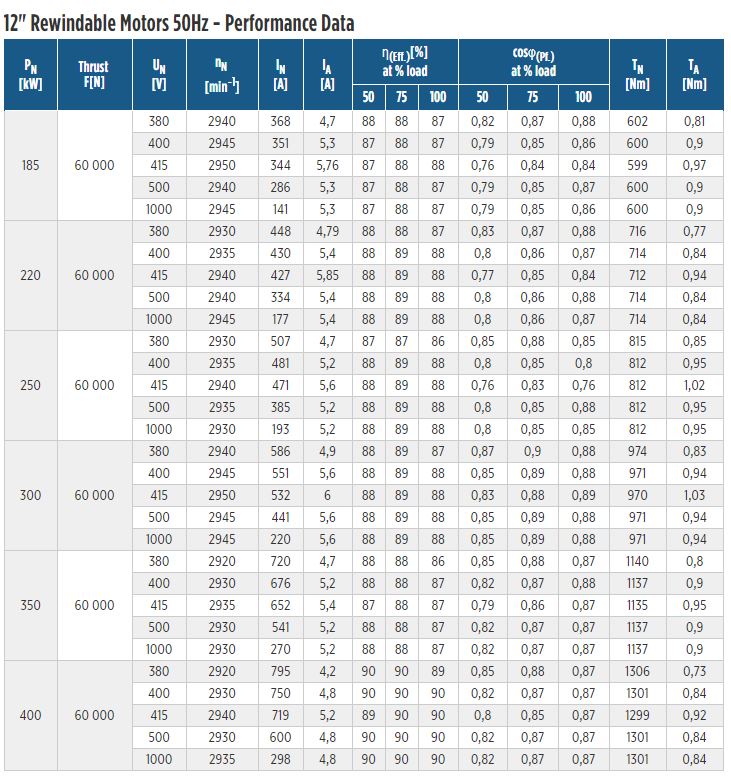

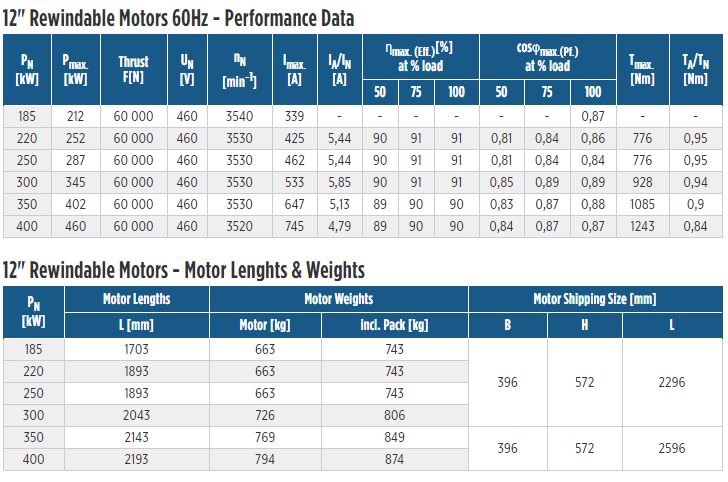

Technical Specifications

  • 185 - 400kW
  • 12-inch double flange
  • Protection: IP 68
  • Starts per hour: max. 5
  • Installation position: vertical / horizontal
  • DOL - start / YΔ - start (pos. of cables 90°)
  • Motor Lead in 6 m length (KTW approved)
  • Standard voltage
  • 380-415 V/50 Hz, 460 V/60 Hz
  • 500 V/50 Hz
  • 1000 V/50 Hz
  • Voltage tolerance 50 Hz: -10% / +6% UN [380-415 V = (380-10%) – (415+6%)]
  • Voltage tolerance 60 Hz: ±10% UN
  • Motor protection: Select thermal overloads according to EN 61947-4-1
  • max. ambient temperature 30 ºC with a min. cooling flow:
  • v = 0,5 m/s

Options

  • 80 kN thrust load
  • Other voltages
  • PT 100 temperature sensor (sold separately)
  • Special lead lengths upon request
