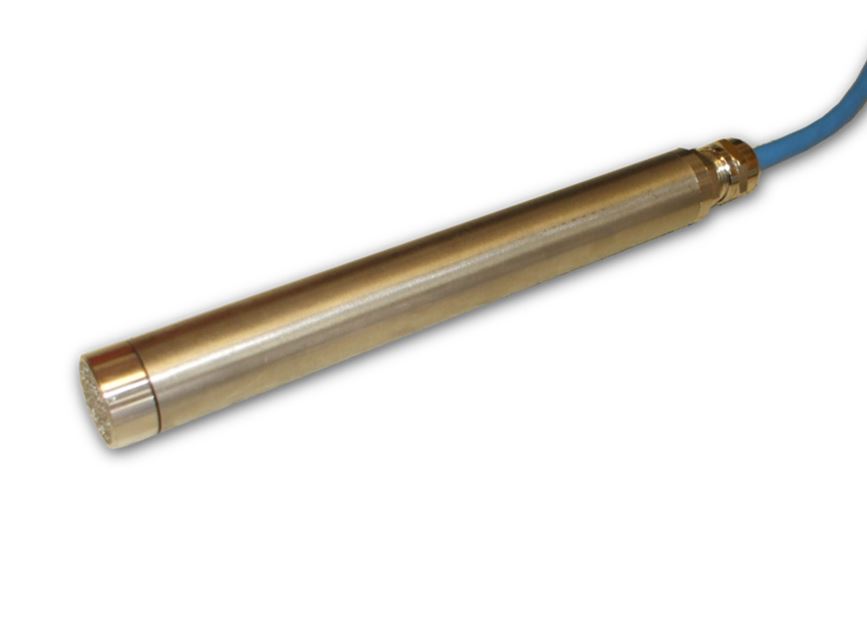

20mm Slimline Pressure Transducer

20mm Slimline Pressure Transducer
  Zoom
Our Price:  CALL US: +44(0)1473 462046(Exc. 20% VAT)

These submersible pressure transducers are used for water pressure measurements of saturated soils, boreholes, reservoirs and wherever it is necessary to achieve precise and fast measurements.

Applications

These submersible pressure transducers are used for water pressure measurements of saturated soils, boreholes, reservoirs and wherever it is necessary to achieve precise and fast measurements.

Two models are available;

VER-R

Relative Pressure Piezometer VER-R provides with hydrostatic pressure measures in slotted pipes, wells and dams. Readings are relative to the atmospheric pressure. The transducer diaphragm is connected to the atmosphere through a capillary vent pipe which is placed in the same cable used for the power supply and signal transport.

The piezometer can be provided with porous ring or frontal filter made of sinterized stainless steel or ceramic.

VER-A

Absolute Pressure Piezometer VER-A can measure pore water pressure in saturated soils as well as over pressure due to loads, road embankments, etc. Data recording allows to draw out pressure changes over time. Bar measure is not advised.

Both models can be provided with an RTD or a semiconductor temperature sensor.

Advantages

These transducers may be ordered with custom wire and full scale calibration. Electronic components with resin to assure a long term waterproof seal.  Short delivery times available.

Specifications

  • Full scale 1, 2, 5, 10, 20 bar or 2, 5, 10, 20, 50, 100m H20
  • Overpressure 150% FS
  • Output 4-20 mA
  • Input 13-24 Vdc
  • Non linearity 0.3% FS
  • Long-term stability 0.1% FS (1 anno)
  • Operating temperature 0 + 70⁰C
  • Body and diaphragm made of stainless steel AISI316
  • Diameter 22mm

Cable

  • Shielded 2 x 2 x 0.35
  • Standard colour cable red/black/green
  • Waterproof connector on request
  • PVC* PE PUR sheath
  • Barometric compensation capillary (relative pressure model)

Please state part number and specifications where applicable.
 *
 *
 *
 *
 *
 *
