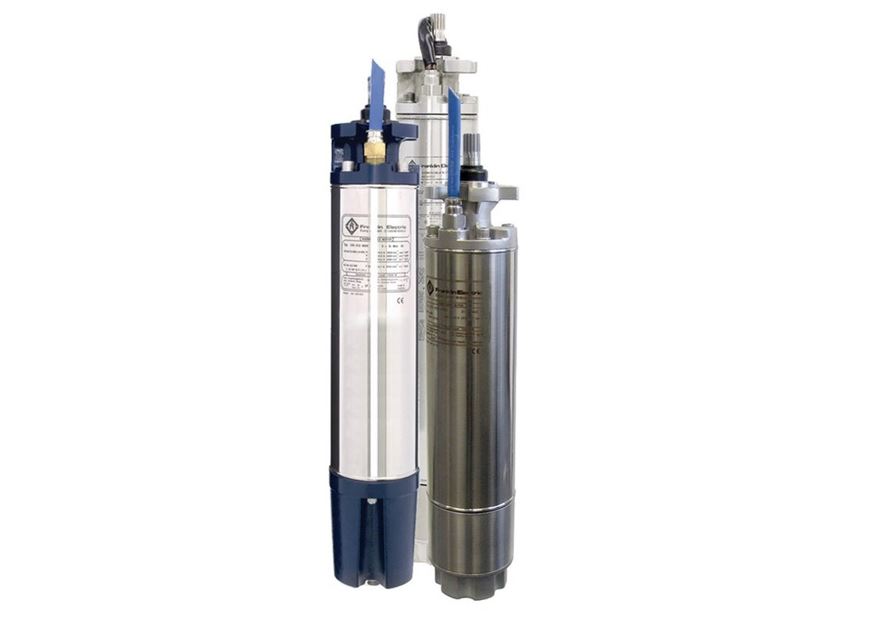

6 inch 3p Encapsulated Pump Motor 304SS Franklin Electric

6" 3p Encapsulated 304SS Franklin Electric motor

Specifications:

• Hermetically sealed stator, anti track, self healing stator resin prevents motor burn out
• 37 and 45 kW Motors up to 50 °C ambient temperature
• Removable “Water Bloc” lead connector
• Cable material according to drinking water regulations (VDE / ACS / KTW approved)
• Sand fighter® Motor with SiC-Mechanical Seal
• High efficiency electrical design for low operation cost
• All motors prefilled and 100% tested
• Max. storage temperature -15 °C - + 60 °C
• Non contaminating FES91 -filled design
• 45kN High Thrust Versions

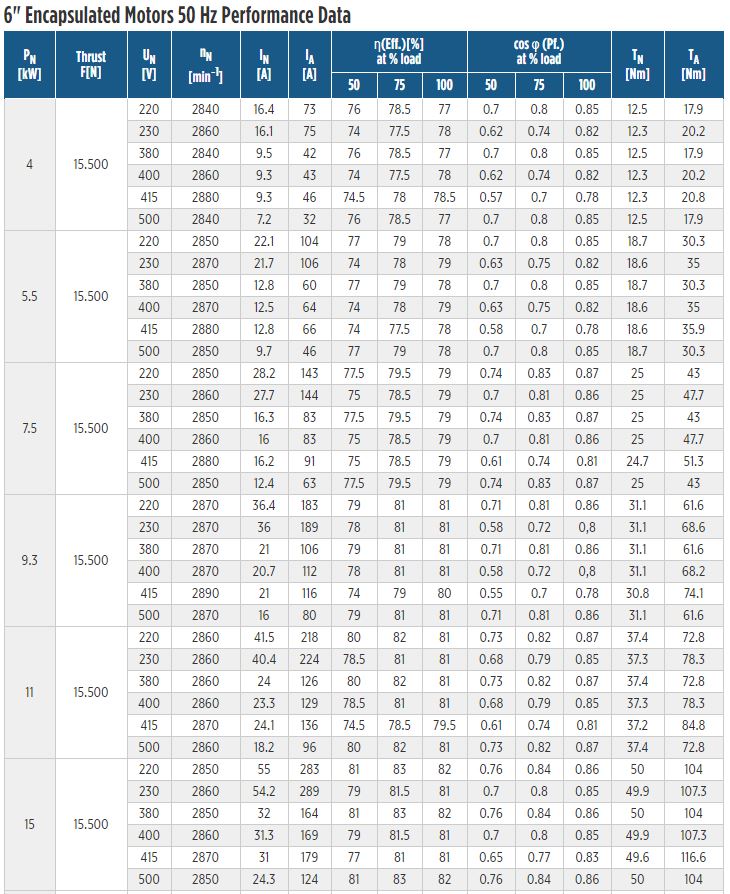

Technical Specification:

• 4 - 45 kW
• 6" NEMA flange
• Protection: IP 68
• Starts per hour: max. 20
• Installation: vertical/horizontal
• Standard Voltage: 380-415 V/50 Hz, 460 V/60 Hz
• Voltage tolerance 50 Hz: -10% / +6% UN [380-415 V = (380-10%) – (415+6%)]
• Voltage tolerance 60 Hz: ±10% UN
• Motor protection: Select thermal overloads according to DIN 61947-4-1
• Insulation: Class F
• Rated ambient temperature: 4- 30 kW up to 30 °C; 37 & 45 kW up to 50 °C
• Cooling flow: min. 0,16 m/s
• Motor lead in 4m length (VDE / ACS / KTW approved)

Options:

• Other voltages
• YΔ - start (pos. of cables 90°)
• 45kN High Thrust Version (Standard in 37 / 45kW Motors)
• Motors complete in 304SS and in complete 316 SS
• PT 100 temperature sensor (sold separately)
• Special Lead lengths up to 50 m
• Built-in PTC temperature sensor
• Built-in SubMonitor Transmitter (standard for 37 & 45 kW)

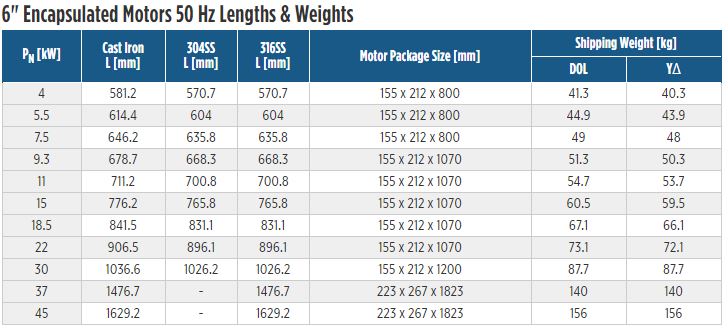

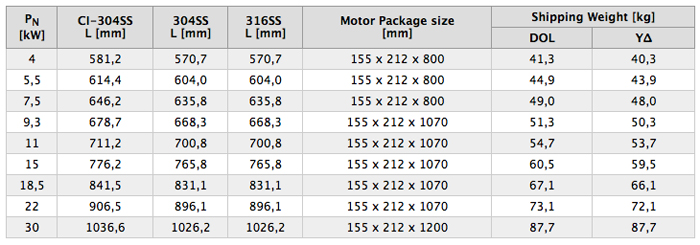

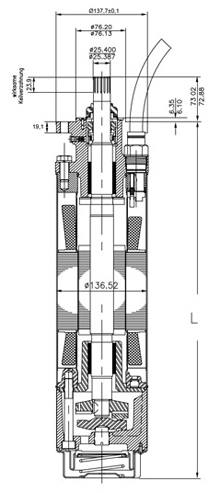

Dimensions and Weights:

Product Sheet

  Click here to download product sheet
