6 inch Rewindable Motor Franklin Electric

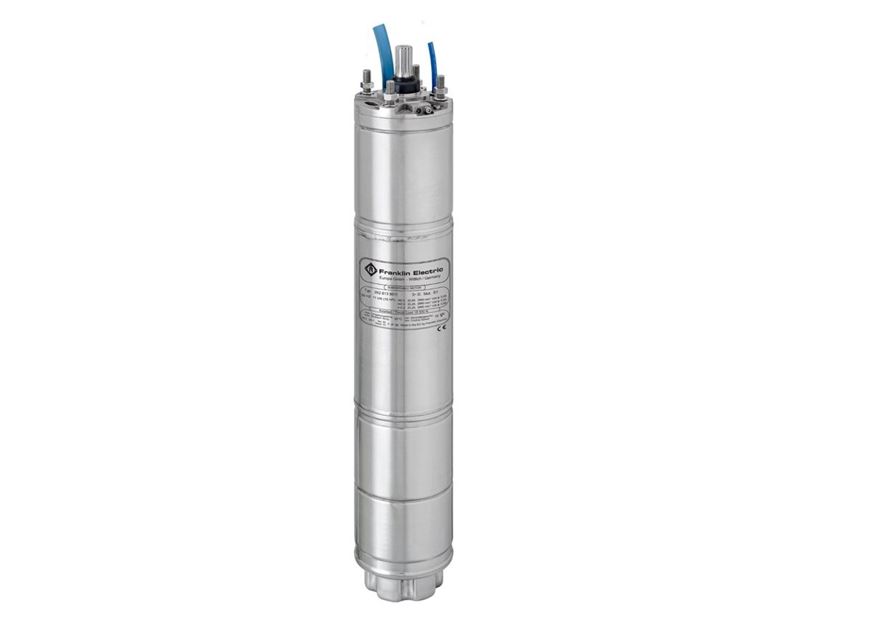

6" Rewindable Franklin Electric motor

Specifications:

• Cable material according to drinking water regulations (KTW approved)
• Sand slinger and mechanical seal for high performance in sand
• High efficiency electrical design for low operation cost
• All motors prefilled and 100% tested
• Max. storage temperature -15 °C - + 60 °C
• Design for retrofitable PT100 sensor
• Approved Franklin Electric Kingsbury Type thrust bearing
• Non contaminating FES 93 filling
• Sand fighter® SiC seal system is standard
• Standard Motors complete 304SS

Technical Specification:

• 6-inch NEMA flange with Studs (M 12)
• Protection: IP 68
• Starts per hour: max. 20
• Installation position: vertical / horizontal (37 kW motors may not be installed horizontally)
• Motor Lead in 4m length (KTW approved)
• Voltage tolerance 50 Hz: +6% / -10%
• (Standard: 415 + 6% = 440 V, 380 – 10% = 342 V)
• Voltage tolerance 60 Hz: +/-10%
• Standard: 460 + 10% = 506 V, 460 –10% = 414 V)
• Motor protection: Select thermal overloads according to EN 61947-4-1
• DOL / YΔ - start (pos. of cables 90°)
• Standard motor with PVC winding insulation (37 kW in standard with PE2/PA insulation) for max. ambient temp. of 30 ºC with a min.cooling flow:
• 4 kW - 15 kW v = 0,2 m/s
• 18,5 kW - 37 kW v = 0,5 m/s

Options:

• Other voltages
• Motors in complete 316SS and 904 L
• Motors up to 30kW with PE2/PA winding insulation for max. ambient temp. of 50 °C at the same cooling conditions as standard (37 kW max. 4 5°C)
• PT 100 temperature sensor (sold separately)
• Lead in different lengths up to 50 m

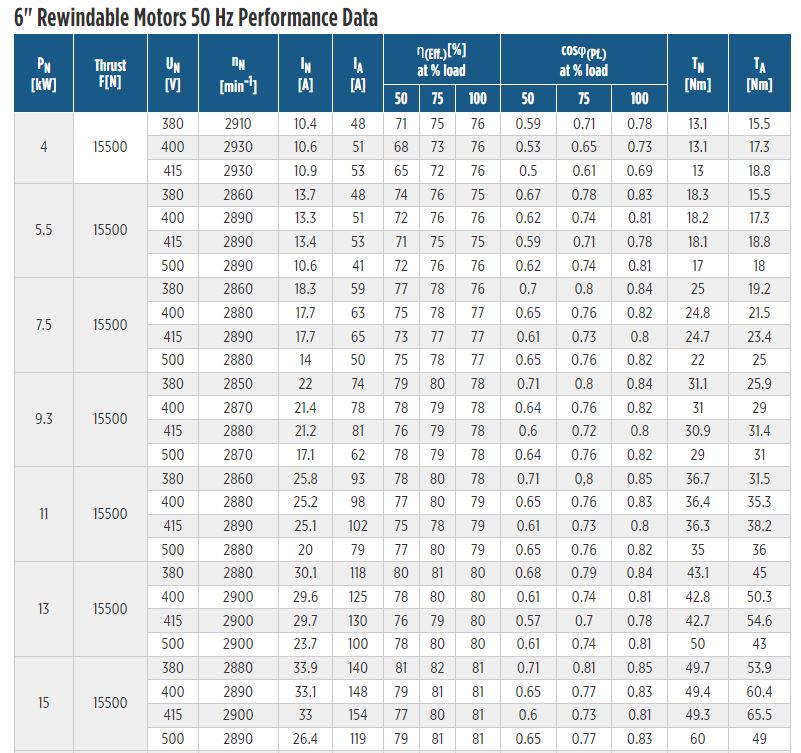

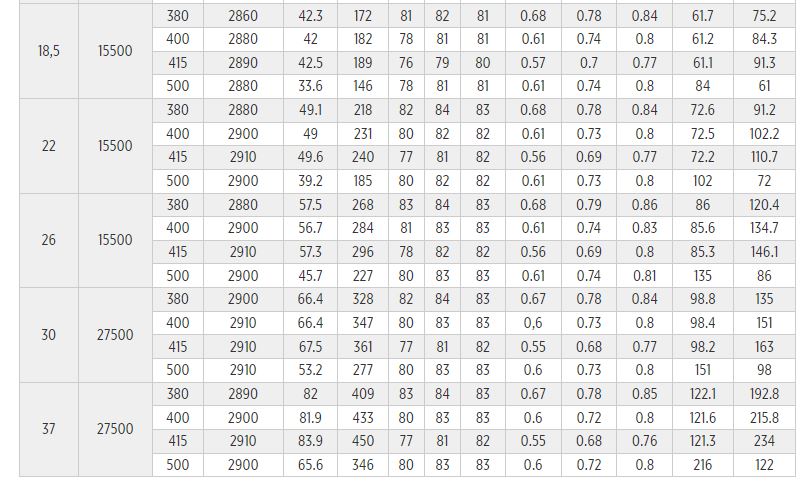

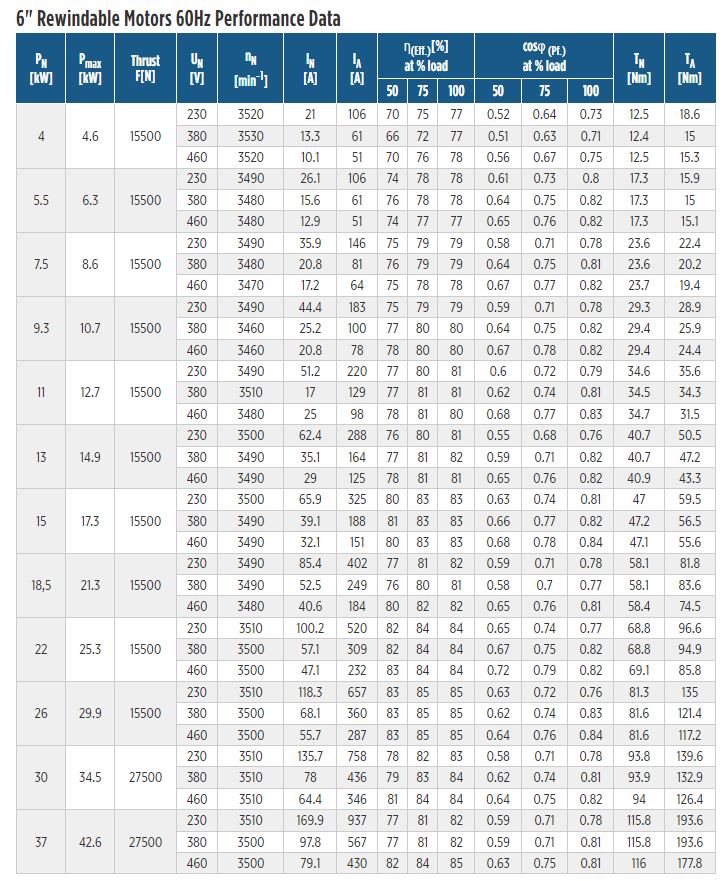

Performance tables:

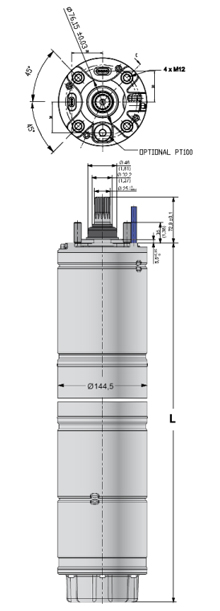

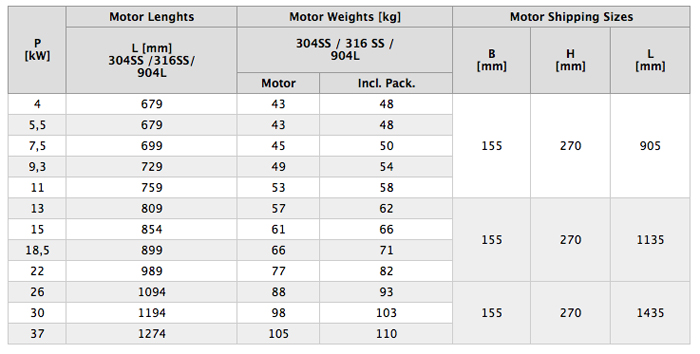

Dimensions and Weights:

Product Sheet

  Click here to download product sheet
