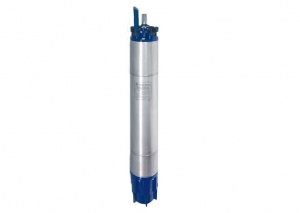

8 inch Rewindable Pump Motor Franklin Electric

8" rewindable Franklin Electric motors, manufactured in ISO 9001 certified facilities, are built for dependable operation in 8" diameter or larger water wells. It is fitted with water lubricated radial and thrust bearings for maintenance-free operation. The motor is filled with a special FES93 fluid, providing frost protection down to -15ºC storage temperture.

A special diaphragm ensures pressure compensation inside the motor.The Sand fighter® SiC seal system is standard. For applications in aggressive media, motors made of 316SS and 904L are available.

Specifications

• Hermetically sealed stator, anti track, self healing stator resin prevents motor burn out
• Removable Water Bloc™ lead connector
• Cable material according to drinking water regulations (VDE / ACS / KTW approved)
• Sand slinger and Mechanical seal for high performance in sand
• High efficiency electrical design for low operation cost
• All motors prefilled and 100% tested
• Max. storage temperature -15 °C - + 60 °C
• Non contaminating FES91 -filled design

Technical Specification:

• 30 - 150 kW
• 8" NEMA double flange
• Protection: IP 68
• Starts per hour: max. 10
• Installation: vertical/horizontal
• Standard Voltage: 380-415 V/50 Hz, 460 V/60 Hz
• Voltage tolerance 50 Hz: -10% / +6% UN [380-415 V = (380-10%) – (415+6%)]
• Voltage tolerance 60 Hz: ±10% UN
• Motor protection: Select thermal overloads according to DIN 61947-4-1
• Insulation: Class F
• Rated ambient temperature: 30 °C
• Cooling flow: min. 0,16 m/s
• Built-in SubMonitor Transmitter
• DOL- start / YΔ - start (pos. of cables 90°)
• Motor lead in 8 m length (VDE / ACS / KTW approved)

Options:

• Other voltages
• Motors complete in 316 SS
• PT 100 temperature sensor (sold separately)
• Sand fighter® Motor with SiC- Mechanical seal (Standard in 316SS Motors)
