Max Flow 36m3/hr P Type

Zoom

Our Price: CALL US: +44(0)1473 462046(Exc. 20% VAT)

–+

Enquiries

Pump:

Part Number: AP6F3
Pump Size: 6" Pump
Max Flow: 36m3/hr
Max Head: 654m

6" Borehole Submersible Pumps - Plastic Internals
Max Flow 36m³/hr Max Head 654 m

Information
Technical
Downloads
ENQUIRIES

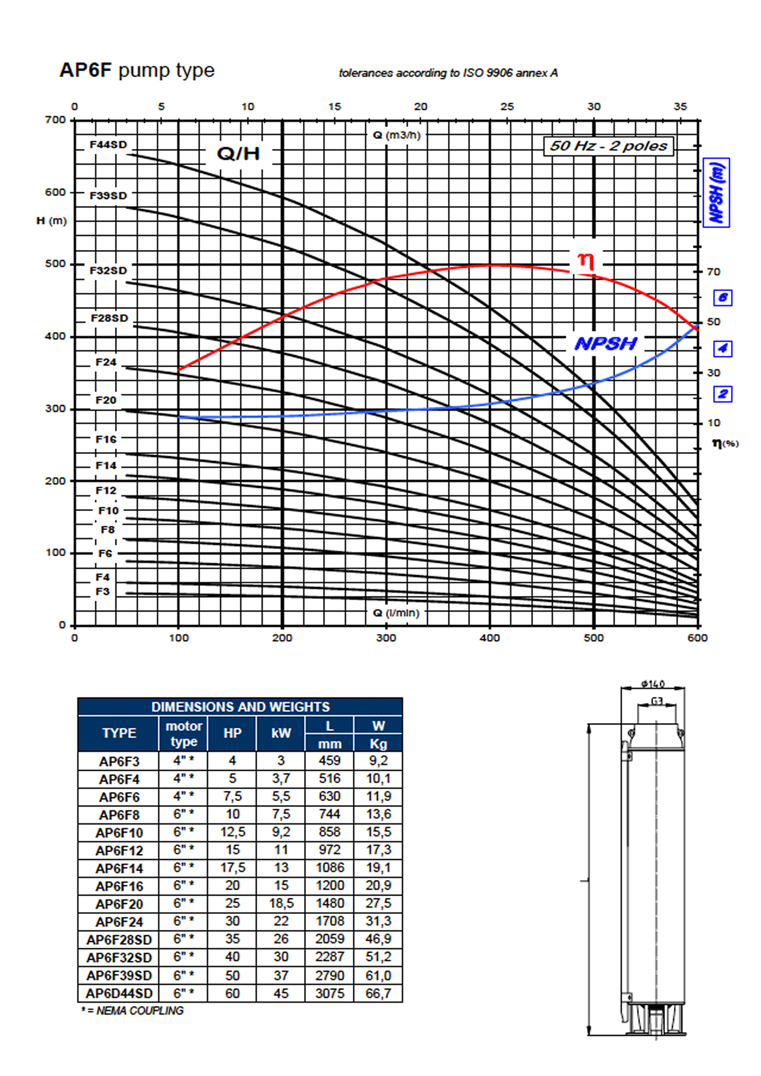

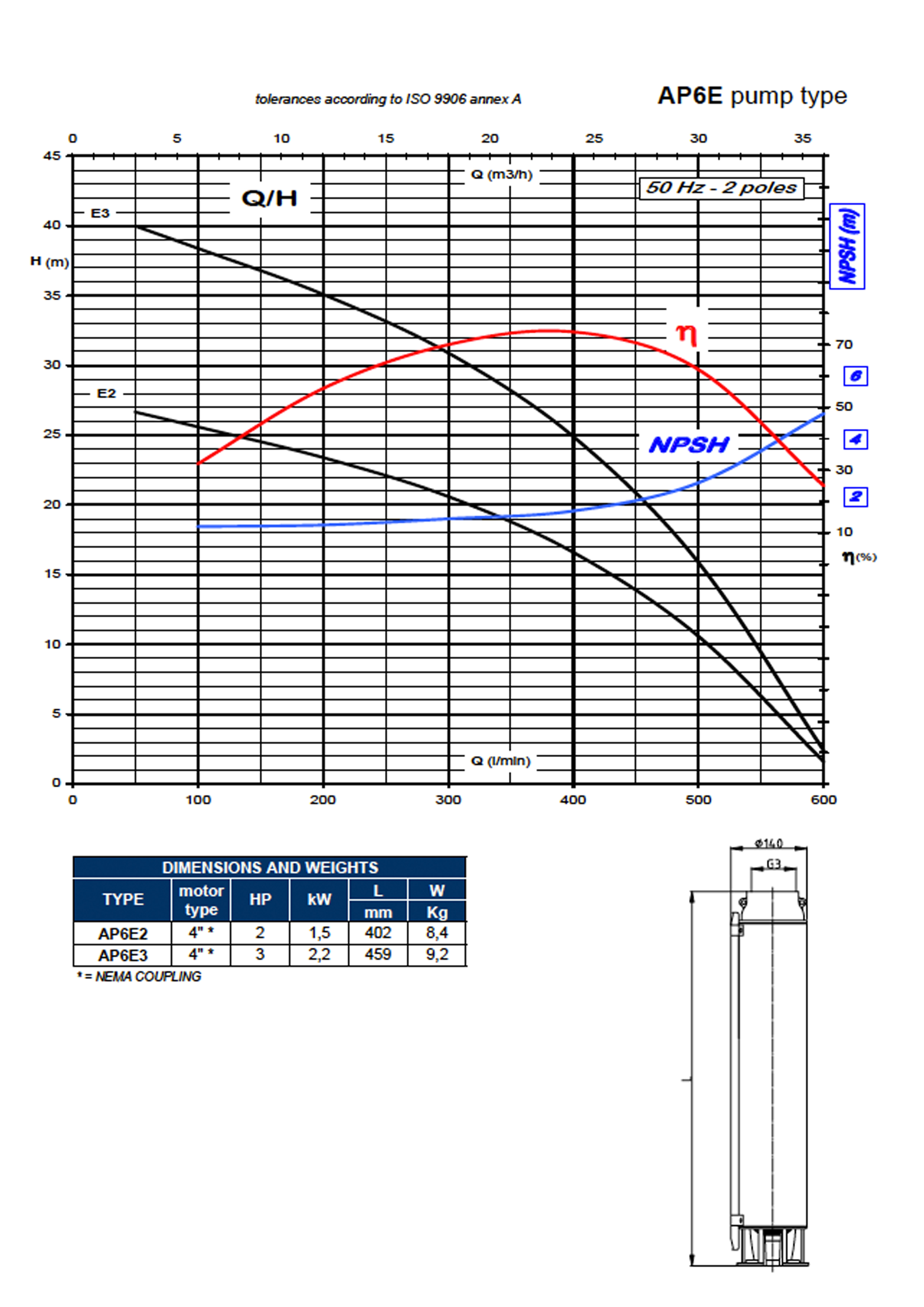

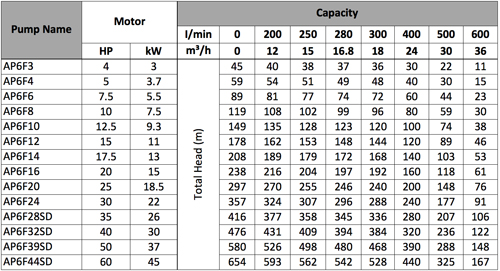

Performance Tables

Applications

Domestic and Industrial water supply
Acqueducts
Fire-fighting systems
Pressurising water system
Shower and running irrigation
Several plants

Materials

AISI 304 stainless steel for top and bottom
AISI 420 stainless steel for shaft
AISI 430F stainless steel for coupling
AISI 304 stainless steel for external jacket
Diffuser casing, screen and cable guard
PA66 fiber glass reinforced for bushes
Noryl for impellers and diffusers

Operating data

Capacity up to 66m3/h
Head up to 730m
Power up to 43kW
Max. water temperature 30dc
max. sand content: 60g/m3
Direction of rotation: CCW facing delivery side
Min. recommended head of water above pump suction: 1m


Quote Required?	Yes
Do you have a question about this product?
	Please state part number and specifications where applicable.
Email address:	*
Phone number:	*
Your name:	*
Company name:	*
Country:	*
City:	*
Would you like to sign up to our newsletters?	Yes
	You will receive emails on our latest news, products and services, please see our privacy policy for more information.

	*
	Please add the two numbers

Enquiries

CERT NO. FS 668246

Borehole Submersible Water Pumps
3 inch Type P 4 inch Type VS 4 inch Type P 4 inch Type SE 4 inch Type F 5 inch Pumps 6 inch Type P 6 inch Type SS 8 inch Type SS 10 inch Type SE

NEW RANGE

NEW

High Efficiency Pump System 6 inchCALL US: +44(0)1473 462046

In consideration of environmental relief and energy saving Franklin Electric E-tech developed a High Efficiency 6" Submersible Borehole System, consisting of a synchronous submersible NEMA motor associated variable frequency drive and output filter.
