Max Flow 10.8m3/hr Type SE

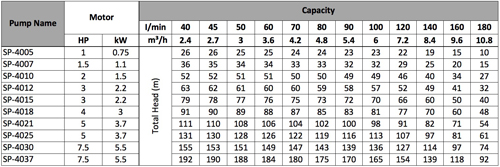

Performance Tables

Applications

• Water distribution / pressure boosting
• Rainwater collection
• Irrigation / Gardening / Sprinklers
• Dewatering
• Wash down unit
• Fountains
• Landfill leachate and condensate knock out pots
• Other various installations

FEATURES

• Compact close-coupled design, robust and rust resistant
• Impellers and diffusers are made of stainless steel in order to achieve durability, superior efficiency and the highest performances
• Plug-in type power cable for easy replacement
• Field servicable

SPECIFICATIONS

• Capacities up to 18 m³/h at 50Hz
• Heads up to 33 Bar at 50Hz
• Discharge outlet 11/4" BSP & 2" BSP dependent on model
• Maximum working pressure 35 Bar
• Maximum allowable amount of sand 50 gr/m³
• Maximum solids size up to 2 mm
• Liquid temperature range -5° C to 40° C
• Continuous operation either in vertical or horizontal position
• Motor range: 0,37kW to 7.5kW
• Maximum number of starts per hour: 20

AVAILABLE OPTIONS

• Single-phase up to 2.2kW or three phase motors for all models
• Various voltages and frequencies
• Three phase 220-230V
• Various power cable lengths
• Sumoto (as standard) or Franklin Motors

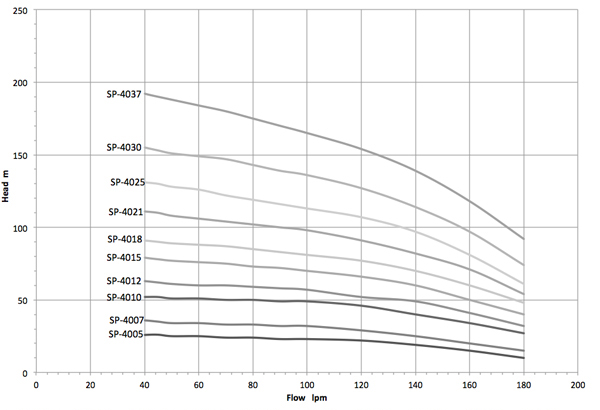

Performance Curves

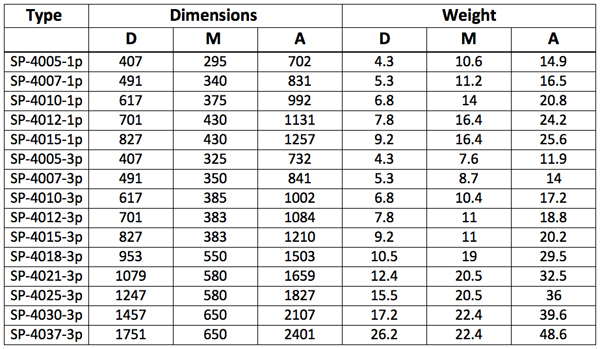

Dimensions and Weights

Ø = 2"
