Max Flow 4.2m3/hr Type SE

CALL US: +44(0)1473 462046
Part Number
SP-1806-1p
Brand
Subline
Pump Size
3" Pump
Series Max Flow
4.2m3/hr
Series Max Head
285m
+

Subline Submersible Pumps



4" Stainless Steel Submersible Pumps
Standard supply Sumoto Motor  - Franklin Motor Optional
Max flow 4.2m3/hr    Max head
285 m

Information

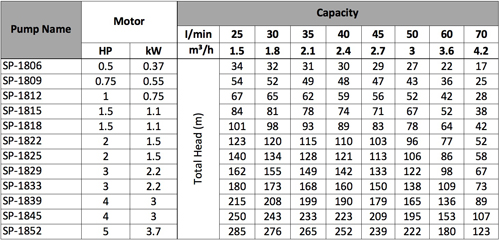

Performance Tables

Performance Tables

Applications

  • Water distribution / pressure boosting
  • Rainwater collection
  • Irrigation / Gardening / Sprinklers
  • Dewatering
  • Wash down unit
  • Fountains
  • Landfill leachate and condensate knock out pots
  • Other various installations

FEATURES

  • Compact close-coupled design, robust and rust resistant
  • Impellers and diffusers are made of stainless steel in order to achieve durability, superior efficiency and the highest performances
  • Plug-in type power cable for easy replacement
  • Field servicable

SPECIFICATIONS

  • Capacities up to 18 m3/h at 50Hz
  • Heads up to 33 Bar at 50Hz
  • Discharge outlet 11/4" BSP & 2" BSP dependent on model
  • Maximum working pressure 35 Bar
  • Maximum allowable amount of sand 50 gr/m3
  • Maximum solids size up to 2 mm
  • Liquid temperature range -5° C to 40° C
  • Continuous operation either in vertical or horizontal position
  • Motor range: 0,37kW to 7.5kW
  • Maximum number of starts per hour: 20

AVAILABLE OPTIONS

  • Single-phase up to 2.2kW or three phase motors for all models
  • Various voltages and frequencies
  • Three phase 220-230V
  • Various power cable lengths
  • Sumoto (as standard) or Franklin Motors
Technical

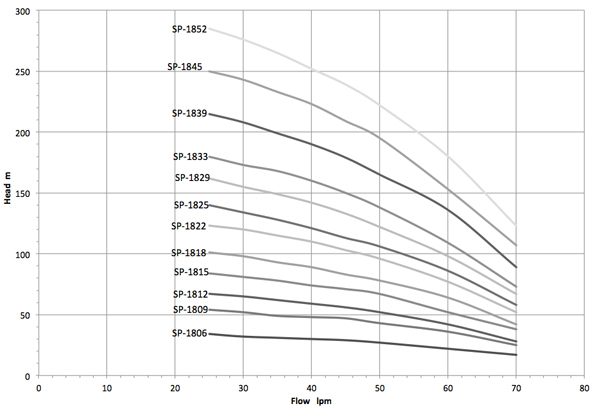

Performance Curves

Performance Curves

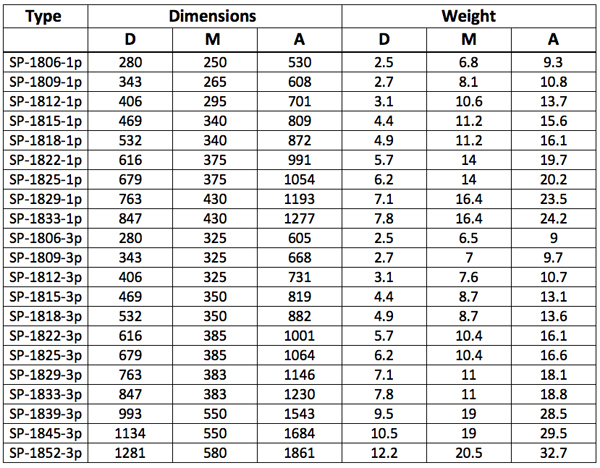

Dimensions and Weights

Dimensions and Weights

Dimensions and Weights

Ø = 1" 1/4
