QMD20-SI2Control Panel

CALL US: +44(0)1473 462046
Part Number
QMD20/0.3kW-4T-SI-2
Brand
Maniero
+


Legacy product

Alternative panels;

Smart EVO 2

Please contact us if you would like to discuss our alternative products.

Information

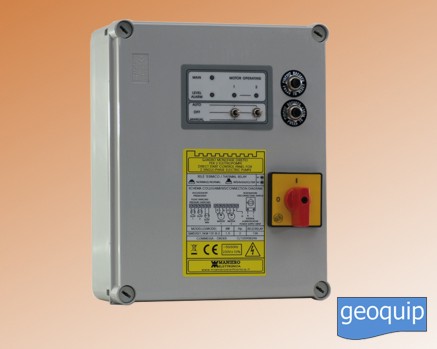

QMD20-SI2 Electronic single phase direct start control panel for 2 electric pumps.

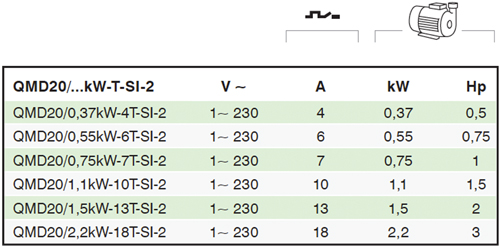

S12 CONTORL PANEL Table 1



Electronic control panel with thermal protection against motor overload  and equipped with integrated motor exchanger.

It is suitable for surface pumps, submerged pumps (without probes) and motors in general, with power range between 0,37 kW and 2,2 kW (please download the data sheet to learn more about all the available sizes and features). It can be used for emptying (drainage), filling or pressurization.

Electric control panel with thermoplastic case and IP50 protection degree, extendable to IP55.

Inputs and outputs

  • N. 3 inputs for floats or pressure switches;

Functions

  • Command with selector and LEDs;
  • Emptying or filling mode switch;
  • Second pump delayed start 0s/4s (selectable);
  • Alternated start of pumps (excludable);
  • Non contemporary start of pumps;
  • Main disconnecting switch with door lock;

Protections

  • Thermal relay protection against motor overload;
  • Motor protection fuses;
  • Very low voltage inputs;

Optional features

IP55 – IP55 protection degree;.

Technical

Dimensions & Weights

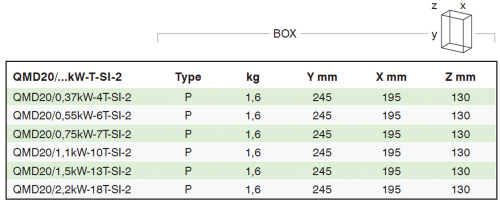

Dimensions & Weights

Circuit Diagrams

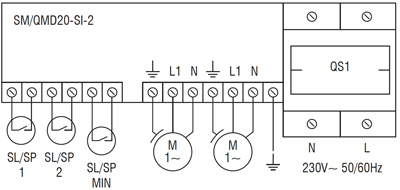

QMD20-S12

Circuit Diagrams

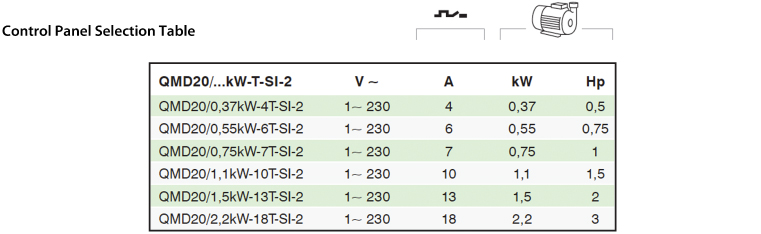

Electrical Data

Electrical Data
