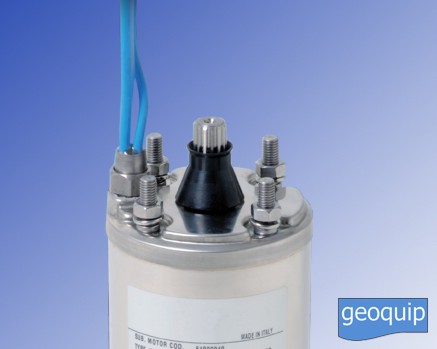

WP4 inch Pump Motor

WP4 inch Pump Motor
  Zoom
Our Price:  CALL US: +44(0)1473 462046(Exc. 20% VAT)

Brand:  Sumoto


Power range:
Single phase: from 0.37kW to 3.7kW
Three phase: from 0.37kW to 7.5kW
50Hz / 60Hz

Axial Thrust:
1500N: from  0.37kW to 0.75 kW
3000N: from 1.1kW to 2.2kW
6500N: from 3kW to 7.5kW



Features:

  • Stator filled with special epoxy resin and hermetically sealed for a better insulation on the winding and greater heat exchange.
  • Rotor and thrust bearings lubricated by Water mixed with Propylene Glycol.
  • Removable plug-in lead cable.
  • Motor frame made out of AISI 304
  • Shaft end made out of AISI 303
  • Motor bracket made out of Cast Iron G20
  • Bracket's cover made out of AISI 304
  • Shaft sealing system granted by labyrinth seal, sand slinger and lip seal
  • Pressure equalising diaphragm
  • 4" NEMA flange
  • Degree of protection: IP68
  • Insulation: Class F
  • Valve for restoring of cooling liquid.

Operating Limits:

  • Water well temperature: max. 35oC
  • Maximum starts per hour: 30
  • Minimum flow rate speed: 0.08 m/s
  • Voltage tolerance: + 6% / - 10%
  • Maximum deep head: 150m
  • Mounting position: vertical/horizontal
  • Liquid characteristics: Ph from 5.8 to 8.6
  • Service factor higher than 1 for 60 Hz motors
  • Axial Thrust:
1500 Newton up to 0.75 kW
3000 Newton up to 2.20 kW
6500 Newton up to 5.50 kW
4000 Newton optional

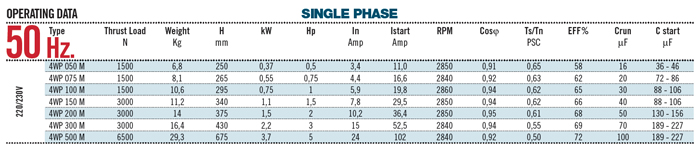

50 Hz

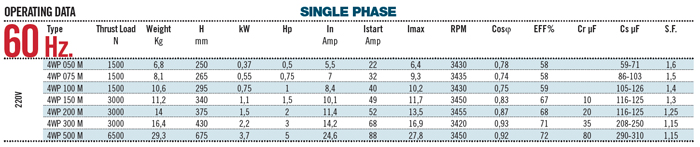

60 Hz

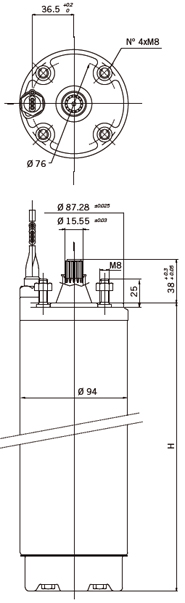

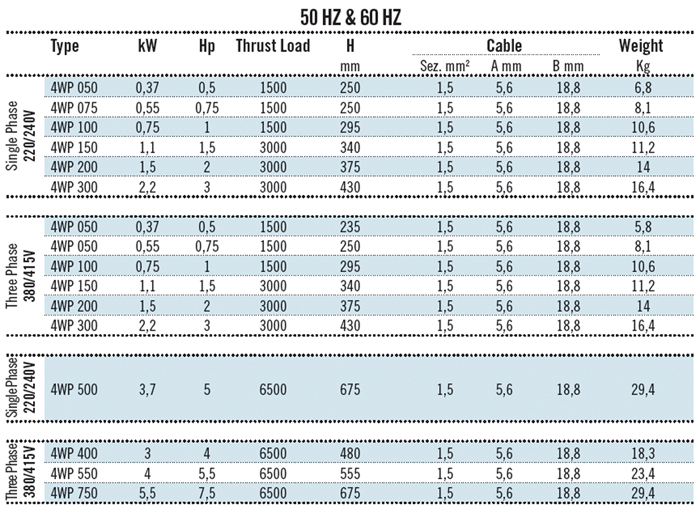

Dimensions and Weights





Quote Required?
Please state part number and specifications where applicable.
 *
 *
 *
 *
 *
 *
