Directo 1 Electromechanical Control Panel

Directo 1 Electromechanical Control Panel
Our Price:  CALL US: +44(0)1473 462046(Exc. 20% VAT)

Part Number:  01020
Brand:  Elentek


  • Control Panel for 1 motor
  • Thermal protection

Please contact us if you would like any technical advice or price and availability information.

Switchboards suitable start small submersible pumps or pressure boosting systems with surface pumps.

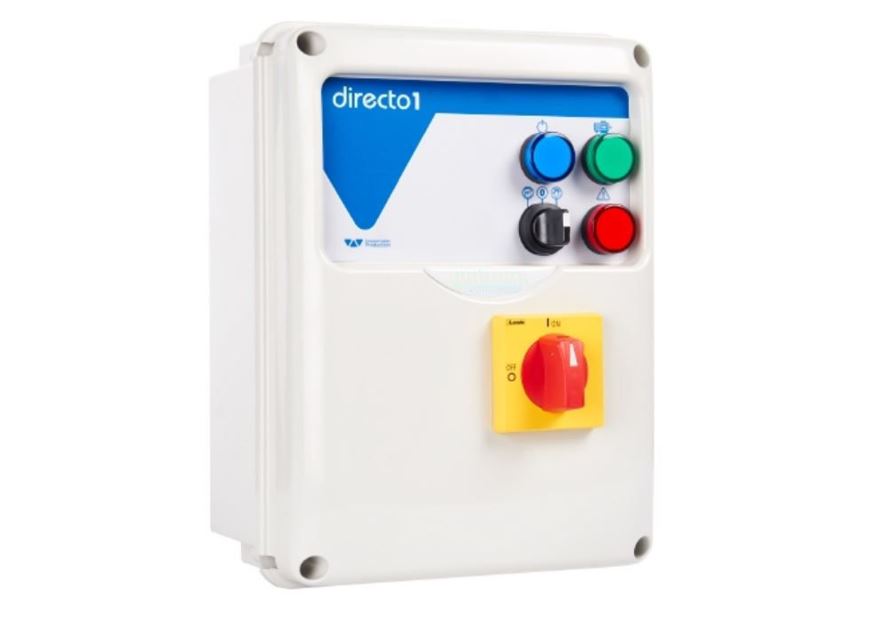

DIRECTO control panels are made of plastic or metal boxes with minimum IP55 protection.

Each panel has indicator lights for power on, thermal trip and engine running, a manual or automatic switch, a disconnecting switch with door lock system.

A terminal block allows the connection to the users and to external commands such as pressure switches, floats etc.

The DIRECTO electromechanical electrical panel provides direct connection to the power supply which involves:

  • Starting at full voltage and constant frequency
  • High starting torque
  • Times on average very low acceleration.

General features

  • Power supply 1 ~ 50 / 60Hz 230V ± 10% (DIRECTO-Mono);
  • Power supply 3 ~ 50 / 60Hz 400V ± 10% (DIRECTO-Tri);
  • Transformer 24 Vac for auxiliary circuit;
  • Inputs and control circuits at low voltage;
  • Auxiliary and motor protection with fuses;
  • Main switch with door lock;
  • Ambient temperature: -5 / + 40 ° C;
  • Relative humidity 50% at 40 ° C (non-condensing).
  • Normally open input for start command;
  • Normally open input for minimum level / pressure control;
  • Auto-0-Manual Selector (stable):
    - Manual: direct operation without controls;
    - Automatic: operation controlled by min input and start input;
  • Blue LED for power on;
  • Green LED for motor running;
  • Red led for motor overload alarm;
  • Line contactor in AC3;
  • Thermal relay internally resettable overload;
  • Box in ABS up to 11 kW, metal from 15 kW, IP55.

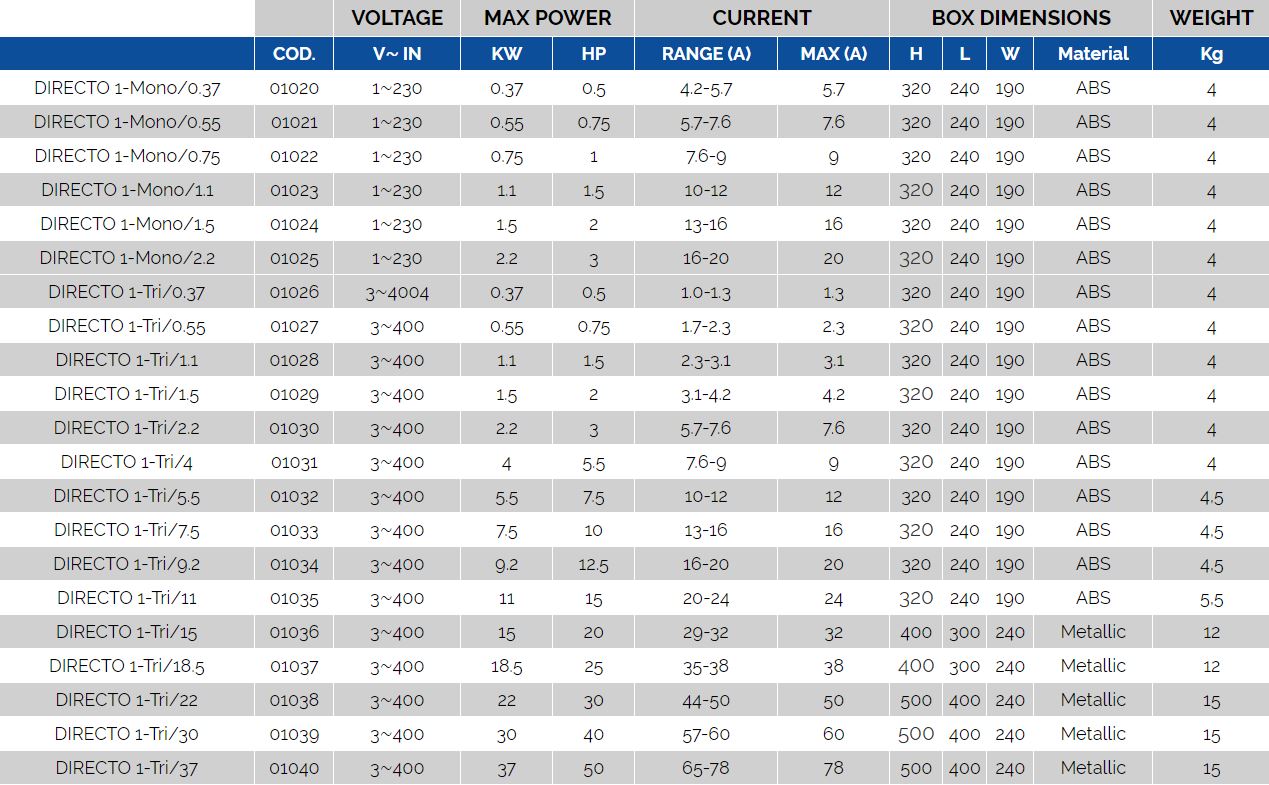

Please state part number and specifications where applicable.
