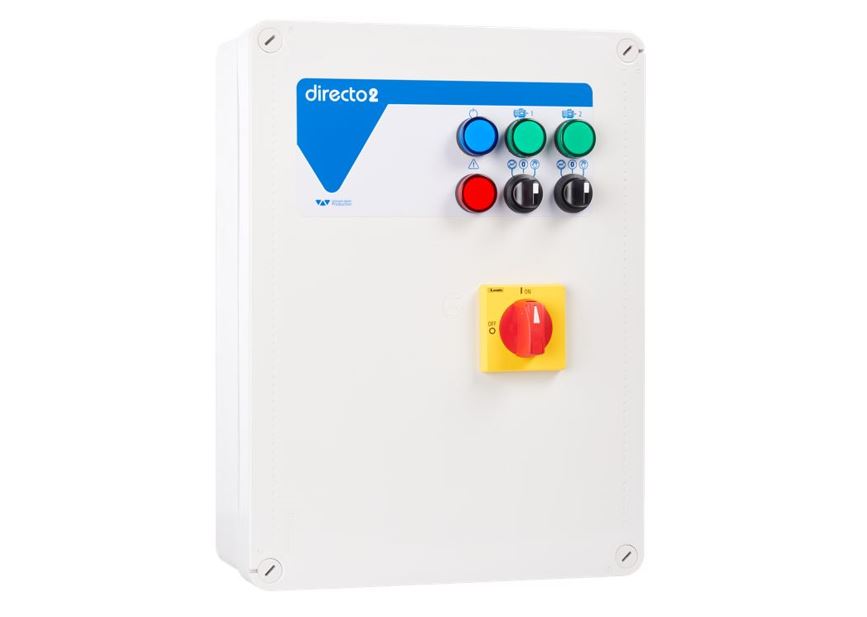

Directo 2 Electromechanical Control Panel

CALL US: +44(0)1473 462046
Part Number
  • Control Panel for 2 motors
  • D.O.L. start
  • Thermal protection

Please contact us if you would like any technical advice or price and availability information.


Switchboards suitable for starting small submerged pumps or submersible pumps, or for pressure boosting systems with surface pumps.

Each switchboard has power on, thermal relay tripped and motor running indicator lights, a manual or automatic circuit-breaker, and a master switch with door interlock system.

A terminal board allows connection to the users and to external control devices such as pressure switches, float switches, etc.

They can be completed with various options such as:

  • Level relays for unipolar probes
  • Alarm output relays
  • Pump alternating relays
  • Analogue voltmeters of suitable scale
  • Voltmeter switch on 3 phases
  • Ammeter
  • Phase sequence and missing phase control
  • Min and max voltage control
  • Start/stop button
  • Mushroom emergency button
  • Operating hour counter

Direct on line starting

Direct on line starting is perhaps the most simple, traditional method: the motor is connected directly to the mains power supply and is thus started at full voltage.

It is often abbreviated to DOL starting.

DOL starting is the simplest, most economical way of starting electric pumps or motors and is traditionally the most widely used method. The current induced in the rotor is high. This causes a current surge in the system which may be from 5 to 8 times the rated current.

They are suitable for starting small submerged pumps or submersible pumps, or for pressure boosting systems with surface pumps.

With the DIRECTO switchboard, units are connected directly to the mains power supply, which implies:

  • Start-up at full voltage and constant frequency
  • High starting torque
  • On average, very short acceleration times

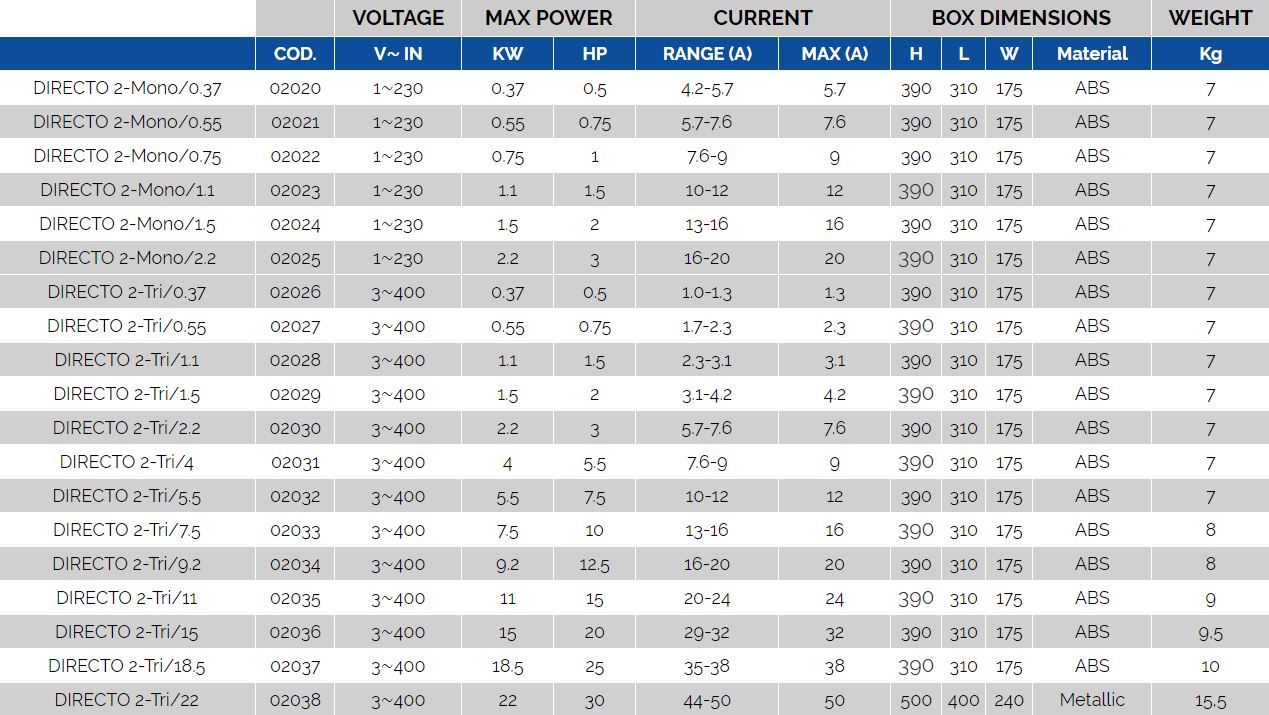

Directo 2 Electronic Control Panel Table


General Features

  • Power supply 1 ~ 50 / 60Hz 230V ± 10% (DIRECTO-Mono);
  • Power supply 3 ~ 50 / 60Hz 400V ± 10% (DIRECTO-Tri);
  • Transformer 24 Vac for auxiliary circuit;
  • Inputs and control circuits at low voltage;
  • Auxiliary and motor protection with fuses;
  • Main switch with door lock;
  • Ambient temperature: -5 / + 40 ° C;
  • Relative humidity 50% at 40 ° C (non-condensing).
  • 2 normally open inputs for start command;
  • 2 normally open inputs for minimum level / pressure control;
  • 2 Selectors Auto-0-Manual (stable):
    - Manual: direct operation without controls
    - Automatic: operation controlled by min input and start input;
  • Blue LED for power on;
  • 2 green LEDs for motors running;
  • Red led for motor overload alarm;
  • 2 line contactors in AC3;
  • 2 thermal overload relay internally restorable;
  • Box in ABS up to 11 kW, metal from 15 kW, IP55.
