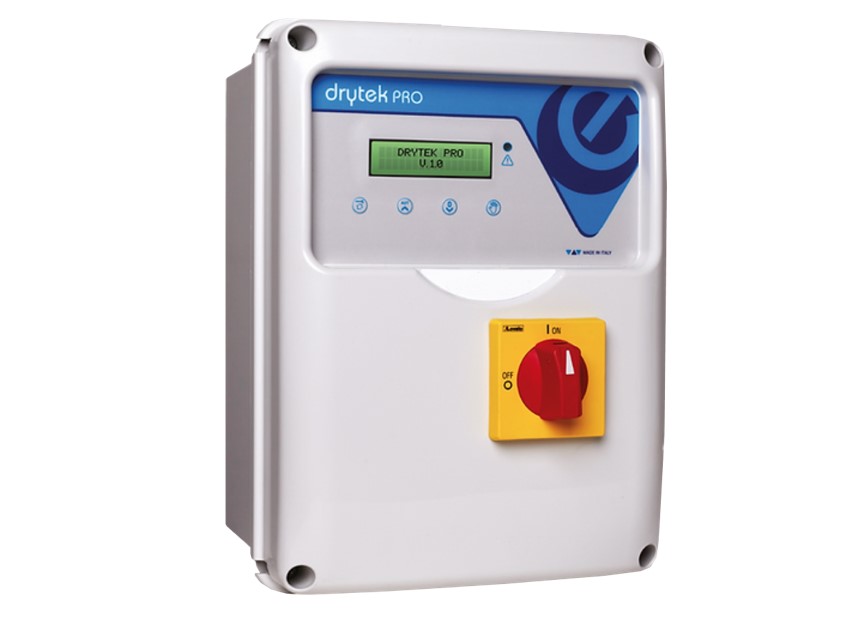

Drytek PRO Electronic Control Panel
  Zoom
Our Price:  CALL US: +44(0)1473 462046(Exc. 20% VAT)
+


Part Number:  11001NB
Brand:  Elentek

Elentek

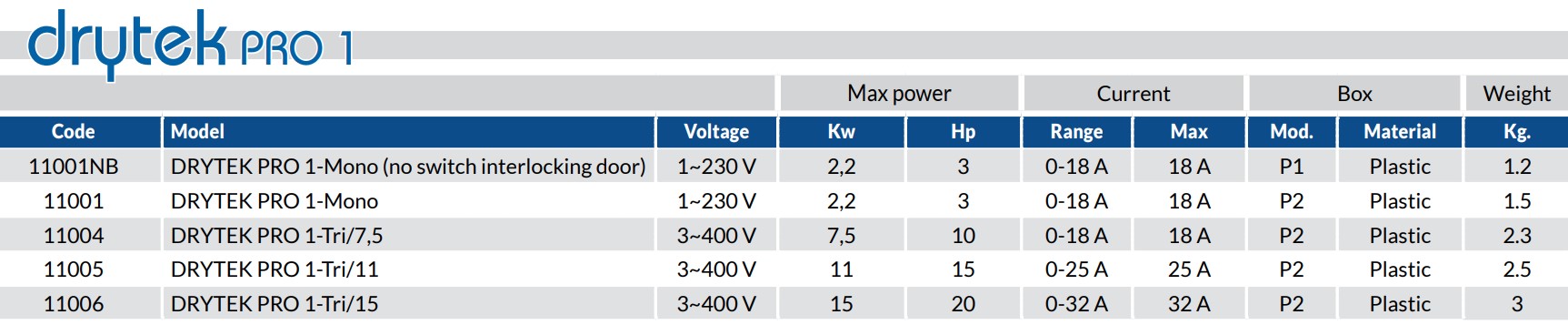

Dryrek PRO 1 Electronic Control Panel
Drytek PRO 2 Electronic Control Panel

Legacy product

Please contact us if you would like to discuss our alternative products.

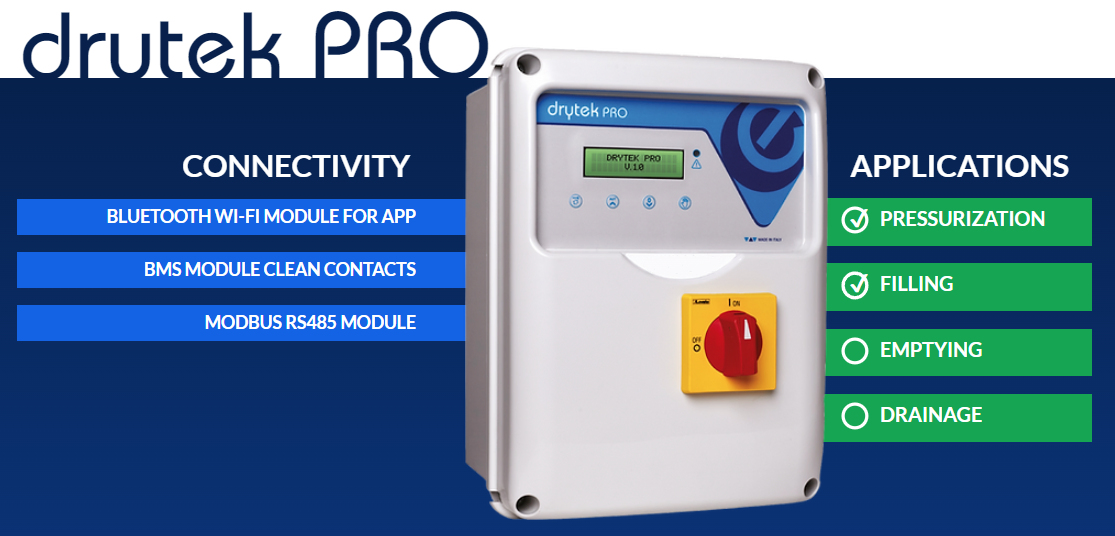

DRYTEK PRO protects the electric pump against dry running by the power factor control integrated in the microprocessor. Thanks to the display and the available expansions it helps saving installation time and reducing service costs.
  • Power Factor Control - Dry running protection without the use of level probes
  • Display programming of parameters from LCD display
  • Reliable - Integrates accurate protection systems
Applications
  • Pressurisation
  • Filling

Connectivity

  • BMS Free voltage contacts module
  • Bluetooth WI-FI module for App
  • RS485 modbus module

Technical

Functions

  • LCD display showing: voltage, current, power factor, hours of operation, number of starts, motor status and alarms
  • AUTOMATIC - 0 (standby) – MANUAL selector (fixed or pulse)
  • Language settings (Italian, English, French, Spanish, German)
  • Anti-seize autotest (programmable)
  • Dry running protection by power factor control
  • Up to 4 control inputs: level probes/floats/pressure switches
  • Clicson inputs with automatic reset (can be disabled)
  • Inputs inversion (from normally open to normally closed)
  • Automatic reset for minimum power factor alarm settable with 4 times
  • Manual button operation (fixed or pulse)
  • Provision for run capacitors on single-phase model (not included)

Versions

  • Power supply 1phase 100-240Vac 50/60Hz
  • Power supply 3phase 310-450Vac 50/60Hz

Controls

  • Electronic control of minimum and maximum voltage
  • Electronic control of maximum motor current
  • Dry running control by power factor
  • Failure or incorrect phase sequence control on power supply input (can be disabled)

Alarms

  • Alarms reported: voltage status, levels, motor overload, minimum motor current, clicson motor
  • General alarm output contacts

Protections

  • Auxiliary and motor protection fuses
  • Isolator (except for NB code)
  • Box in ABS, IP55

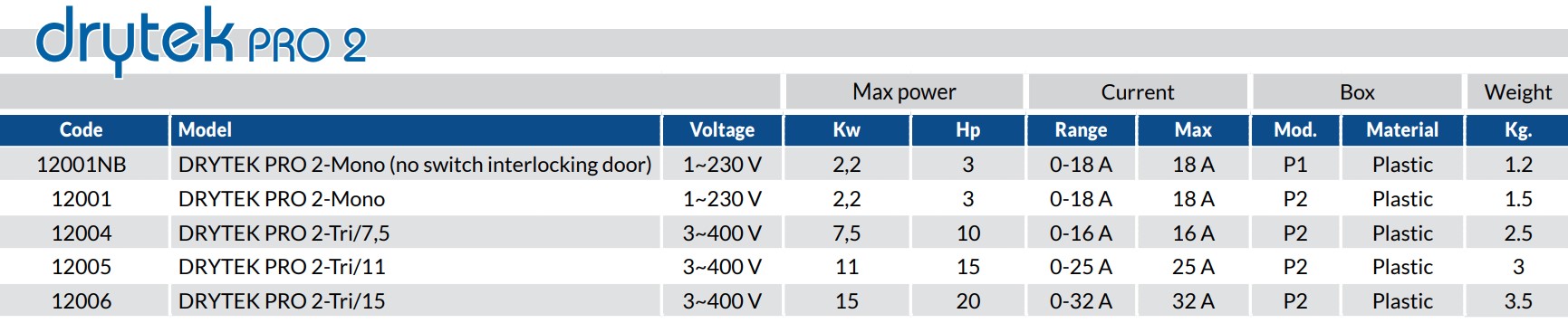

Drytek PRO 2 Additional Functions

  • Duty/standby (can be disabled)
  • Immediate motor changeover in case of a fault
