EM 9 Vertical Close Coupled Multistage Pump E-tech Franklin Electric

The EM 9 vertical close-coupled multi-stage pump is designed to meet your pressure boosting needs. The compact, robust design ensures high performance in a wide variety of applications such as domestic fire sprinklers. The EM Series is offered in three flow rates and different power sizes in 1-phase or 3-phase to make sure you have the right pump to fit your application.

Features

• Compact close-coupled design, robust and rust resistant / Superior efficiency and performances
• Floating neck ring in PPS
• Heavy duty oversize motor shaft
• Impellers and diffusers are made of stainless steel in order to achieve durability
• Easy maintenance
• Strong and leak-proof motor rolling bearing fitted in the motor braket
• Pumping of clear non-loaded fluids
• Mechanical seal: Carbon/ceramic/EPDM

Pump Specifications

• Capacities up to 14m³/h
• Heads up to 104m
• Discharge and Suction port: Threaded or Oval connections
• Maximum working pressure 12 Bar
• Direction of rotation: clockwise looking at the pump from the top down
• Maximum ambient temperature 40°C
• Liquid temperature range
• Minimum: -15°C
• Maximum: +90°C for domestic use (uses covered by CEI EN standard 60335-2-41); +110°C only for industrial use (uses other than those covered by CEI EN standard 60335-2-41)
• The hydraulic characteristics are guaranteed, according to ISO standard 9906:2012, grade 3B

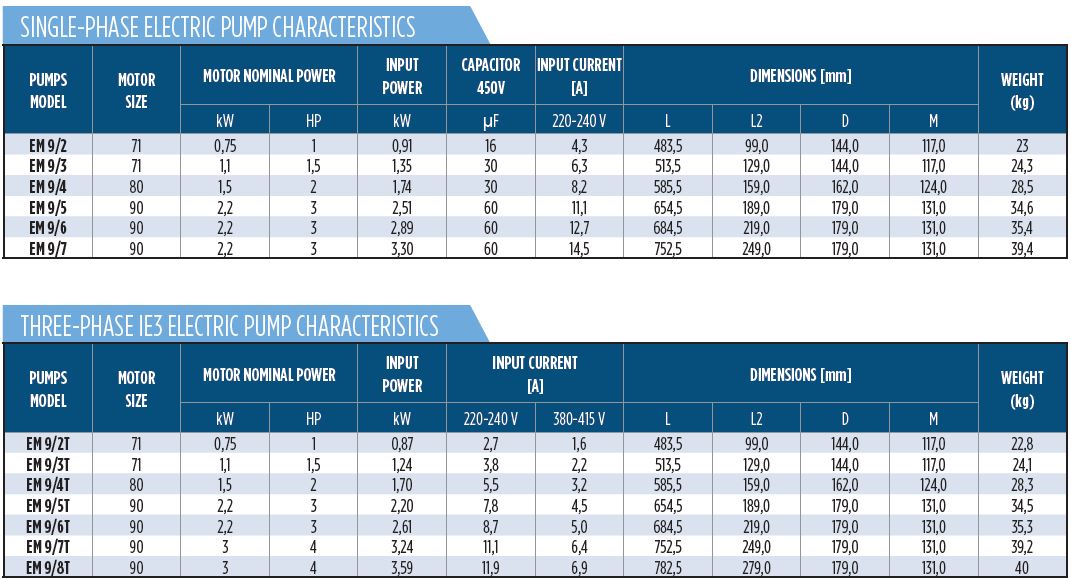

Motor Specifications

• Single-phase or Three-phase IE3 motors
• Asynchronous, TEFC (Totally Enclosed, Fan-Cooled)
• 2 pole
• IP55 protection motor
• Insulation class F

Applications

• Small domestic / industrial systems
• Domestic water supply
• Water distribution / pressure boosting
• Irrigation / gardening
• Sprinklers / Fire sprinklers/ Domestic fire sprinklers
• Rainwater recovery
• wash down unit
• Cooling and chilling / heating and conditioning systems

Version

D = In-line threaded
