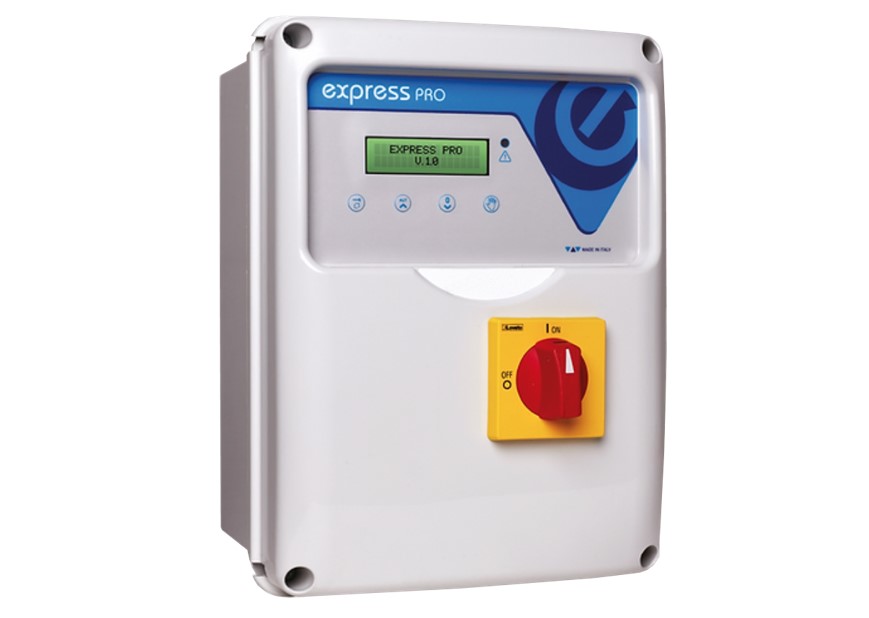

Express PRO Electronic Control Panel

CALL US: +44(0)1473 462046
Part Number

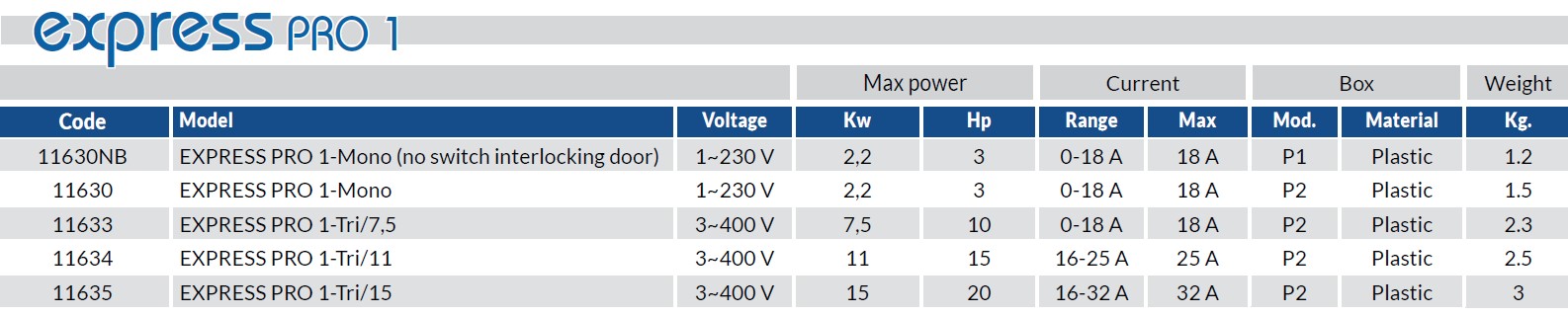

EXPRESS PRO 1 Electronic Control Panel

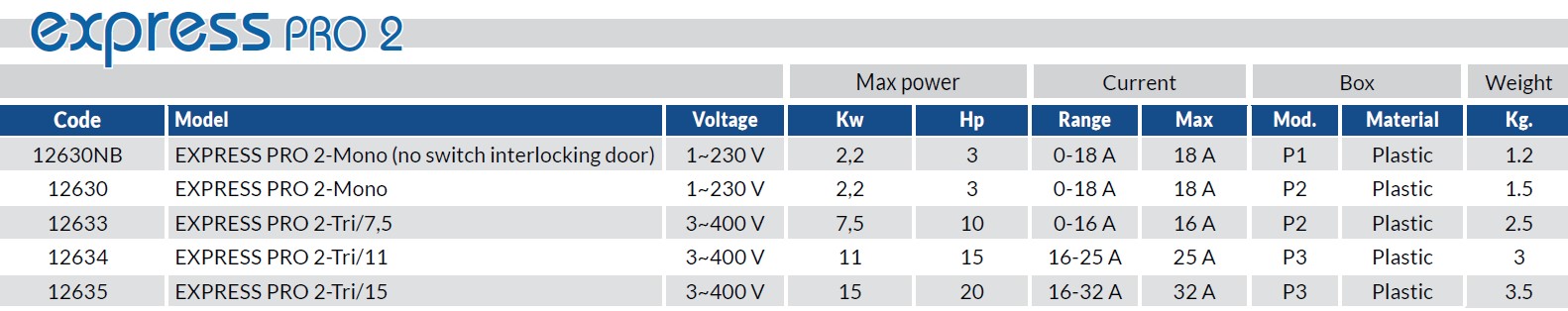

EXPRESS PRO 2 Electronic Control Panel

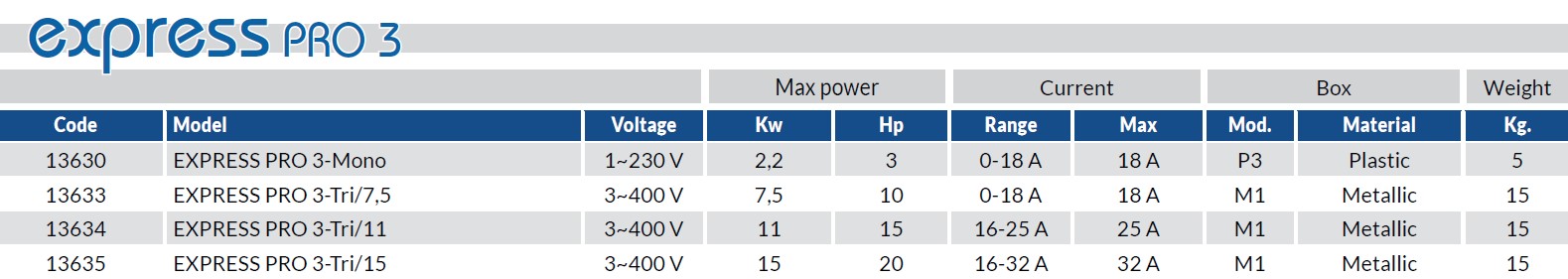

EXPRESS PRO 3 Electronic Control Panel

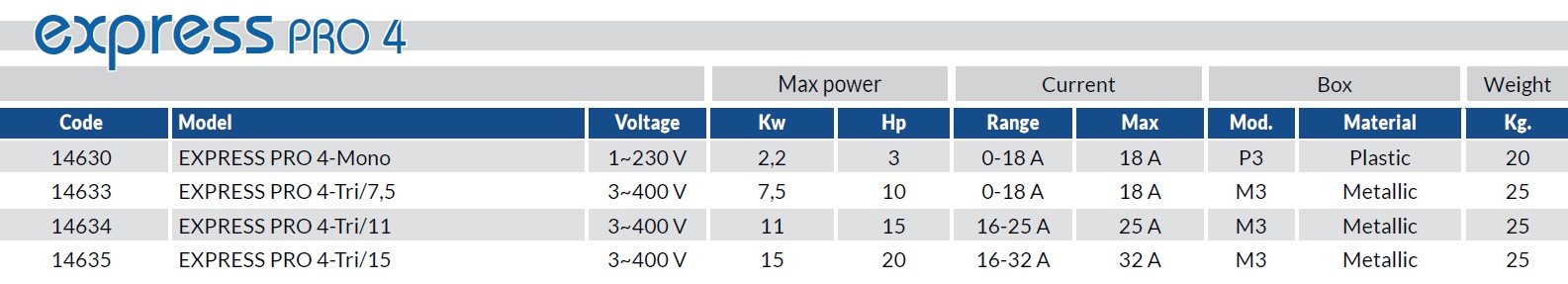

EXPRESS PRO 4 Electronic Control Panel

Please contact us if you would like any technical advice or price and availability information.

In this new version, EXPRESS PRO is once again the most complete, versatile and practical panel in the Elentek range. With its simple and immediate user interface, 6 preset modes of use and multiple applications, Express Pro has evolved even further with additional connectivity, control and expandability options.
  • Additional application options thanks to analogue inp
  • Programable Anti-Seize - Customisable programming to avoid undesired blockages
  • Maximum Modularity - System can implement up to 4 pumps

Suitable with Franklin Electric E-tech pumps and motors

  • Pressurisation
  • Filling
  • Emptying
  • Drainage


  • BMS Free voltage contacts module
  • Bluetooth WI-FI module for App
  • Water in oil chamber module
  • Buffer battery module
  • RS485 modbus module (optional)
  • Level probes module
  • Removable terminals
  • Modular Expandability



  • LCD display for displaying and programming: voltage, current, power factor, hours of operation, number of starts, motor status, alarms, analogue signal and thresholds
  • AUTOMATIC - 0 (standby) - MANUAL (fixed or pulse) operation buttons
  • Language settings (Italian, English, French, Spanish, German)
  • Anti-seize autotest (programmable)
  • Dry running protection with: level probes/ floats/ pressure switches and minimum current
  • Up to 6 control inputs: floats/pressure switches
  • Input for 4-20 mA or 0-10V analogue signal
  • Unit of measurement analogue signal cm - m - bar
  • Emergency start and stop inputs with analogue signal operation mode (can be disabled)
  • Clickson thermal pad inputs with automatic reset (can be disabled)
  • Inversion of inputs (from normally open to normally closed)
  • Automatic reset for minimum current alarm with 4 programmable times
  • Activation delay from mains return (can be disabled)
  • Manual button operation (fixed or pulse)
  • Predisposition for run capacitors for single-phase version (not included)


  • Single-phase version 100-240Vac 50/60Hz
  • Three-phase version 310-450Vac 50/60Hz


  • Electronic control of minimum and maximum voltage
  • Electronic control of maximum current
  • Electronic control of minimum motor current
  • Failure or incorrect phase sequence control on power supply input (can be disabled)


  • Alarms reported: voltage status, levels, motor overload, minimum motor current, clicson motor
  • Alarms history
  • Alarms for too many starts/hour (programmable)
  • General alarm output contacts


  • Auxiliary and motor protection fuses
  • Isolator (except for NB code)
  • Box in ABS, IP55

EXPRESS PRO 2-3-4 Additional Functions

  • Duty/standby (can be disabled)
  • Immediate motor changeover in case of a fault
