Low Level Probe Pump Control

£51.90
Part Number
ES4D-10116P10-N
+

Low level probe pump control is designed to monitor the slow ingress of water into a sump and automatically start and stop a sump or mop pump.

Standard probe length 50mm, longer probe lengths are available on request.

Information

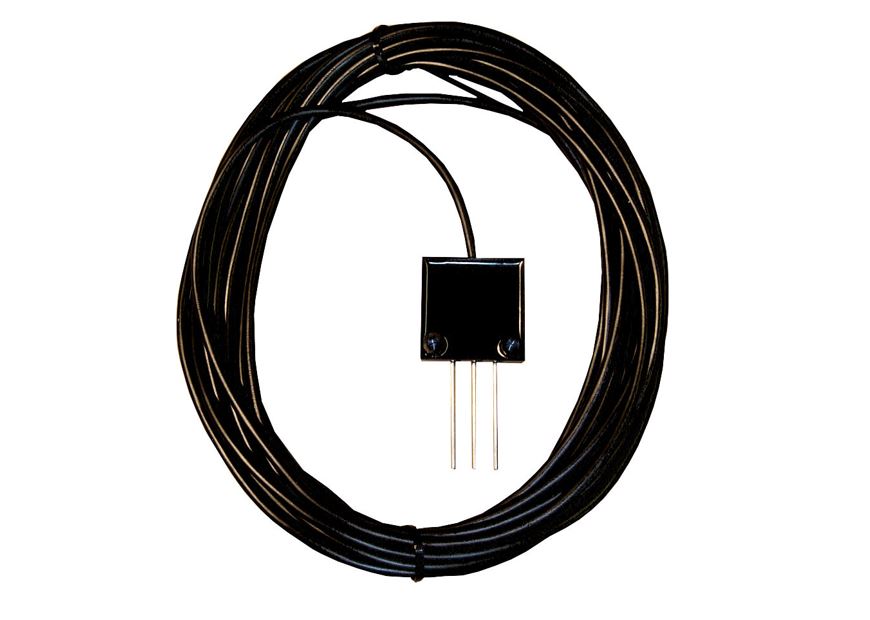

Low level probe for pump control - can be fixed directly to a pump body (subject to the pump construction), strapped around the body of the pump or attached to a wall or fixture within the sump.  It is designed to monitor the slow ingress of water into a sump and automatically start and stop a sump or mop pump.  The probes are cut to length to allow individual users requirements.

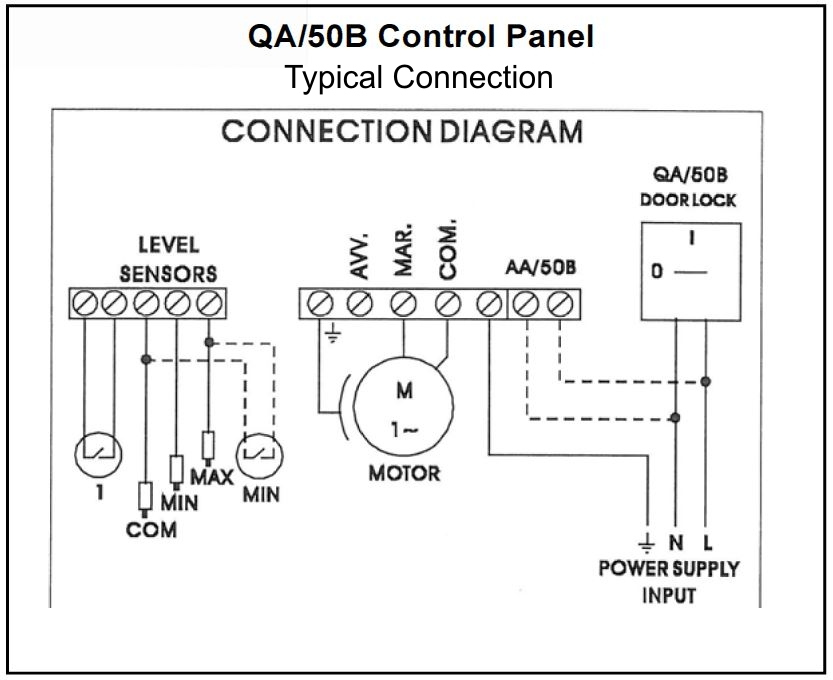

These can be used with any of our range of panels which incorporate a level control probe features such as the QA/50C, QA60 series or with a panel that will accept a level control conductive probe module.

Longer probe lengths are available on request.

  • Standard Cable Length 10m
  • Type YY PVC
  • Low voltage use only
  • For use with level control modules / relays
  • Stainless Steel probes
  • Standard probe length 50mm

NB: To ensure a fully reliable low-level operation it is important to keep the probe rods free of debris.  Anything that will prevent the passes between the conductive probes in the liquid could prevent the pump from starting or stopping at the desired water levels.  Always check these periodically.

For further technical information, please contact us.
