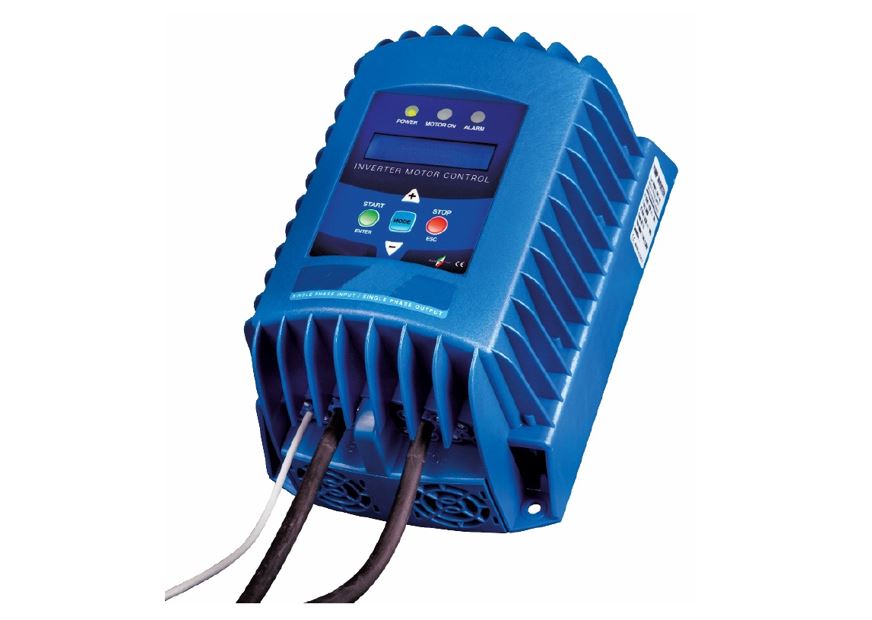

Professional Range Constant Pressure Inverter 1.1kw Single Phase

Professional Range Constant Pressure Inverter 1.1kw Single Phase
Our Price:  £515.00(Exc. 20% VAT)

Part Number:  CI1C-BJFCP109L-2C
Brand:  Geoquip Water Solutions

Key specifications;

One phase input 1x(100-244)V Single phase output 1x(100-244)V

  • Maximum motor-pump power 1.1kW
  • Maximum output current 9.0A
  • Nominal motor frequency 55-60 Hz
  • Pressure measure range from 0 to 30 bar
  • Can work in group with a Blueconnect communication.

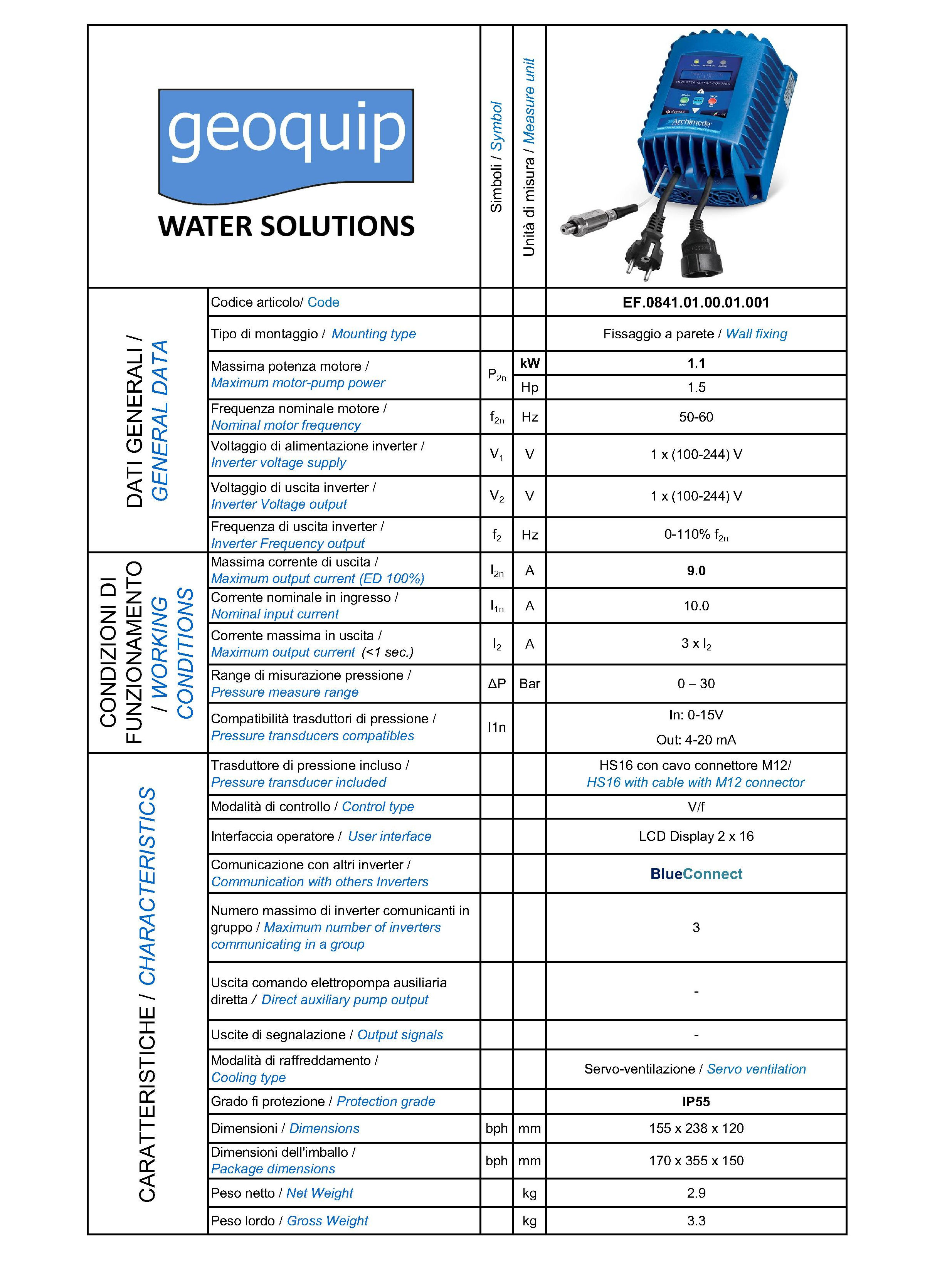

See technical tab for more details

These inverters are used with a centrifugal pump driven by a single phase induction motor and a pressure transducer, which is provided & already connected to the inverter, that detects the pressure of the pumped system. These replace all traditional systems such as pressure switch or flow switch and large pressure vessels which are no longer necessary.

Soft starts and stops guarantee a low current absorption which extends the motor life, provides quieter working and reduces water hammer. The logic control unit protects the system from the no flow and dry-running conditions or other dangerous electrical or mechanical conditions.

Please state part number and specifications where applicable.
