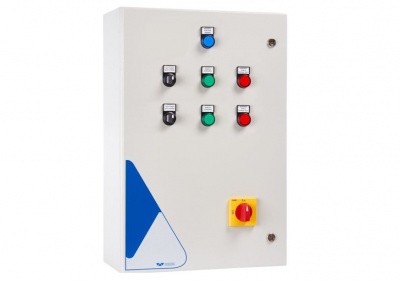

Stardelta 2 Electronic Control Panel

CALL US: +44(0)1473 462046
Part Number
02052
Brand
Elentek
+
  • Control Panel for 2 motors
  • Star/delta (star delta) start
  • Thermal protection

Please contact us if you would like any technical advice or price and availability information.

Elentek
Information

STARDELTA 2 control panels have metal cases with at least IP 55 protection.

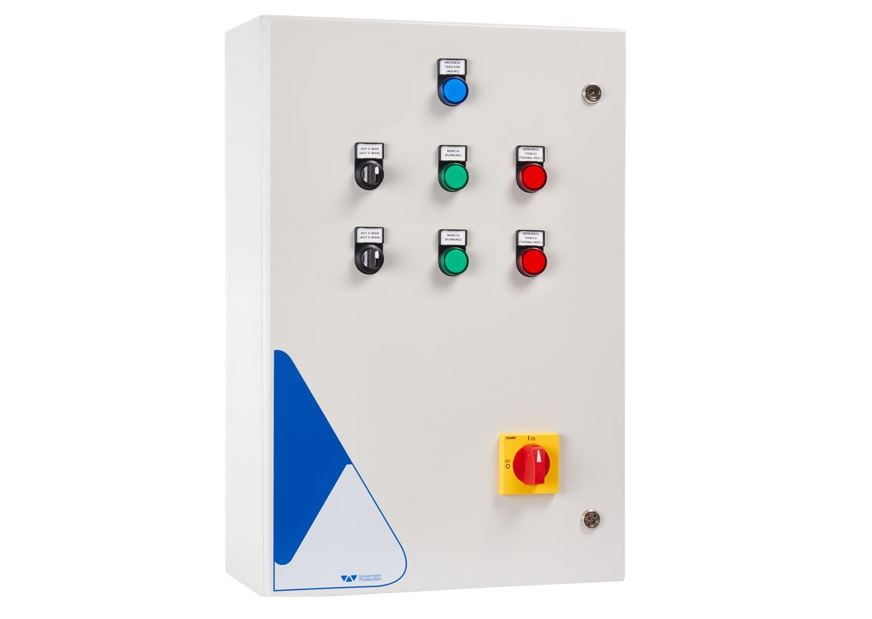

Each star delta control panel has power on, thermal relay tripped and motor running indicator lights, a manual or automatic circuit-breaker, and a master switch with door interlock system. A terminal board allows connection to the users and to external control devices such as pressure switches, float switches, etc.

They can be completed with various optionals such as:

  • Level relays for unipolar probes
  • Alarm output relays
  • Alternating relays
  • Analogue voltmeters of suitable scale
  • Voltmeter switch on 3 phases
  • Ammeter
  • Phase sequence and missing phase control
  • Min and max voltage control
  • Start/stop button
  • Mushroom emergency button
  • Operating hour counter

STARDELTA 2 panels with star-delta starting for two electric pumps: star-delta starting is the best known and perhaps the most widely used low voltage starting method.

It is used to start the pump motor with lower levels of mechanical stress and with current limitation during start-up; it does this with the aid of a timed system which switches the control contactors installed inside the switchboard.

Star-delta starting reduces starting current and torque to values of 33% (1/3) of those measured during direct starting.

During start-up, the currents flowing through components are lower than the motor's rated current.

They are suitable for starting centrifugal pumps or pressure booster systems with surface pumps.

Star phase

During this starting phase, the motor windings are connected by a star connection. This is the acceleration phase, and must last long enough for the operating speed to be almost reached.

Switching phase

This is the phase in which the specific contactors are opened and closed to switch from star to delta connection. The duration and calibration of the switching phase are important. Switching is regulated by timers.

Delta phase

Switching is followed by the final phase in the starting process. The motor operates at normal speed and the stator windings, with delta connection, are subjected to the full mains voltage V; the motor torque rises to the rated value.

Motor thermal protection

The motor protection relay is connected to the section of the winding downstream of the main contactor. The current for regulation therefore corresponds to 1/√ 3=0.58 of the motor's rated current.

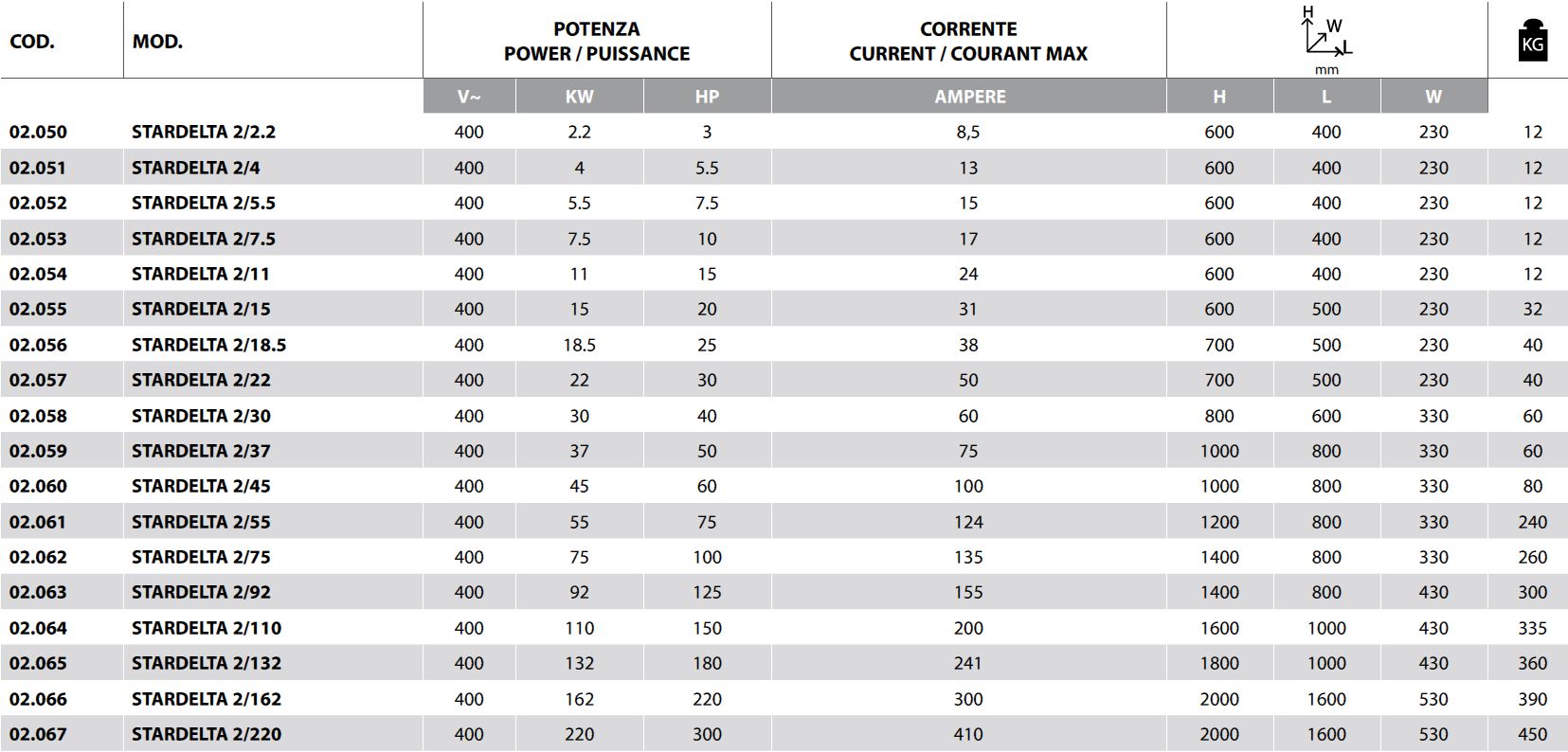

Technical
  • Power supply 3~50/60 Hz 400V ±10%
  • Auxiliaries contacts and circuits in low voltage
  • N.2 Normally open contact for start
  • N.2 Normally open contact for minimum level/pressure  contact;
  • N.2 Selector for Auto-Off-Manual (stable) operation
  • Blue led indicating mains supply
  • N.2 Green led indicating motor running
  • N.2 Red led indicating motor overload
  • N.2 Line-star-delta contactors  in AC3
  • N.2 Overload thermal relays internally restorable
  • N.2 Adjustable star/delta timer;
  • Auxiliaries and motor protection fuses
  • Main switch interlocking door
  • Steel enclosure, IP55
  • Ambient temperature: -5/+40 °C
  • Relative humidity 50% at 40 °C (not condensed)
