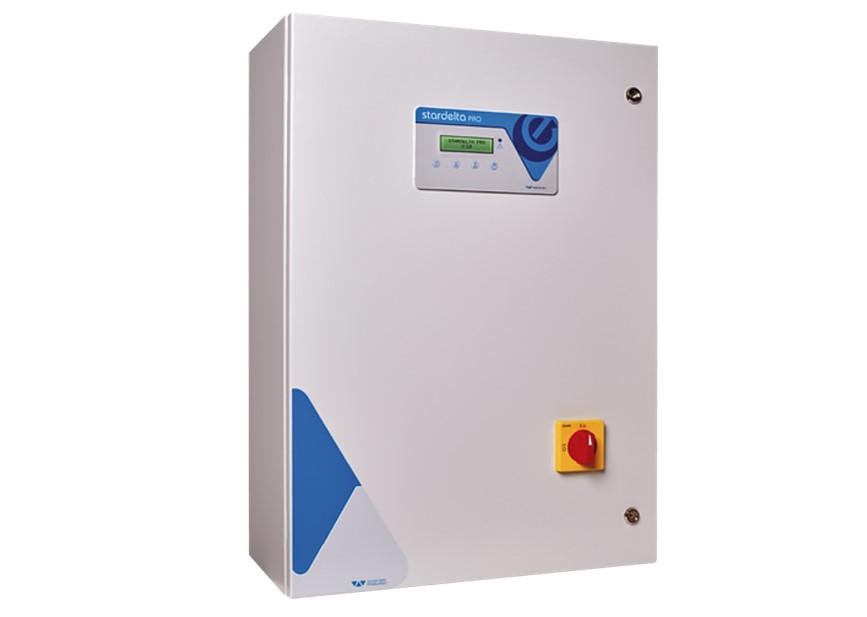

Stardelta PRO Electromechanical Control Panel

CALL US: +44(0)1473 462046
Part Number
11054
Brand
Elentek
+
  • Control Panel for 2 motors
  • Star/delta start
  • Thermal protection


Please contact us if you would like any technical advice or price and availability information.

Elentek
Information
Star-delta start is the main feature distinguishing STARDELTA PRO, our new electromechanical control panel adding the reduction of start currents and mechanical stress to completeness and versatility. With the same simple and immediate user interface distinguishing the entire Elentek range, Stardelta Pro has 6 preset operating modes, additional connectivity options, control and expandability.
  • Maximum control - Integrate the most complete system protections
  • Flexibility - Multiple inputs available for several applications
  • Reliable in any condition - Accurate motor current reading (even in ambient conditions)

Applications

  • Pressurisation
  • Filling
  • Emptying
  • Drainage

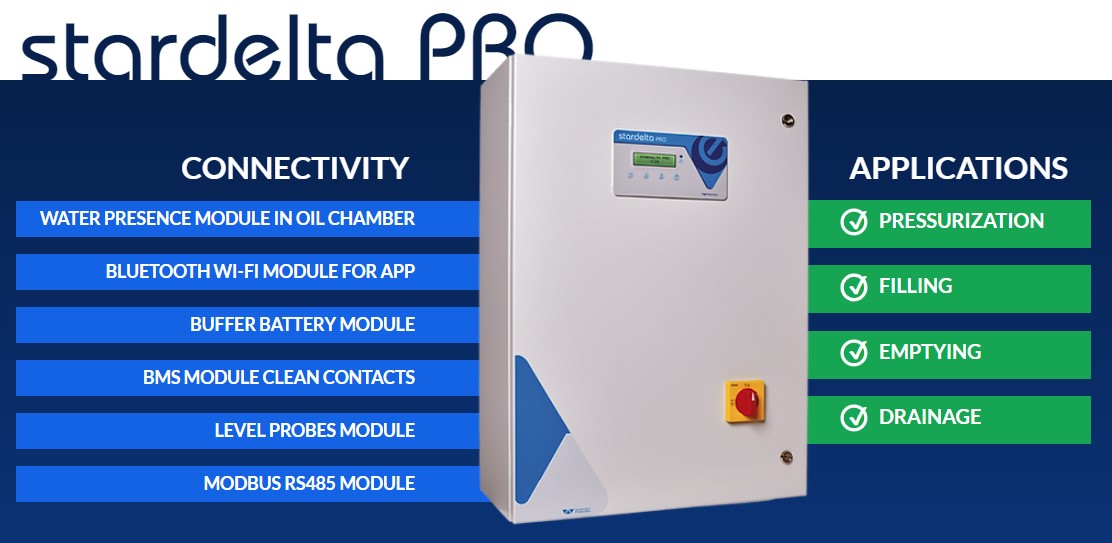

Connectivity

  • BMS Free voltage contacts module
  • Bluetooth WI-FI module for App
  • Water in oil chamber module
  • Buffer battery module

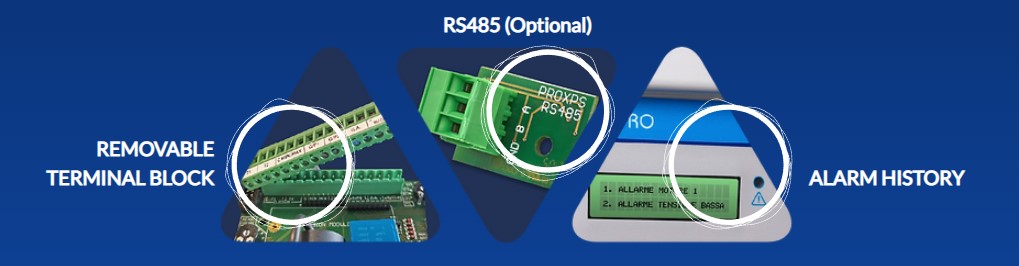

  • RS485 modbus module (optional)
  • Level probes module
  • Removable terminals
  • Modular Expandability
  • Historical alarms

Technical

Functions

  • LCD display for displaying and programming: voltage, current, cos-fi, hours of operation, number of starts, motor status, alarms, analogue signal and thresholds
  • Selector AUTOMATIC - 0 (standby) - MANUAL operation
  • Language settings (Italian, English, French, Spanish, German)
  • Anti-seize autotest (programmable)
  • Dry running protection with: level probes/ floats/ pressure switches and minimum current
  • Up to 2 control inputs: float/pressure switches
  • Input for 4-20 mA or 0-10V analogue signal
  • Unit of measurement analogue signal cm - m - bar
  • Emergency start and stop inputs with analogue signal operation mode (can be disabled)
  • Clicson thermal pad inputs with automatic reset (can be disabled)
  • Inversion of inputs (from normally open to normally closed)
  • Automatic reset due to minimum current alarm with 4 programmable times
  • Activation delay from mains return (can be disabled)
  • Manual button operation (fixed or pulse)
  • Settable star-delta timer

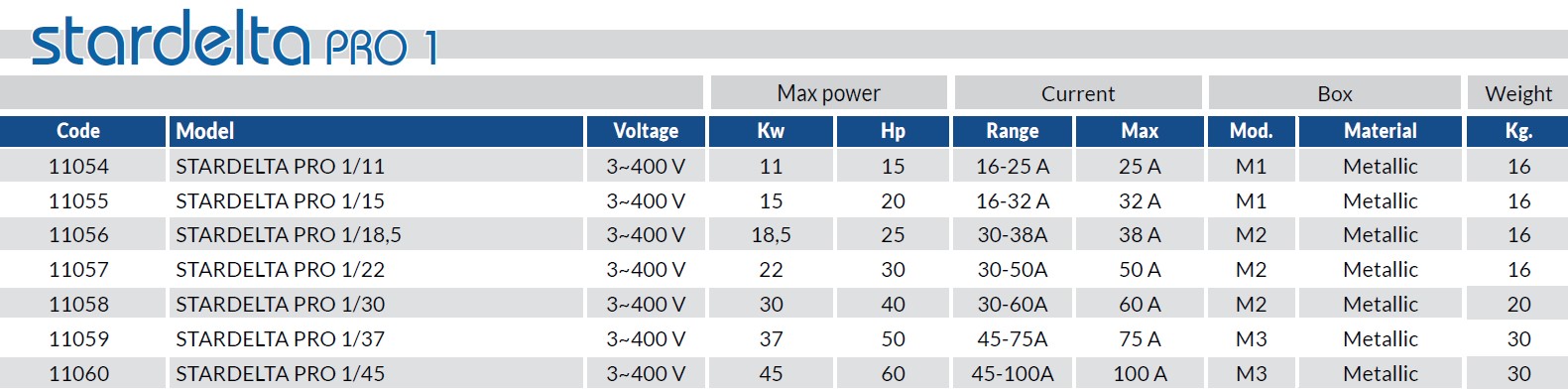

Versions

  • Power supply 3phase 310-450Vac 50/60Hz

Controls

  • Electronic minimum and maximum voltage control
  • Electronic control of maximum motor current
  • Minimum motor current control
  • Failure or incorrect phase sequence control on power supply input (can be disabled)

Alarms

  • Alarms reported: voltage status, levels, motor overload, minimum current, motor clicson
  • Alarm history
  • Starts / hour alarm (settable)
  • Alarm output contacts

Protections

  • Auxiliary and motor protection fuses
  • Isolator (except for NB code)
  • Metallic box, IP55
