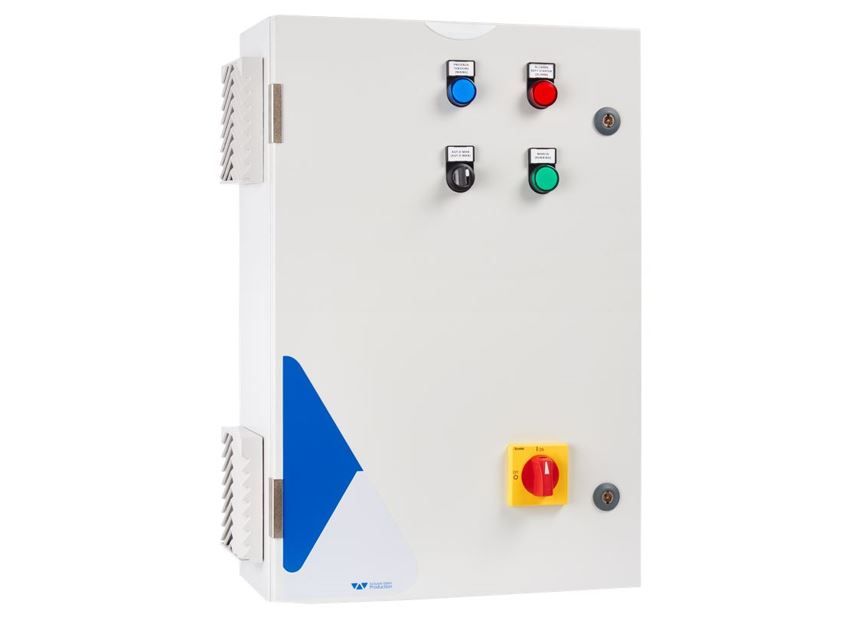

Static Plus 1 Electronic Control Panel

CALL US: +44(0)1473 462046
Part Number
01100
Brand
Elentek
+
  • Control Panel for 1 motor
  • Soft start
  • Ammeter protection


Please contact us if you would like any technical advice or price and availability information.



Elentek
Information

The ideal solution for the pumps performance control. Control panel with soft starter for 1 three-phase pump with thermal protection

A modern method of starting electric pumps is to use electronic static starters, generally known as soft starters.

These devices enable users to reduce the hammering and to set the starting time. This allows power to be supplied to the motor very gradually increasing it throughout the procedure to achieve smooth starting, with none of the electrical and mechanical stresses found with direct and star/delta starting.

The control panels STATIC PLUS are ideal in the following applications:

  • Industrial pumps, booster pumps
  • Pumps for rain water,irrigation pumps (submerged or surface pumps)
  • Submersible pumps, sewage pumps

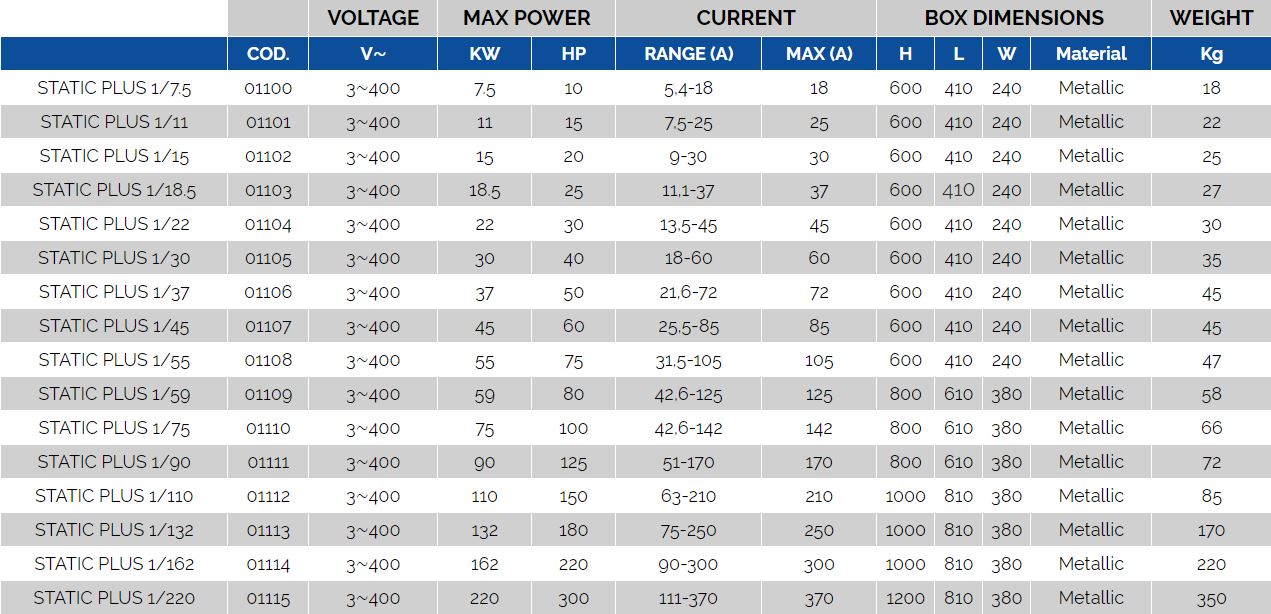

Technical
  • Power supply 3~50/60Hz 400V ±10%;
  • Auxiliaries contacts and circuits in low voltage;
  • Normally open contact for start;
  • Normally open contact for minimum level/pressure contact;
  • Selector for Auto-Off-Manual (stable) operation;
    • Manual: direct operation without controls;
    • Automatic: operation with control by minimum level/pressure and start;
  • Blue led indicating mains supply;
  • Green led indicating motor running;
  • Red led indicating motor overload;
  • Soft starter with the following advanced controls:
    • Backlighted LCD with keyboard;
    • Integrated By-Pass;
    • Phase control (R-S);
    • Nominal current of the motor;
    • Timer for starting ramp (1…30 s);
    • Timer for stopping ramp (Off, 1…30 s);
    • Start/Stop voltage (30…70 %);
    • Limit of the current;
    • Couple control during the starting ramp;
    • Couple control during the stopping ramp;
    • Kick start;
    • Electronic control for motor overload;
    • Protection from low load;
    • Protection from rotor blocked;
    • Fieldbus communication;
  • Overload thermal relay internally restorable.
  • Auxiliaries and motor protection fuses;
  • Main switch interlocking door;
  • Metallic box, IP54;
  • Ambient temperature: -5/+40 °C;
  • Relative humidity 50% at 40 °C (not condensed).
