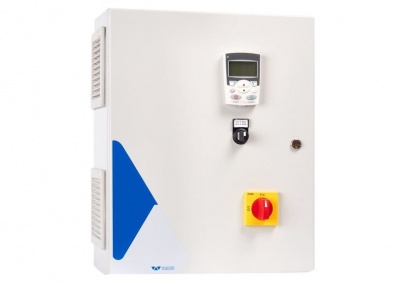

Vartek 1 Electronic Control Panel

CALL US: +44(0)1473 462046
Part Number
01120
Brand
Elentek
+
  • Control Panel for 1 motor
  • Frequency inverter
  • Overload electronic protection


Please contact us if you would like any technical advice or price and availability information.

Elentek
Information

VARTEK control panels with frequency inverter have plastic or metal cases with at least IP 55 protection.

Vartek 1 is the control panel ideal for the control of pumps performance, optimal for various applications, in particular, with industrial water pumps and booster pumps. It is able to work with rainwater lifting pumps, submersible pumps for irrigation, surface pumps and wastewater pumps.

This control panel is equipped with frequency inverters from 1 to 3 three-phase pumps with electronic overload control and is equipped with warning lights for current presence, thermal and motor running, a manual or automatic switch, a selector switch with door lock system.

External utilities and control units such as pressure switches and floats are connected trough a terminal block.

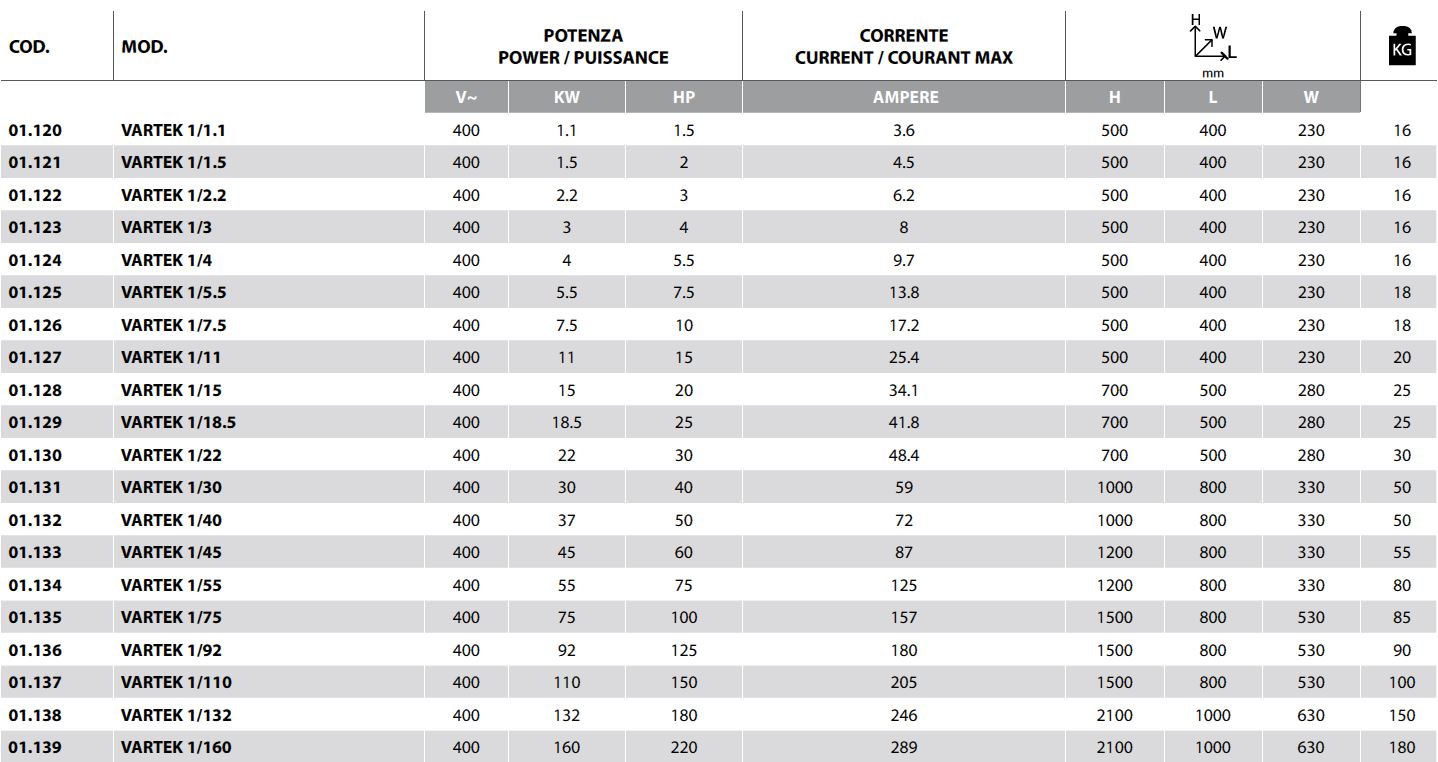

Technical

General features

  • Power supply 3 ~ 50/60 Hz 400V ±10% - output 3~400V;
  • Power supply 3 ~ 50/60 Hz 400V ±10% - output 3~230V;
  • Power supply 1 ~ 50/60 Hz 400V ±10% - output 3~230V;
  • Auxiliaries contacts and circuits in low voltage;
  • Normally open contact for start with selector in “Manual” position;
  • Normally open contact for minimum level/pressure contact;
  • Analog input 4-20mA (0-10V on request);
  • Selector for Auto-Off-Manual operation (MANUAL stable);
  • Electronic frequency inverter with multifunctions display LCD, “pid” regulation and connection for RS232/485;
  • Auxiliaries and motor protection fuses;
  • Main switch interlocking door;
  • Forced ventilation kit;
  • Steel enclosure, IP54;
  • Ambient temperature: -5/+40 °C;
  • Relative humidity 50% at 40 °C (not condensed).
