VL 9 - 5" Submersible Pump E-tech Franklin Electric

VL9 5" In-line Pumps deliver efficiency and superior performance for a wide variety of demanding applications.

Features

• Full stainless steel compact and solid structure
• Impellers and diffusers are made of stainless steel in order to achieve durability, superior efficiency and the highest performances
• Double mechanical seal separated by an oil chamber for maximum motor protection
• Plug-in type power cable and level control (floater) for easy replacement
• External capacitor easily accessible (single-phase only)
• Extremely silent pump thanks to the inside motor, cooled by the pumped liquid itself
• Pump fitted with flanged connections to allow for easy installation in narrow spaces or, more simply, in line with the pipeline

Specifications

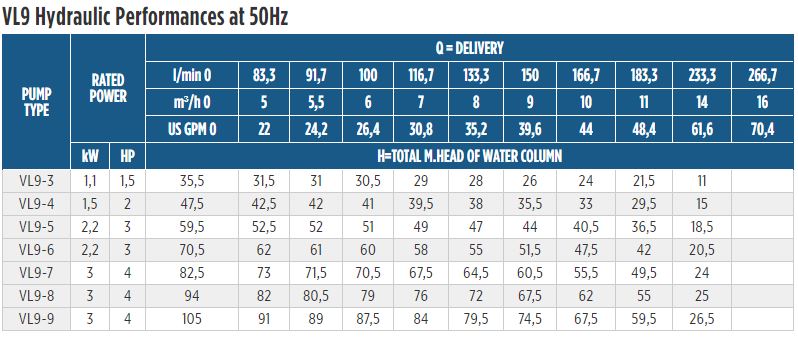

• Capacities: up to 14 m³/h at 50Hz; up to 16 m³/h at 60Hz
• Head: up to 104m at 50Hz; up to 115m at 60Hz

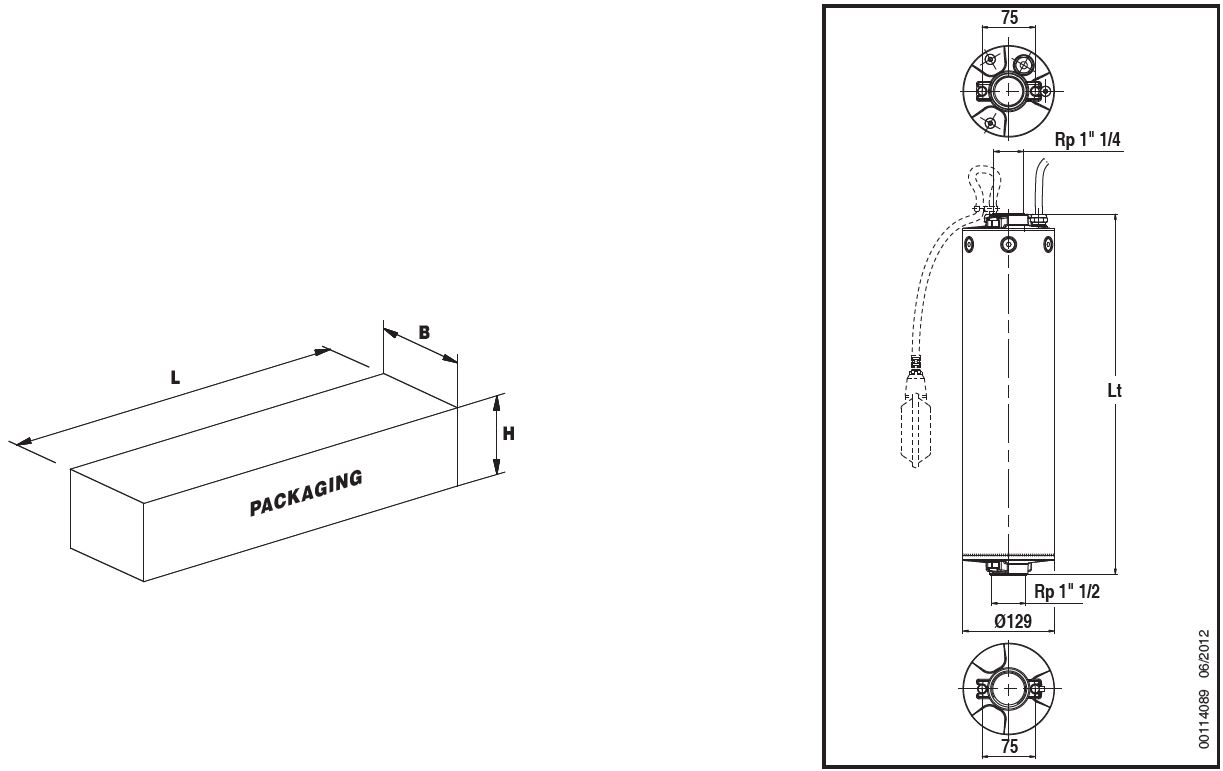

• Connections: Rp threaded for inlet and outlet
• Maximum working pressure: 15 Bar
• Maximum immersion depth: 20 m
• Liquid temperature range from -5°C to +40°C
• The hydraulic characteristics are guaranteed, according to ISO standard 9906:2012, grade 3B
• Power cable: 1,5m cable type H07RN-F is supplied with standard version
• Continuous operating either in vertical or horizontal position

• Pressure boosting
• Water distribution
• Water supply from wells or first collecting tanks
• Rainwater collection
• Wash down unit
• Irrigation / Gardening / Sprinklers
• Fountains and water games
• Specific applications to cape problems of noise
• Specific applications to cape problems of space-saving
