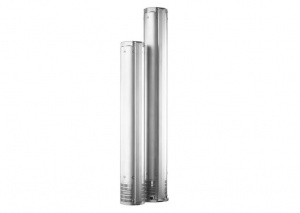

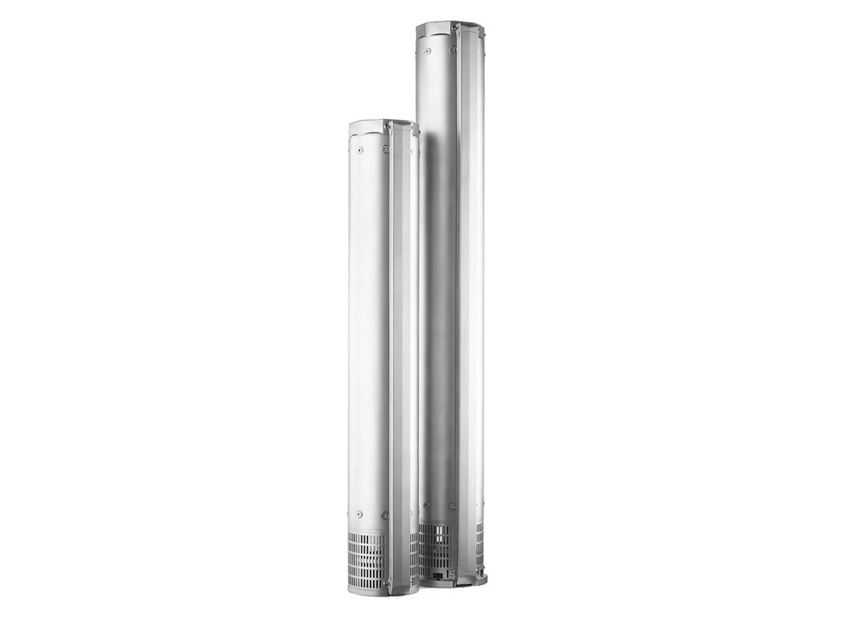

VS 78 - 8" Submersible Pump E-tech Franklin Electric

Features

• Stainless steel components for durability and robustness, guaranteeing longevity and trouble-free operation. Many design technical features make this pump range very compact and extremely reliable, to ensure applications in the most complex and severe conditions
• External stainless steel sleeve to improve stiffness and assure permanent alignment of all the components
• Motor adapter and discharge head may be removed without disturbing the impeller / diffuser stack
• Built-in check valve and over size pump shaft
• Easy maintenance without the need of special tools

Specifications

• Flow: up to 120 m³/h at 50 Hz
• Head: up to 500m (50 bar) at 50 Hz
• Maximum allowable amount of sand 100 g/m³
• Water temperature:
• Minimum: -5 °C
• Maximum: +60 °C for all versions
• Rotation: counter clockwise when looking into the discharge
• Pump can work continuously in vertical or horizontal position
• Motor adapter in compliance with NEMA standard
• Motors: see section Submersible Motors

Available on request

• Pump material:
• 316 Stainless steel (N) version (DIN/EN 1.4401)
• 904L (R) version (DIN/EN 1.4539)
• See specified material variant in materials/fluids compatibility table on page 50 in the Product Catalog
• Double cable guard
• Discharge head:
• Rp 4” for I and N versions
• Rp 6” for R version

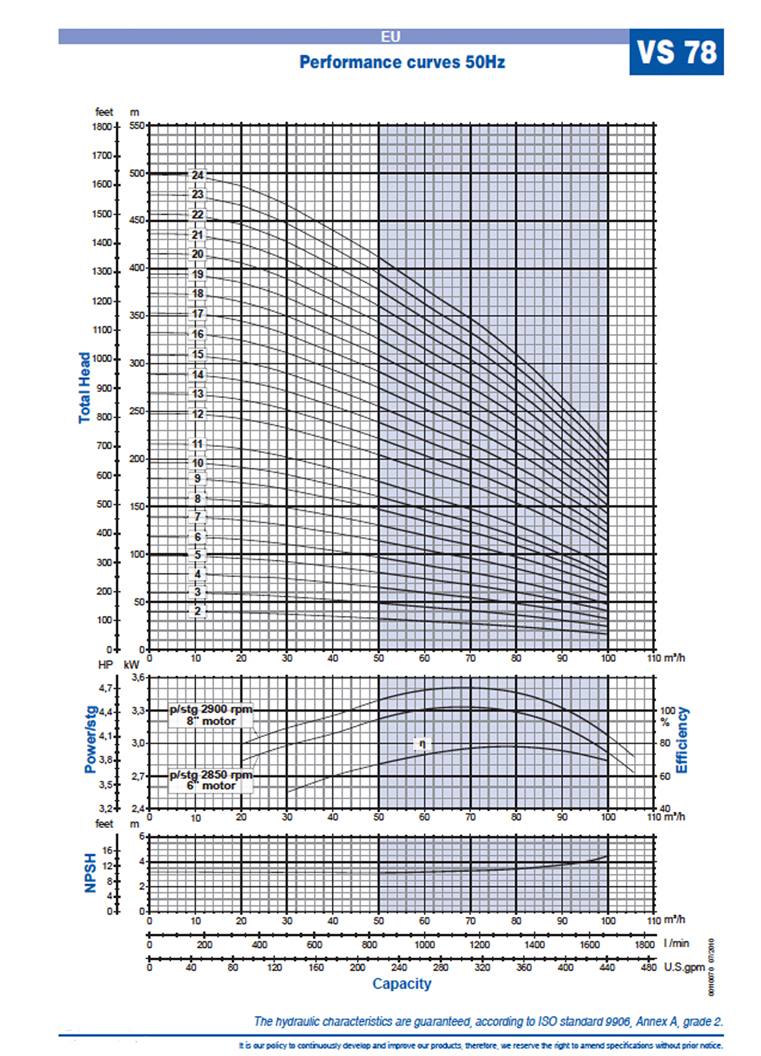

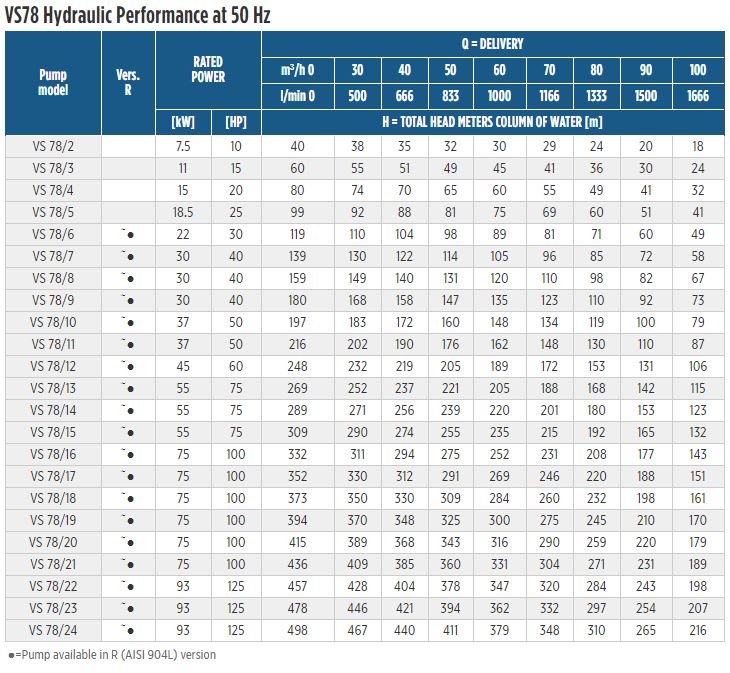

Performance Tables

Applications

• Municipal water works
• Water distribution and pressure boosting
• Irrigation and sprinkler systems, water treatment plants, filtration and reverse osmosis
• Industrial cooling and processing
• Mining industry, drainage and dewatering
• Fountains
• Fire-fighting equipment
• Stainless steel components for durability and robustness, to increase run-time and trouble-free operation. Many design technical features make this pump range very compact and extremely reliable
• Three-dimensional twisted blades of the impeller and the diffuser design to enhance efficiency and to reduce energy consumption
• External stainless steel sleeve to improve stiffness and assure permanent alignment of all the components
• Motor adapter and discharge head may be removed without disturbing the impeller/diffuser stack
• Built in check valve and over size pump shaft
• Very compact and extremely reliable to resist to the most complex and severe conditions
• Easy maintenance without the need of special tools

SPECIFICATIONS

• Capacities up to 150m³/h at 60Hz
• 50 Bar (500 m) at 60Hz
• Maximum allowable amount of sand 100 gr/m³
• Water temperature range: from -5ºC to 60ºC
• Rotation: counter clockwise when looking into the discharge
• Motor adapter in compliance with NEMA standard
• Pump can work continuously ion vertical or horizontal position
• Motors: See our motors section

AVAILABLE OPTIONS

• 316 stainless steel (N) version (DIN/EN 1.4401)
• Double cable guard
• NPT 4" outlet adapter
• NPT 5" outlet adapter
