VSC 204 - 10" Submersible Pump E-tech Franklin Electric

VSC 204 - 10'' Submersible Pump E-tech Franklin Electric
  Zoom
 VSC 204 - 10'' Submersible Pump E-tech Franklin ElectricVSC 204 - 10'' Submersible Pump E-tech Franklin Electric
Our Price:  CALL US: +44(0)1473 462046(Exc. 20% VAT)
+
Pump:

Part Number:  VSC204/2
Brand:  Franklin Electric E-tech
Pump Size:  10" Pump
Max Flow:  228m3/hr
Max Head:  542m
Series:  VSC 204

Franklin Electric E-tech


E-Tech VSC Series 10" Submersible Well Pumps

Max Flow 228m3/h Max Head 542m

Features

  • 10": VSC 204 - 264 - 304
  • Cast Stainless Steel impellers and diffusers for high corrosion and abrasion resistance
  • Robust, compact and reliable design
  • Built-in check valve to protect the pump against water hammer
  • The hydraulic design is such to enhance the overall efficiency thus reducing energy consumption and making the pumping systems more cost effective

Specification

  • Flow:
  • 10": up to 228 m³/h at 50 Hz
  • Head:
  • 10": up to 542 m at 50 Hz
  • Maximum allowable amount of sand: 100 g/m³
  • Water temperature: from -5 °C to +60 °C
  • Rotation: counter clockwise when looking into the discharge
  • Operation in vertical or horizontal position
  • The hydraulic characteristics are guaranteed, according to ISO standard 9906:2012, grade 3B

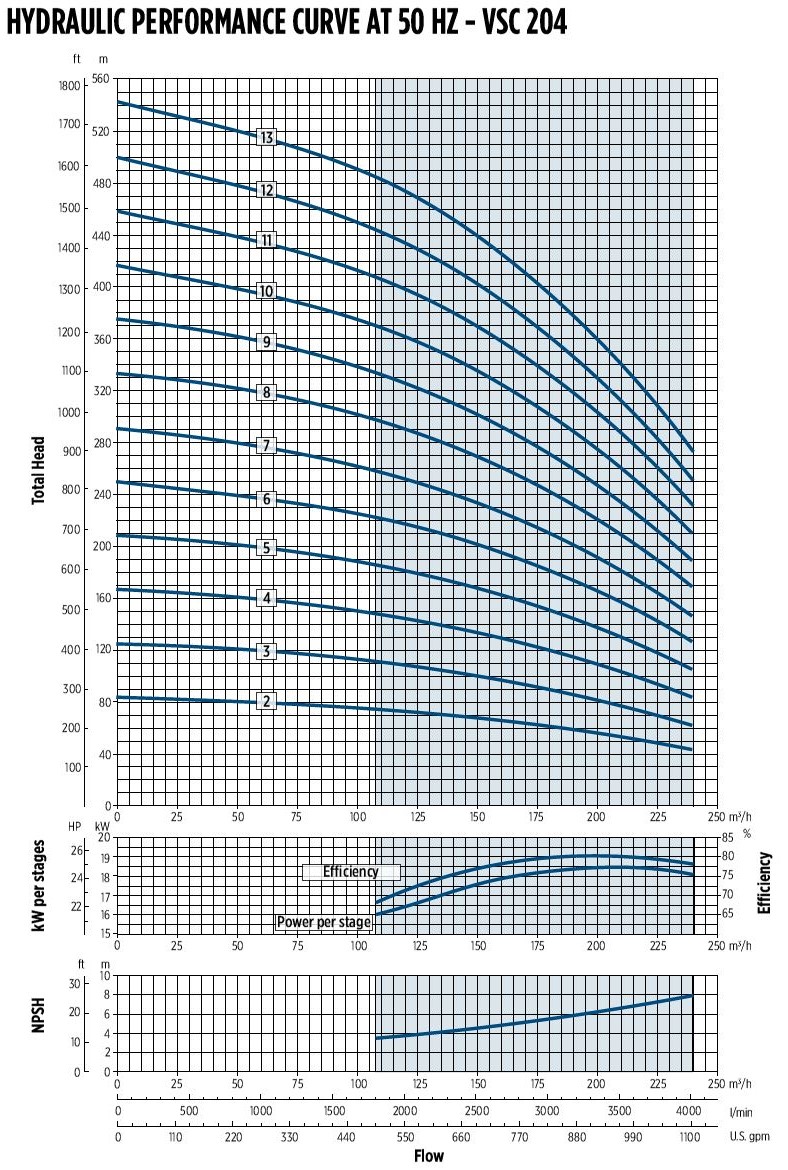

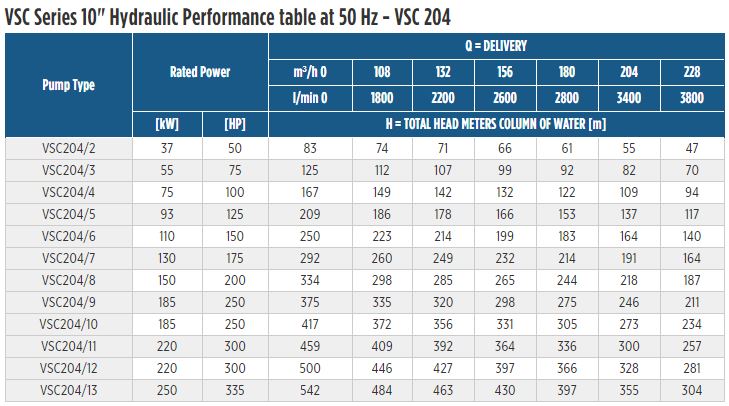

Performance Table

Options

  • YΔ version with second cable guard
  • 316 SS & Duplex version
  • Discharge:
  • 8": Rp5"
  • 10": counter flange (Rp6" as of Q4/2018)
  • 10" counter flange (order no. 14262101)
  • Other flows
