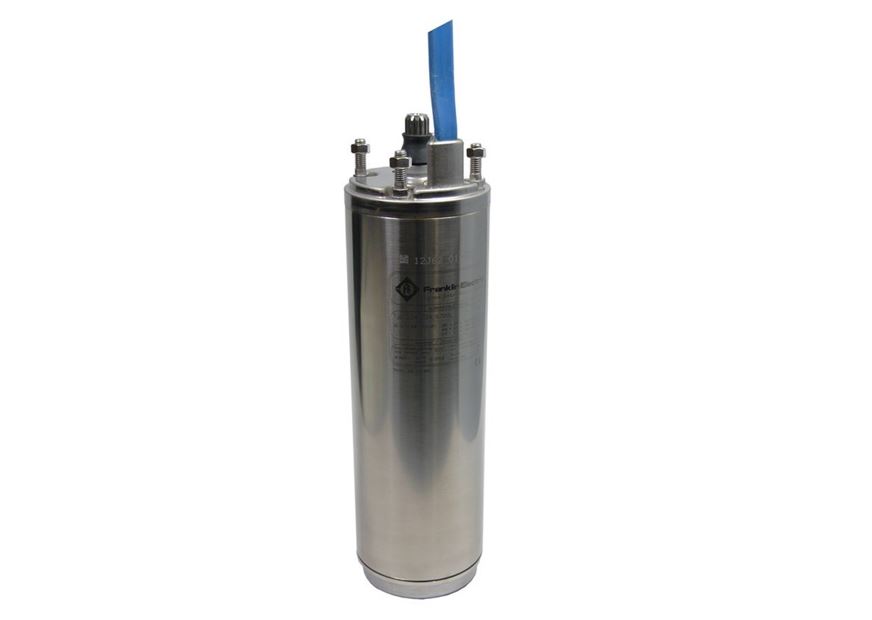

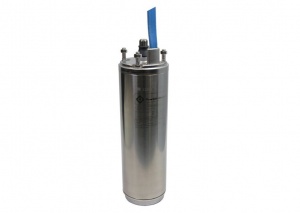

4 inch Three Phase Motor Franklin Electric

CALL US: +44(0)1473 462046
Part Number
ENG4005T2305 / 2347526700L
Brand
Franklin Electric
Phase
Three Phase
+

Key Features:

  • Franklin Electric
  • 3 phase motor range: 0,37 – 3kW
  • 4" NEMA flange
  • Degree of protection: IP68
  • Rated ambient temperature: 30°C
  • Voltage tolerance 50Hz from nominal: -10% / +6%
  • Voltage tolerance 60Hz from nominal: ±10%
  • Protection requirements: EN 61947-4-1

Click here for 4kW and above motors

Franklin Electric
Information

Franklin Electric 4" encapsulated submersible motors, built in ISO 9001 certified facilities for outstanding performance in 4" or larger water wells.
The 3-phase motor offers maximum life and highest efficiency under various load conditions.

It should ideally be combined to the Franklin Electric SubStart/SubTronic3P control boxes for maximum system performance, protection and warranty.

Standard Motor Design Specifications:

  • Hermetically sealed stator with 316SS shell. Anti track, self healing stator resin prevents motor burn out, mechanically supports the winding and provides fast heat dissipation.
  • High efficiency electrical design (low operation cost, cool running winding)
  • Removable water bloc lead connector
  • No-wear, water lubricated radial and thrust bearings for 100 % maintenance free operation
  • Non-contaminating FES 93 filling liquid
  • Various agency approvals for use in drinking water

Brackish Water Version Specifications:

  • For use in water that has more salinity than fresh water, but not as much as seawater.
  • The novel Franklin Electric Brackish Water Motor proposes a cost-effective solution wherever standard 4" motors are not giving sufficient service life.

Pollution Recovery Motor Version Specifications:

  • Fluorelastomere (Viton®) rubber parts
  • Special Polyuretane (PUR) lead assemblies
  • 304 graded stainless steel as standard, 316SS as an option

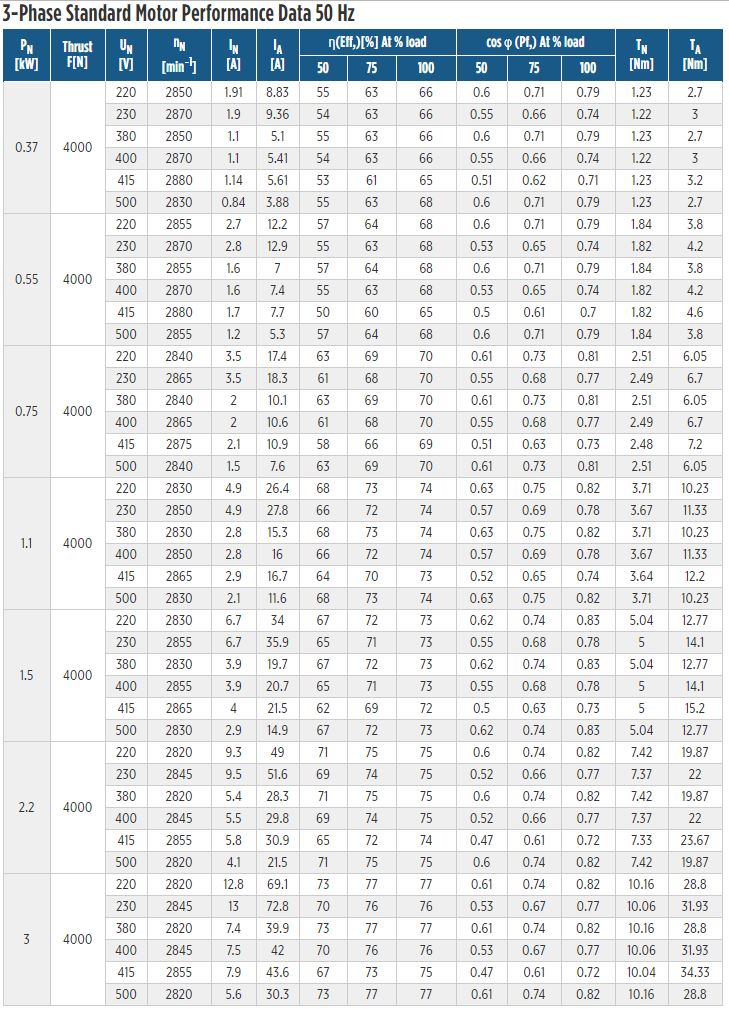

Technical specification:

  • 3-phase motor range: 0.37 - 3.0 kW
  • 4" NEMA flange
  • Rotation: reversible
  • Degree of protection: IP68
  • Insulation: Cl.B
  • Rated ambient temperature: 30 °C
  • Required cooling flow: min. 0.08 m/s
  • Max. starts/hr.: 20, equally distributed
  • Mounting: vertical to horizontal, shaft upwards
  • Voltage tolerance 50 Hz from nominal: -10 % / +6 %
  • Voltage tolerance 60 Hz from nominal: ±10 %
  • Protection requirements: EN 60947-4-1

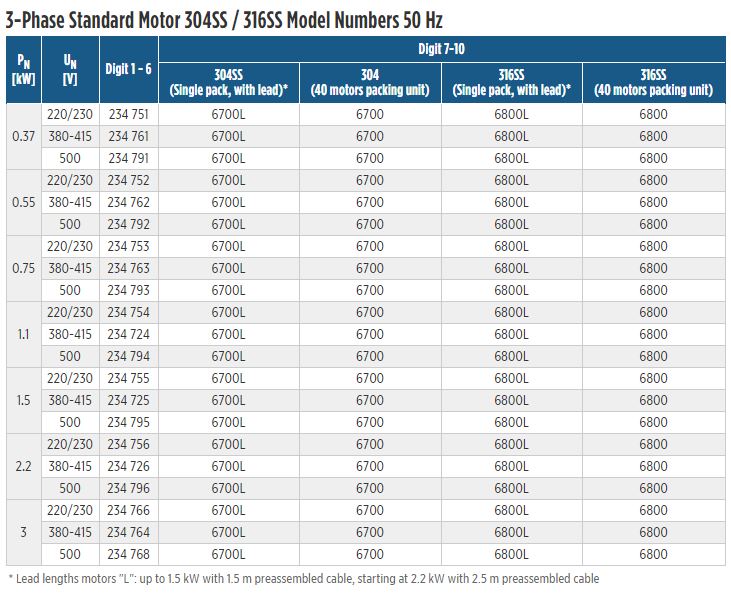

Options:

  • Motors in full 316SS
  • Motors with factory-installed lead in single packing
  • Built-in lightning arrestor
  • Various cable lengths
  • Special voltages on request
  • Alternative material executions
Technical

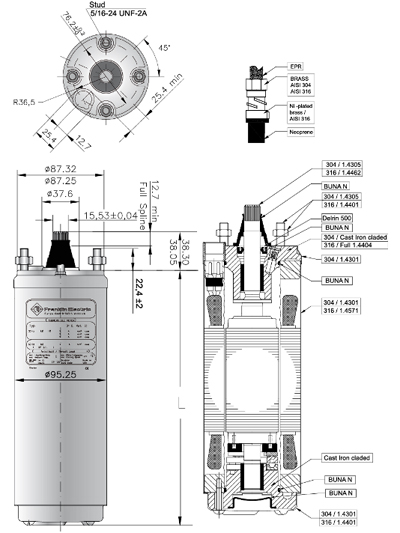

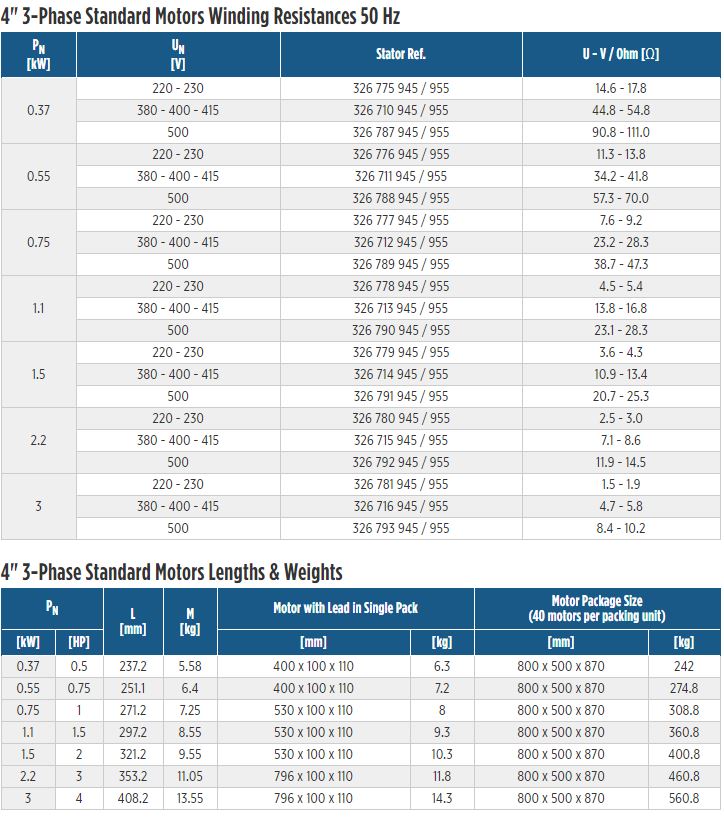

Dimensions and Weights:
