VSC 420A - 12" Submersible Pump E-tech Franklin Electric

CALL US: +44(0)1473 462046
Part Number
VSC420A/1
Brand
Franklin Electric E-tech
Pump Size
12" Pump
Series Max Flow
540m3/hr
Series Max Head
360m
Series
VSC 420A
+

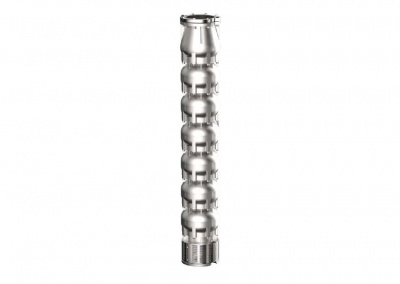

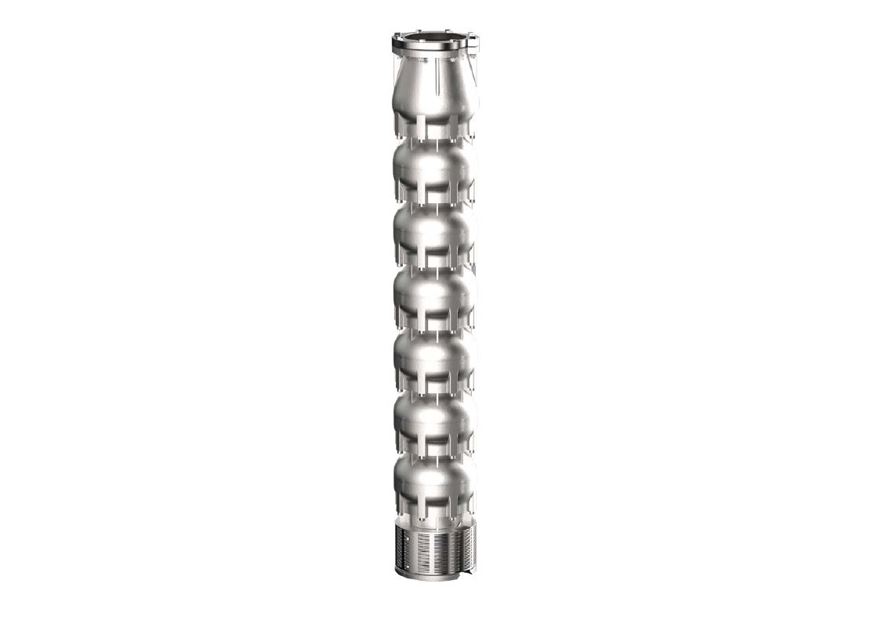

E-Tech VSC420A Series 12" Submersible Well Pumps

Max Flow 540m3/h Max Head 360m

NOTE: Motors are sold separately, please see our range of motors here.

Franklin Electric E-tech
Information

Features

  • 12": VSC 360 - 420 - 420A
  • Cast Stainless Steel impellers and diffusers for high corrosion and abrasion resistance
  • Robust, compact and reliable design
  • Built-in check valve to protect the pump against water hammer
  • The hydraulic design is such to enhance the overall efficiency thus reducing energy consumption and making the pumping systems more cost effective

Specification

  • Flow: 12": up to 540 m³/h at 50 Hz
  • Head: 12": up to 337 m at 50 Hz
  • Maximum allowable amount of sand: 100 g/m³
  • Water temperature: from -5 °C to +60 °C
  • Rotation: counter clockwise when looking into the discharge
  • Operation in vertical or horizontal position
  • The hydraulic characteristics are guaranteed, according to ISO standard 9906:2012, grade 3B

Applications

  • Municipal water works
  • Water distribution and pressure boosting
  • Irrigation and sprinkler systems, water treatment plants, filtration and reverse osmosis
  • Industrial cooling and processing
  • Mining industry, drainage and dewatering
  • Fire-fighting equipment
  • Fountains
  • Petrochemistry, Offshore
  • General Industry

Options

  • YΔ version with second cable guard
  • Counter flange
Technical
