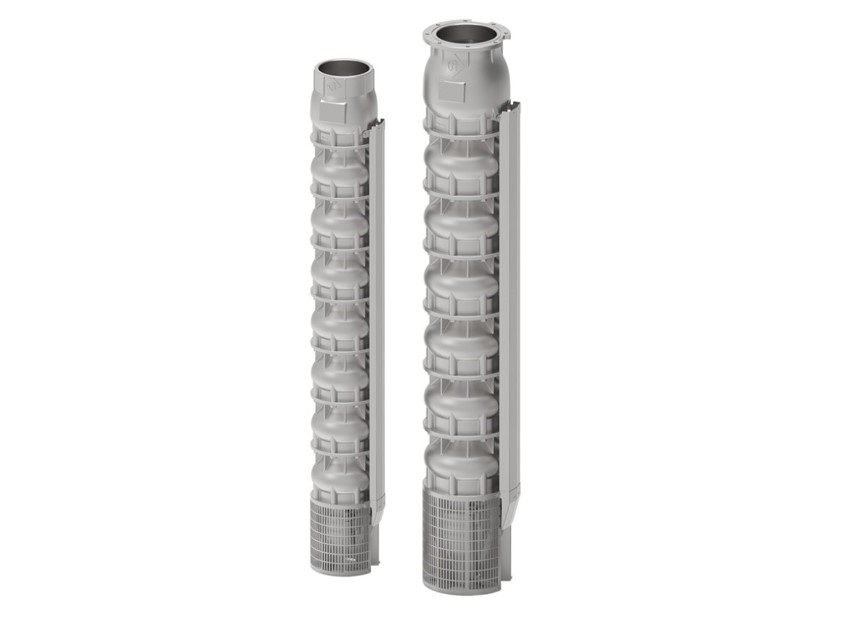

VSI 254 10" Submersible Pump E-tech Franklin Electric

CALL US: +44(0)1473 462046
Part Number
VSI254/01/1C / 97B02501035B00
Brand
Franklin Electric E-tech
Pump Size
10" Pump
Series Max Flow
350m3/h
Series Max Head
615m
Series
VSI 254
+

E-Tech VSI184 Series 10" Submersible Well Pumps

Max Flow 250m3/h Max Head 664m

NOTE: Motors are sold separately, please see our range of motors here.

Franklin Electric E-tech
Information

HIGH EFFICIENCY AND CORROSION RESISTANCE

  • High efficiency (up to 83,5 %)
  • Diffusers and impellers made of investment casting stainless steel
  • Balanced impellers
  • Spring loaded, robust design check valve with two bearing bushings and single piece disk
  • Vesconite Hilube® top bearing bush (closed on top)
  • PTFE+Graphite up-thrust bearing
  • Shrink fit coupling
  • Suitable to pump drinking water

APPLICATIONS

  • Municipal water works
  • Drainage and dewatering
  • General industry
  • Agriculture, Irrigation
  • Mining industry
  • Offshore

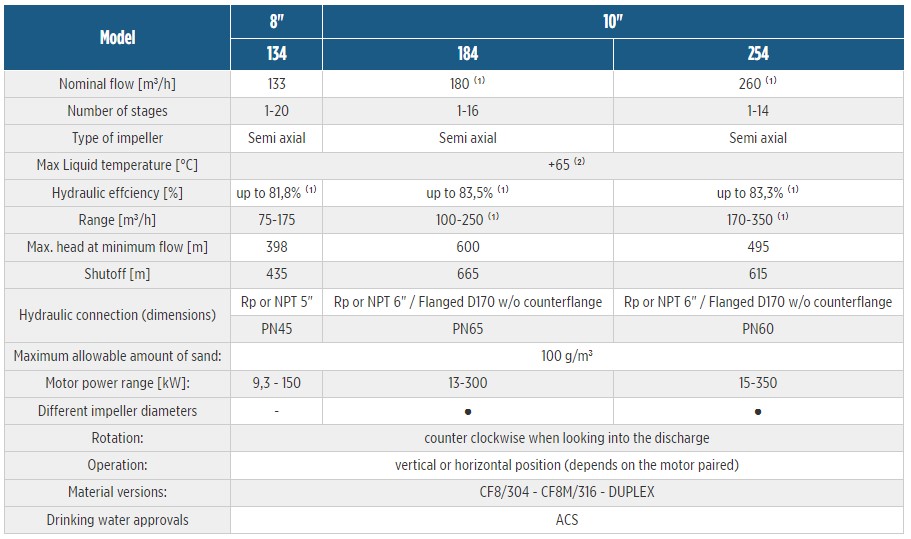

GENERAL FEATURES

⁽¹⁾ Depends on the selected model.

⁽²⁾ Referred to pump. For electricpump see the data table of motor.

“-” = not available

= available

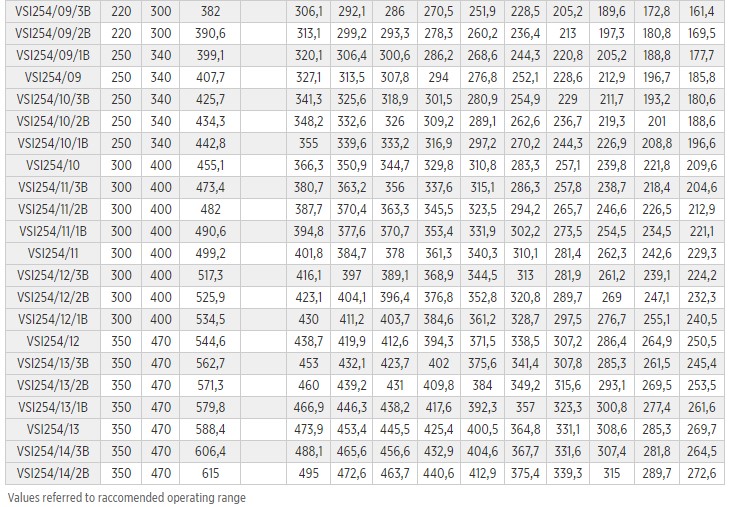

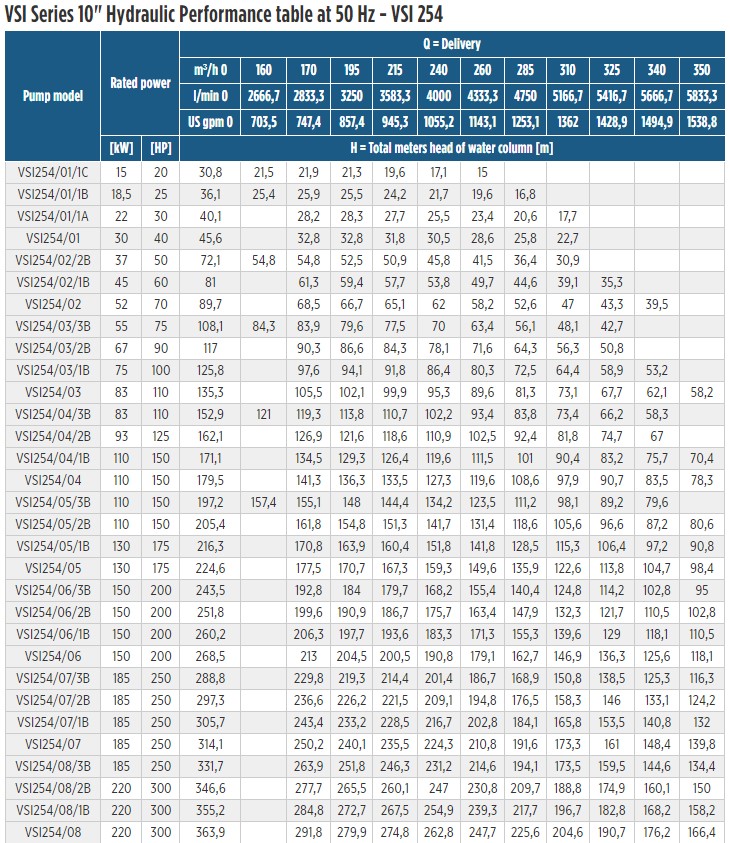

Technical

Values referred to recommended operating range.

Downloads
