VSY 15 - 6" Submersible Pump E-tech Franklin Electric

VSY 15 - 6'' Submersible Pump E-tech Franklin Electric
  Zoom
Our Price:  CALL US: +44(0)1473 462046(Exc. 20% VAT)
+


Part Number:  VSY 15/06
Brand:  Franklin Electric E-tech
Pump Size  6" Pump
Series Max Flow  22m3/h
Series Max Head  377.5m
Series  VSY 15

Franklin Electric E-tech

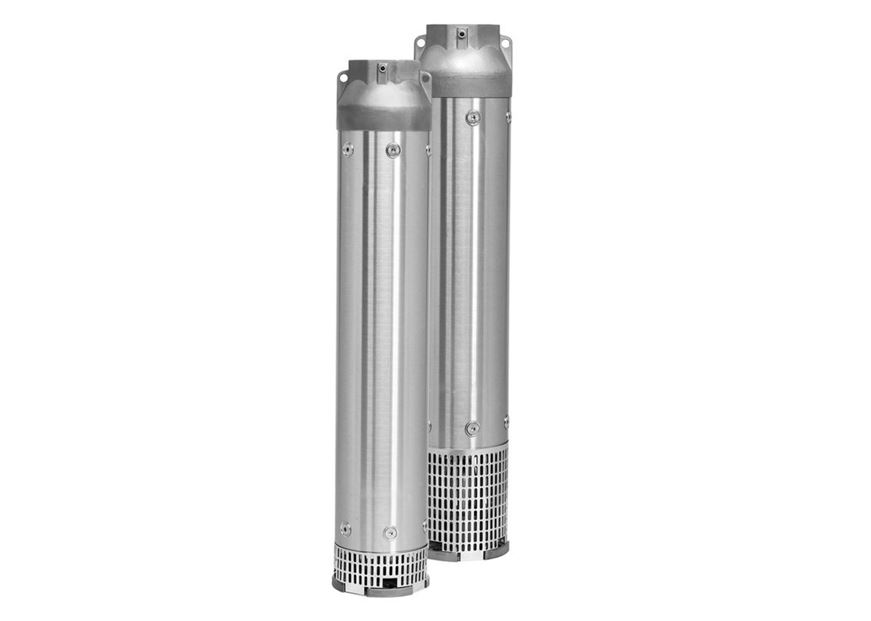

E-Tech VSY15 Series 6" Submersible Well Pumps

Max Flow 22m3/hr Max Head 377.5m

NOTE: Motors are sold separately, please see our range of motors here.

Features

  • Fabricated Noryl® (Registered Trademark of G.E.) impellers and diffusers
  • Compact, reliable and suited to operate in horizontal position
  • Buil-in check valve to protect the pump against water hammer risk
  • External stainless steel sleeve to improve stiffness and assure permanent alignment of all components
  • The hydraulic design is such to enhance the overall efficiency thus reducing energy consumption and making the pump systems more cost effective

Specifications

  • Flow:
  • up to 32m³/h at 50 Hz
  • up to 37 m³/h at 60 Hz
  • Head:
  • up to 346 m at 50 Hz
  • up to 360 m at 60 Hz
  • Maximum allowable amount of sand: 100 g/m³
  • Water temperature
  • Minimum: 0 °C
  • Maximum: +40 °C
  • Rotation: counter clockwise when looking into the discharge
  • Pump can work continuously in vertical or horizontal position
  • Motor adapter in compliance with NEMA Standard
  • Motors: see section Submersible Motors

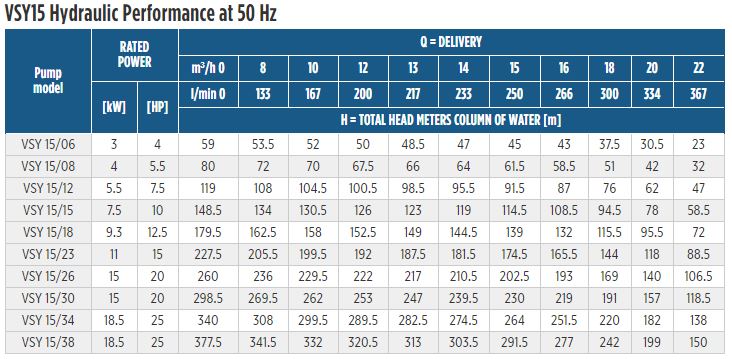

Performance Tables at 50Hz




Please state part number and specifications where applicable.
 *
 *
 *
 *
 *
 *
