VS 10 - 4" Submersible Pump E-tech Franklin Electric

VS 10 - 4'' Submersible Pump E-tech Franklin Electric
  Zoom
Our Price:  £248.00(Exc. 20% VAT)
+


Part Number:  VS10/5 / 602120501060063
Brand:  Franklin Electric E-tech
Pump Size:  4" Pump
Series Max Flow:  17m3/h
Series Max Head:  194m
Series:  VS 10

Franklin Electric E-tech


E-Tech VS Series 4" Submersible Well Pumps

VS10

Outer Case: Stainless Steel, Diffusers: Techolopolymer, Impeller: Polycarbonate
Max Flow 17m3/hr   Max Head 194m

NOTE: Motors are sold separately, please see our range of motors here.

VS Series 4" Submersible borehole pumps Outer Case: Stainless Steel, Diffusers: Techolopolymer, Impeller: Polycarbonate Max Flow 17m3/hr   Max Head 194m

Performance Tables

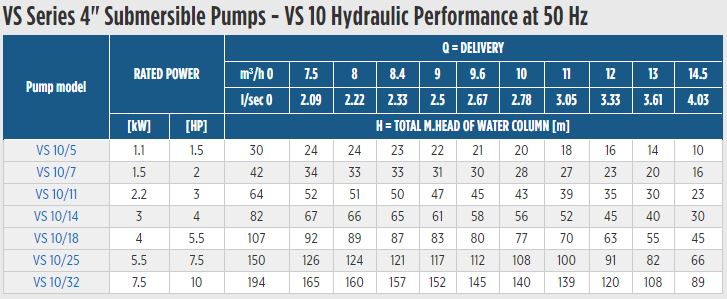

TABLE OF HYDRAULIC PERFORMANCES AT 50Hz

Franklin Electric VS 10 Performance Table

Applications

  • Municipal water works, fountains and waste water
  • Water distribution and pressure boosting
  • Irrigation and Sprinkler systems, water treatment plants, filtration and reverse osmosis
  • Industrial cooling and processing
  • Water supply to and from tanks, reservoir and wells
  • Turf and landscapes
  • Residential and farm wells and drainage

FEATURES

  • Compact, reliable and suited to operate in horizontal position
  • Built-in check valve to protect the pump against water hammer risk
  • Floating impellers to grant a better performance and longer life for the pump against abrasion
  • The hydraulic design is such to enhance the overall efficiency thus reducing energy consumption and making the pumping systems more cost effective alignment of all the components making the pumping systems more cost effective

SPECIFICATIONS

  • Capacities up to 17 m3/h at 50Hz
  • Pumped liquid: chemically and mechanically non aggressive
  • Water temperature range: from 0ºC to 40ºC
  • Maximum allowable amount of sand 25 gr/m³, solid dimension max 2mm
  • Maximum pump diameter (including cable guard): 95mm
  • Outlet diameter: 1 ¼" VS1-2-4-6, 2" VS8-10-15
  • Rotation: counter clockwise when looking into the discharge
  • Motor adapter in compliance with NEMA standard
  • Pump can work continuously in vertical or horizontal position
  • Motors: see section submersible motors product overview

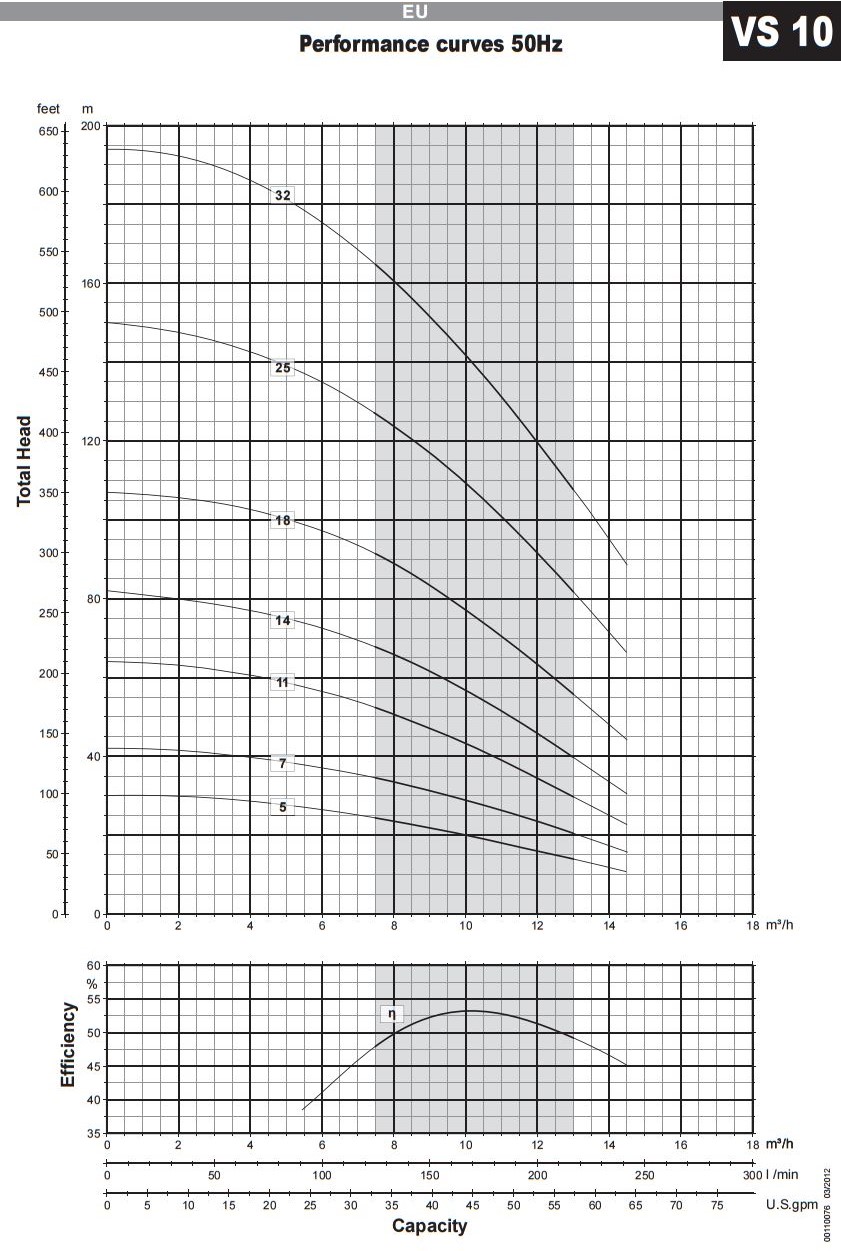

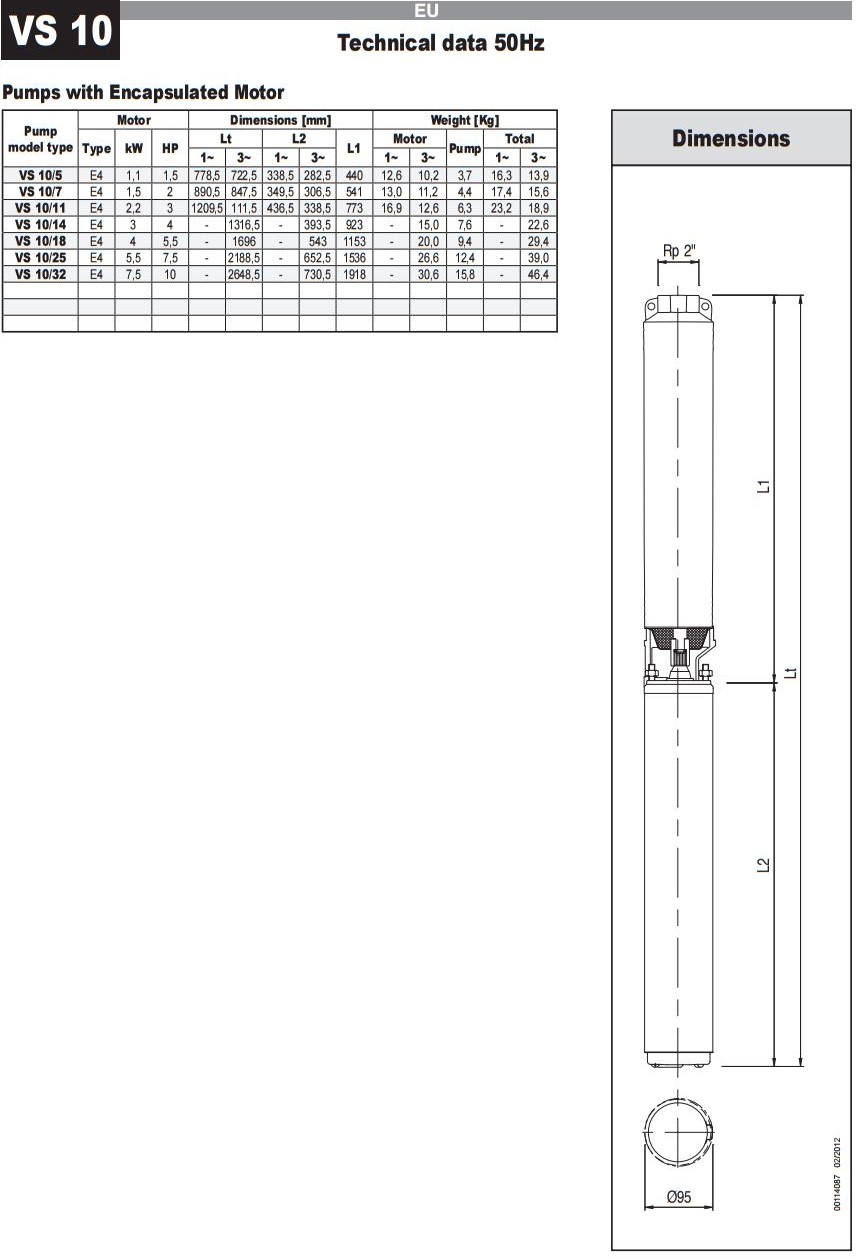

E-Tech VS 10 4 inch Pump Technical Data Curves

E-Tech VS 10 4 inch Pump Technical Data Curves
