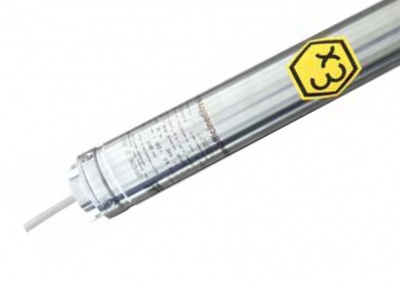

99 ID TREINCH EX Hydrocarbon Pump - MaxFlow 2.4m3hr

99 ID TREINCH EX Hydrocarbon Pump - MaxFlow 2.4m3hr
  Zoom
 99 ID TREINCH EX Hydrocarbon Pump - MaxFlow 2.4m3hr99 ID TREINCH EX Hydrocarbon Pump - MaxFlow 2.4m3hr
Our Price:  CALL US: +44(0)1473 462046(Exc. 20% VAT)
+


Part Number:  99 ID TREINCH EX 25-20-1p
Brand:  OFT


OFT Pumps     ATEX Logo      99 ID TREINCH EX ATEX Rated 3" Borehole Submersible Pumps with thermoplastic internals and Floating Impellers
Max Flow 2.4 m3/hr    Max Head 56 m


Raising from wells or tanks of water free from solid sediments, pumping of liquids contaminated and with traces of heavy metals, sampling of fluids in contaminated sites, hydraulic barriers.

The ATEX pumps in conformity with 2014/34/UE Directive can be installed in potentially explosive atmospheres according to the marking explained in the technical details.

Features

• Multistage centrifugal electric submersible pumps for 3” wells with suction from below: the hydraulic part is located under the motor cooled externally by the pumped liquid.
• External pump case, motor case, motor support and other components in AISI 316 stainless steel.
• Impellers and diffusers in special technopolymer.
• The check valve installed inside the electric pumps.
• Electric pumps produced directly with the meters of ID 4G1,5 electric cable required without electrical junctions.
• The pumps can not operate in dry conditions.
• Electric pumps submerged for at least 15 cm provided that the pumps have been preloaded.
• Temperature of the pumped liquid: max +40 °C.
• Maximum immersion depth: 20 m

Motor

• 2 poles asynchronous motor, 50 Hz, 2850 rpm.
• Class F insulation.
• IP68 protection.
• Working voltage: single-phase 230 V, three-phase 400 V.
• Oil filled electric motor

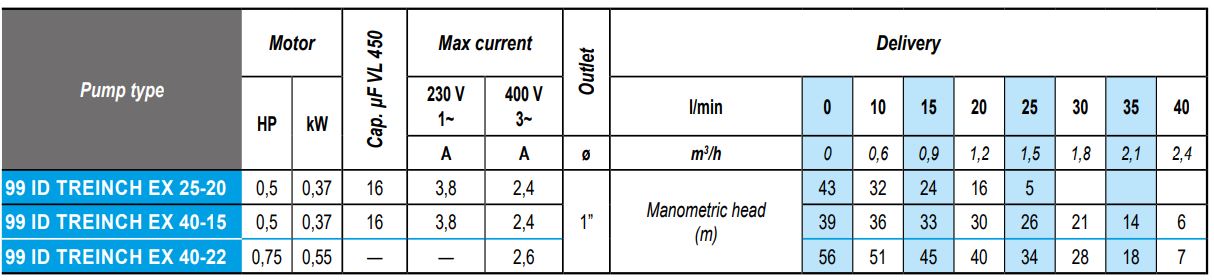

Performance Table

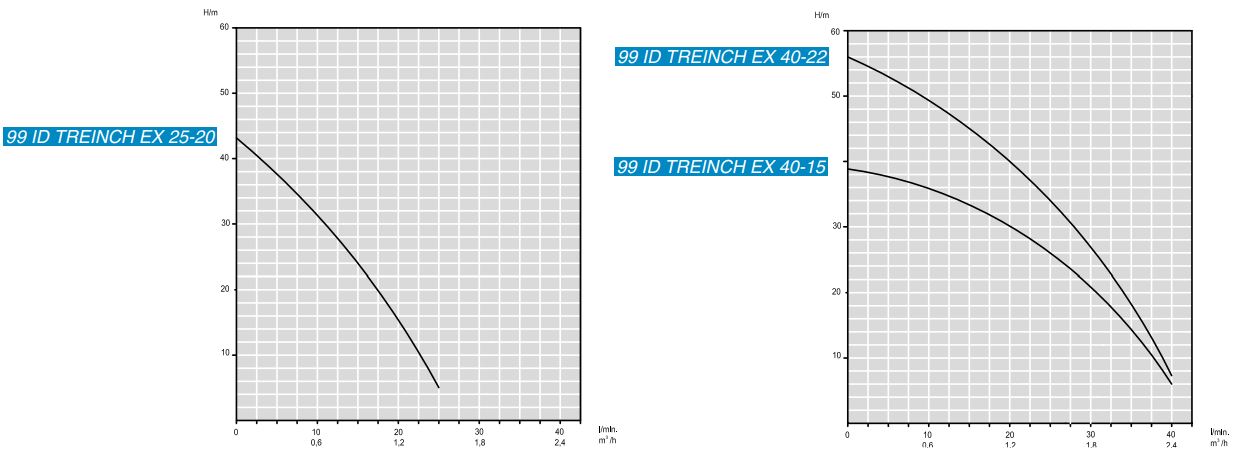

Performance Curves

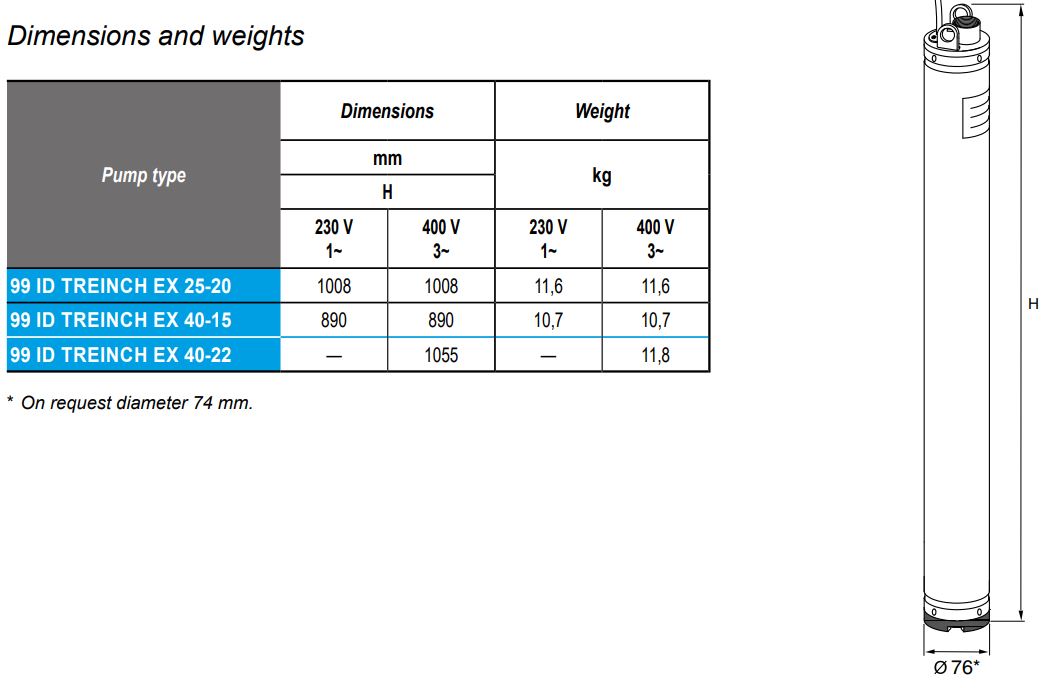

Dimensions and Weights




Please state part number and specifications where applicable.
 *
 *
 *
 *
 *
 *
